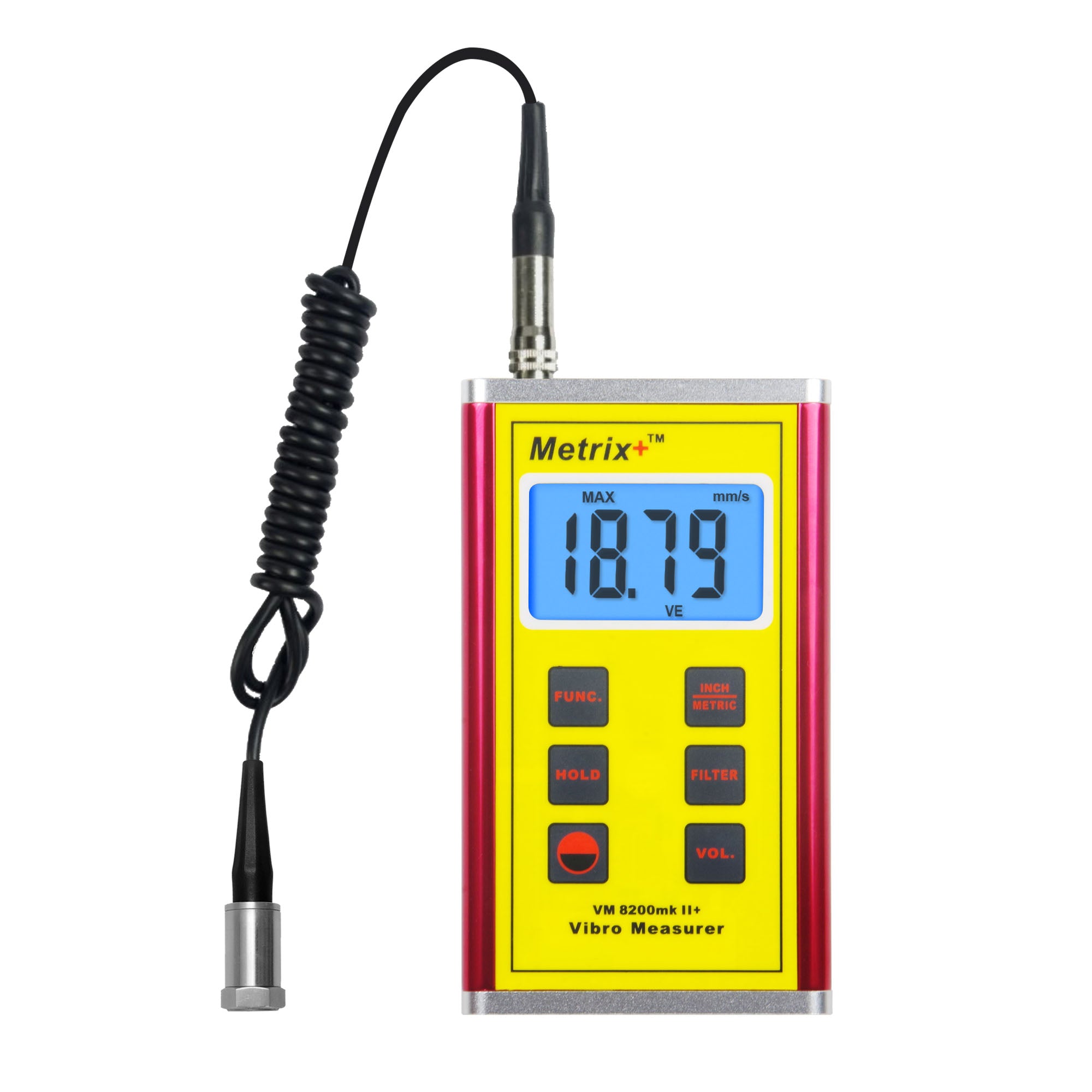

Metrix+ VM 8200mkII+ Vibration Meter Velocity Acceleration Displacement

(0)

Portable vibration meter for velocity, acceleration and displacement measurement on rotating machinery. Ideal for maintenance teams monitoring motors, pumps, fans and industrial equipment.

Features:

  • Individual high-quality accelerometer for accurate and repeatable measurement.
  • Used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
  • Acceleration, velocity and displacement measurements.
  • Sturdy metal body for rugged operation.
  • Wide frequency range in acceleration mode.
  • RPM and frequency measurements.
  • Backlit LCD display.
  • Type Vibration Meter
Rs. 31,860.00 incl. taxes
In stock
In stock
Ready to work out of the box!

All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!

Warranty and returns?

All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.

Got Questions? Feel free to get in touch.

Technical Specifications:

Model

Metrix+ VM 8200 mkII+

Display

4-digit backlit LCD

Transducer

Piezo electric accelerometer

Velocity

0.01 ~ 400.0 mm/s ; 0.000 ~ 16 inch/s

Acceleration

0.1 ~ 400.0 m/s2, 0.3 ~ 1312 ft/s2 equivalent peak

Displacement

0.001 ~ 4.000 mm equivalent peak-peak; 0.04 ~ 160.0 mil

 R P M

60 ~ 99,990 r/min

Frequency

1 ~ 20kHz

Frequency range for measuring

Acceleration

10Hz – 10kHz

Velocity

10Hz – 1kHz

Displacement

10Hz – 1kHz

Accuracy

+5% of reading

APO

Enabled by user

Max hold

Peak Hold

Analog output

AC output 0 ~ 2.0V peak full scale(load resistance above 10k)

Power supply

1.5V x 2 AA battery

Operating condition

Temperature : 0-50oC ; Humidity : below 95% RH

Dimensions and weight

130 x 70 x 30mm ; 305g

Standard accessories

Powerful rare earth magnet, measurement probe, stinger probe(cone), stinger probe(ball), manual, batteries, carrying case

Optional accessories

PC interface



Applications:

Digital vibration meters are crucial for predictive and preventive maintenance in industrial settings, used to monitor and diagnose the health of rotating machinery like pumps, motors, and fans by measuring vibration intensity and frequency. They help technicians detect early signs of mechanical faults such as imbalance, misalignment, and bearing wear, preventing catastrophic equipment failure and costly downtime.


Measuring Principle:

Digital vibration meters measure machine health by using an internal or external piezoelectric accelerometer sensor that converts mechanical motion into a proportional electrical charge or voltage signal. This signal is then digitally processed to quantify key parameters like velocity, displacement, and acceleration (RMS and Peak) across specific frequency ranges, diagnosing issues like imbalance and misalignment.
