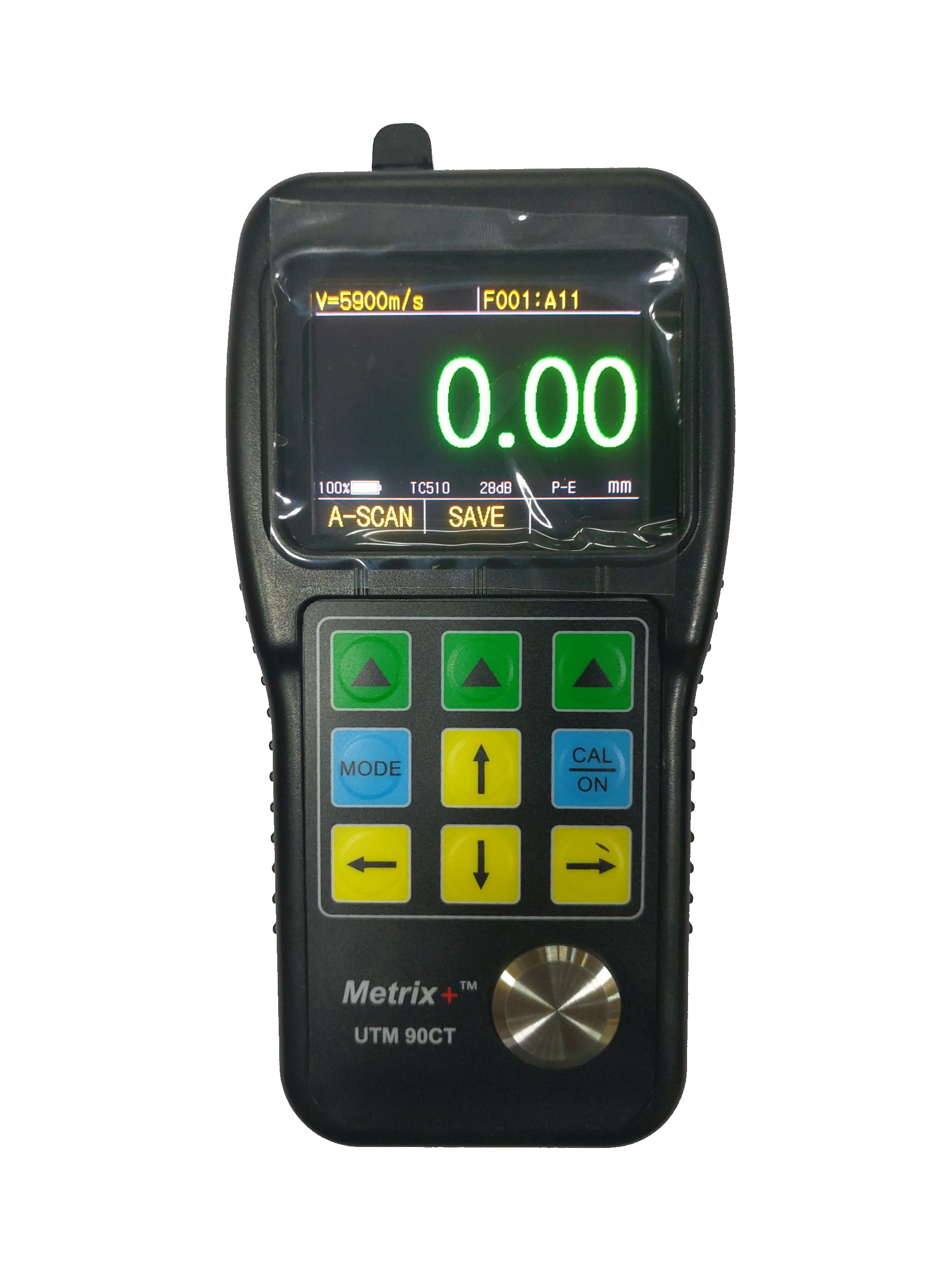

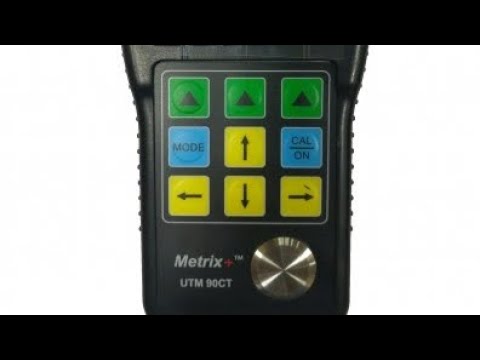

Metrix+ UTM 90CT Ultrasonic Thickness Gauge with Through Coating Mode

(0)

Advanced ultrasonic thickness gauge with pulse-echo, echo-echo and through-coating capability for corrosion monitoring without removing paint in many applications. Suitable for tanks, pipes, pressure parts and maintenance inspection.

Features:

  • Multi-mode with Pulse-Echo for thickness and Echo-Echo for through coating measurements.
  • A scan & B scan functions for in depth inspection of material properties.
  • Difference and reduction rate display.
  • Max, min and current values can be displayed simultaneously.
  • Selectable update rate.
  • Data storage and recall.
  • Type Ultrasonic Thickness Gauges
Delivered against order

We are supplying this product against email order only, please contact us with your query for pricing. If the product is not in stock, the normal lead time is 4-6 weeks after order confirmation.

Ready to work out of the box!

All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!

Warranty and returns?

All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.

Technical Specifications:

Measuring range as per #45 Steel
Model Metrix+ UTM 90CT
Display 2.4” color OLED with 320 x 240 pixel and contrast of 10000:1
Measuring range Pulse-Echo Mode: 1.2 ~ 200mm(in Steel)
Echo-Echo Mode: 3 ~ 50mm Through-Coating measurement
Units mm/ inch
Resolution Selectable:  0.01mm/inch, 0.1mm/inch
Sound Velocity 500 ~ 9999 m/s
Display modes Normal, min/max, difference/ reduction rate(%), A-scan, B-scan
Rectify mode RF+, RF-, HALF+, HALF-, FULL
V-path correction Automatic
Update rate Selectable 4Hz, 8Hz, 16Hz
Alarm setting Min and max alarms with dynamic waveform color change on alarm
Power 2 x AA batteries
Operating time approx. 40hrs
Power off Selectable as always ON, or Auto OFF on 5/ 10/ 20 mins of inactivity
Operating temperature -10°C ~ 50°C
Dimensions 156 x 75 x 38 mm (H x L x B), weight 270g (incl. batteries)
Standard accessories Main unit, probe, couplant, manual, batteries, carry case



Applications:

Applicable to measure the thickness of many materials, like steel, cast iron, aluminium, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other ultrasonic wave well-conductive materials.Having through coating measurement capability, it can used to measure concrete coating thickness  It is widely used in almost all kinds of industries.


Measuring Principle:

Ultrasonic thickness gauge determines the sample thickness by measuring the amount of time it takes for a sound pulse, generated by an ultrasonic transducer, to travel through a test piece and reflect from the inside surface or a far wall.
