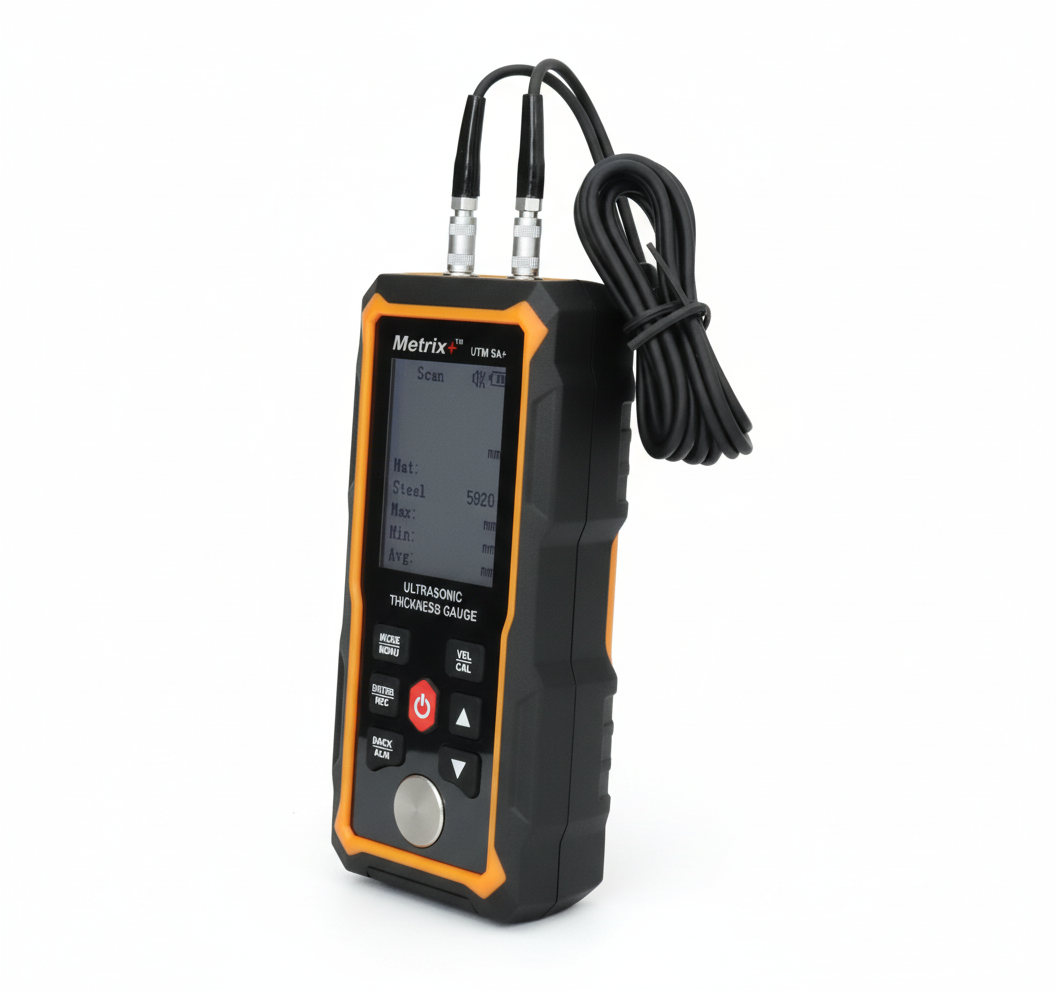

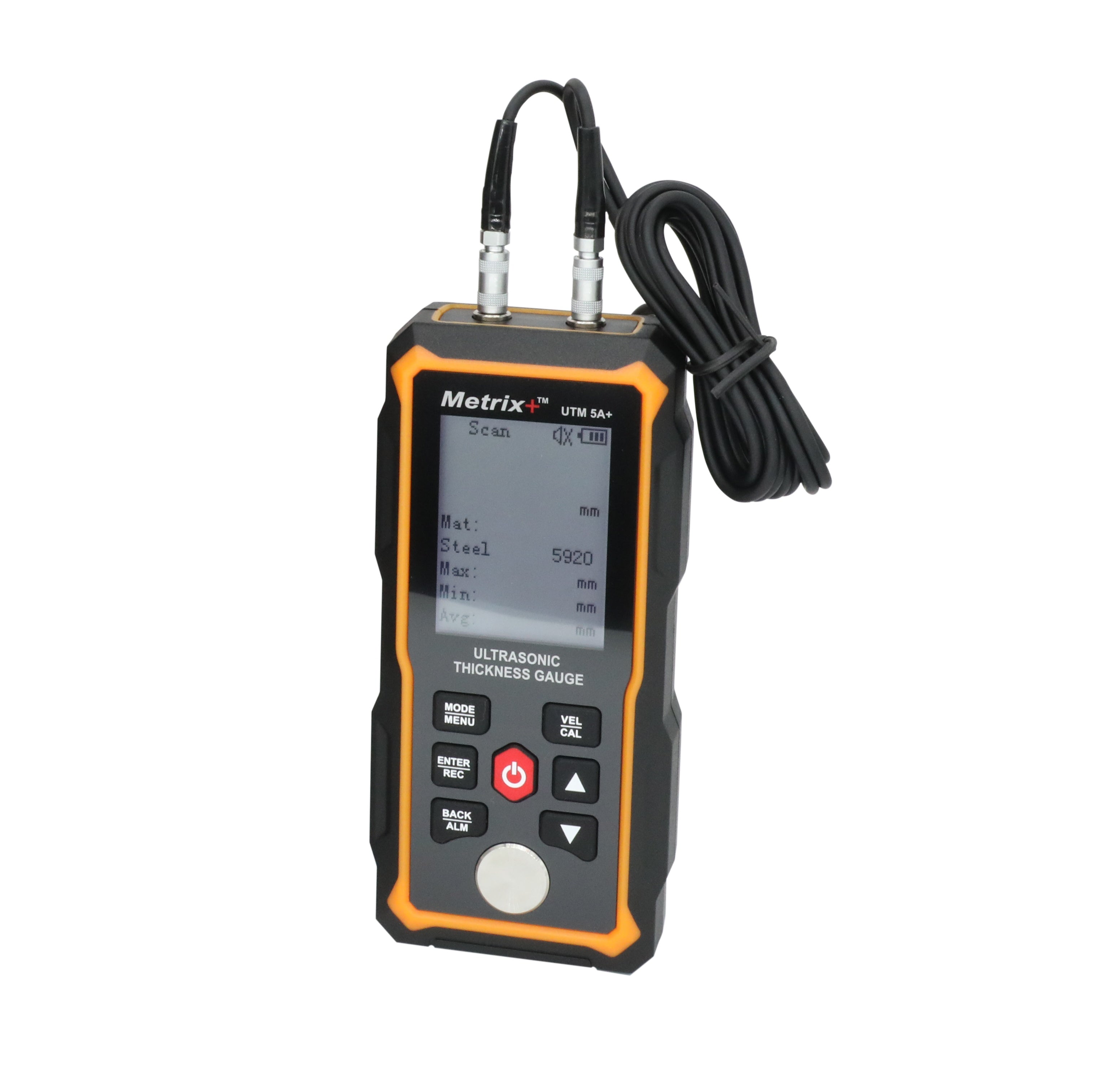

Metrix+ UTM 5A+ Ultrasonic Thickness Gauge 1-300mm Steel

(0)

Ultrasonic thickness gauge with 1-300mm steel range, adjustable sound velocity and memory for 300 readings. Suitable for corrosion monitoring, pipe and tank inspection, fabrication QA and maintenance across multiple materials.

Features:

  • User friendly menu operation with dot matrix display
  • DC 5V/1A type C charging with 2000mAh battery
  • Memory storage with each set of measured value, sound velocity, max, min and avg value.
  • Measure material sound velocity using 1 point calibration
  • Option for silent operation and auto power off for conserving battery.
  • Type Ultrasonic Thickness Gauges
Rs. 14,200.00 incl. taxes
-9% Rs. 15,576.00 Rs. 14,200.00 incl. taxes
In stock
In stock
Ready to work out of the box!

All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!

Warranty and returns?

All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.

Got Questions? Feel free to get in touch.

Technical Specifications:

Measuring range as per #45 Steel


Model

 Metrix+ UTM 5A+
Display 240 x 320 Dot matrix display with adjustable backlight and user friendly menu operation.
Measuring range 1 ~ 300mm (in steel)
Accuracy H < 10mm, +0.1mm
H >= 10mm, +(0.1 + 1.0%H)mm
H = real thickness of sample
Resolution 0.1mm/0.01mm/0.01inch
Sound velocity range 1000 ~ 9999 m/s
Units mm, inch
Min size of tube Ф20 * 3mm (steel)
Memory 300 sets of records
Additional functions Menu operation, single and continuous measurement modes, alarm measurement, sound velocity measurement and probe calibration
Power supply 2000mAh battery with type C charging
Size and weight 140 x 66 x 28.5 mm ; 0.15kg

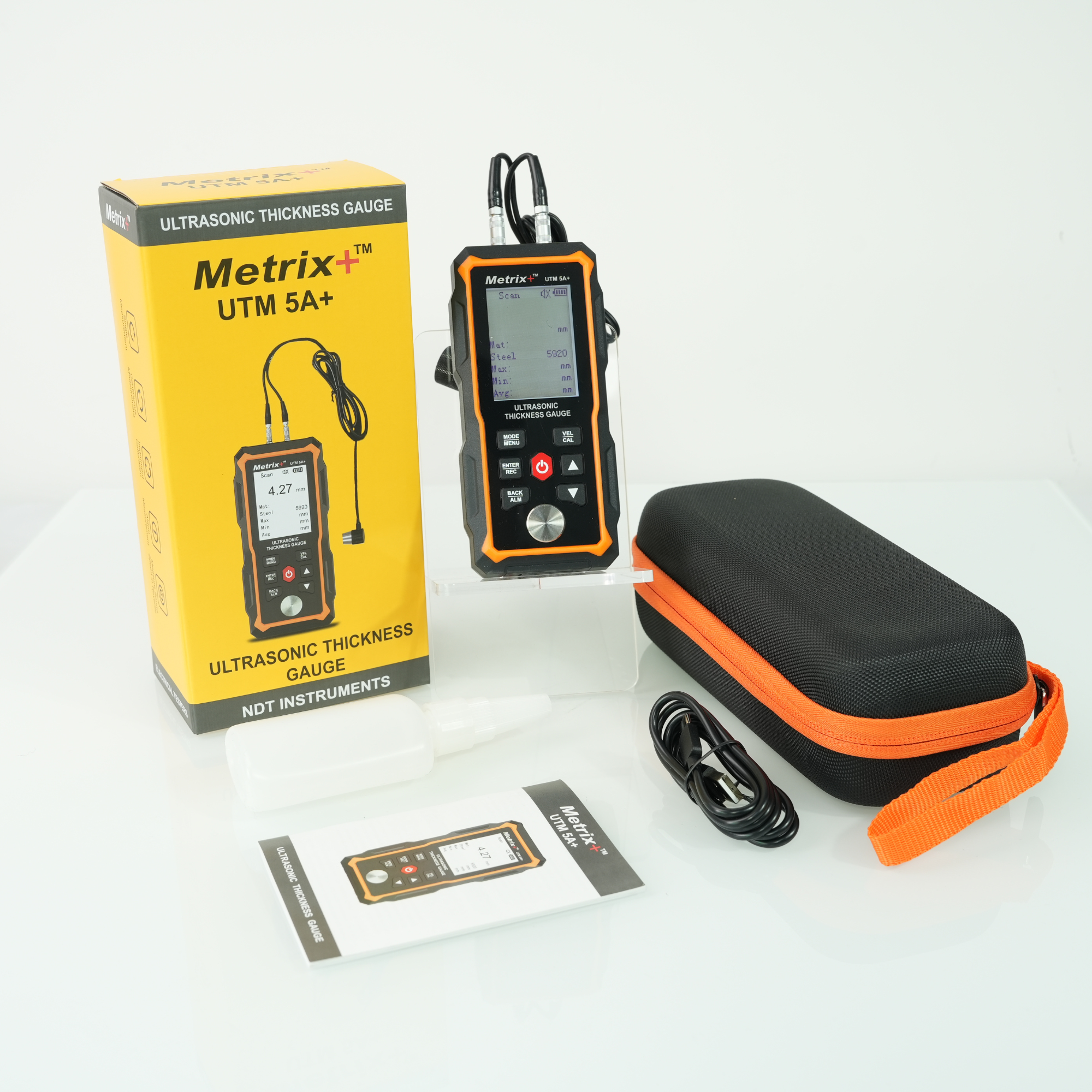

Standard accessories Main unit, standard probe, coupling agent,  manual, charging cable, gift box





Applications:

Applicable to measure the thickness of many materials, like steel, cast iron, aluminium, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron. It is widely used in almost all kinds of industries.


Measuring Principle:

Ultrasonic thickness gauge determines the sample thickness by measuring the amount of time it takes for a sound pulse, generated by an ultrasonic transducer, to travel through a test piece and reflect from the inside surface or a far wall.
