Smart Sensor AR866 Hot-Film Anemometer Precision Thermal Wind Speed Meter

(0)

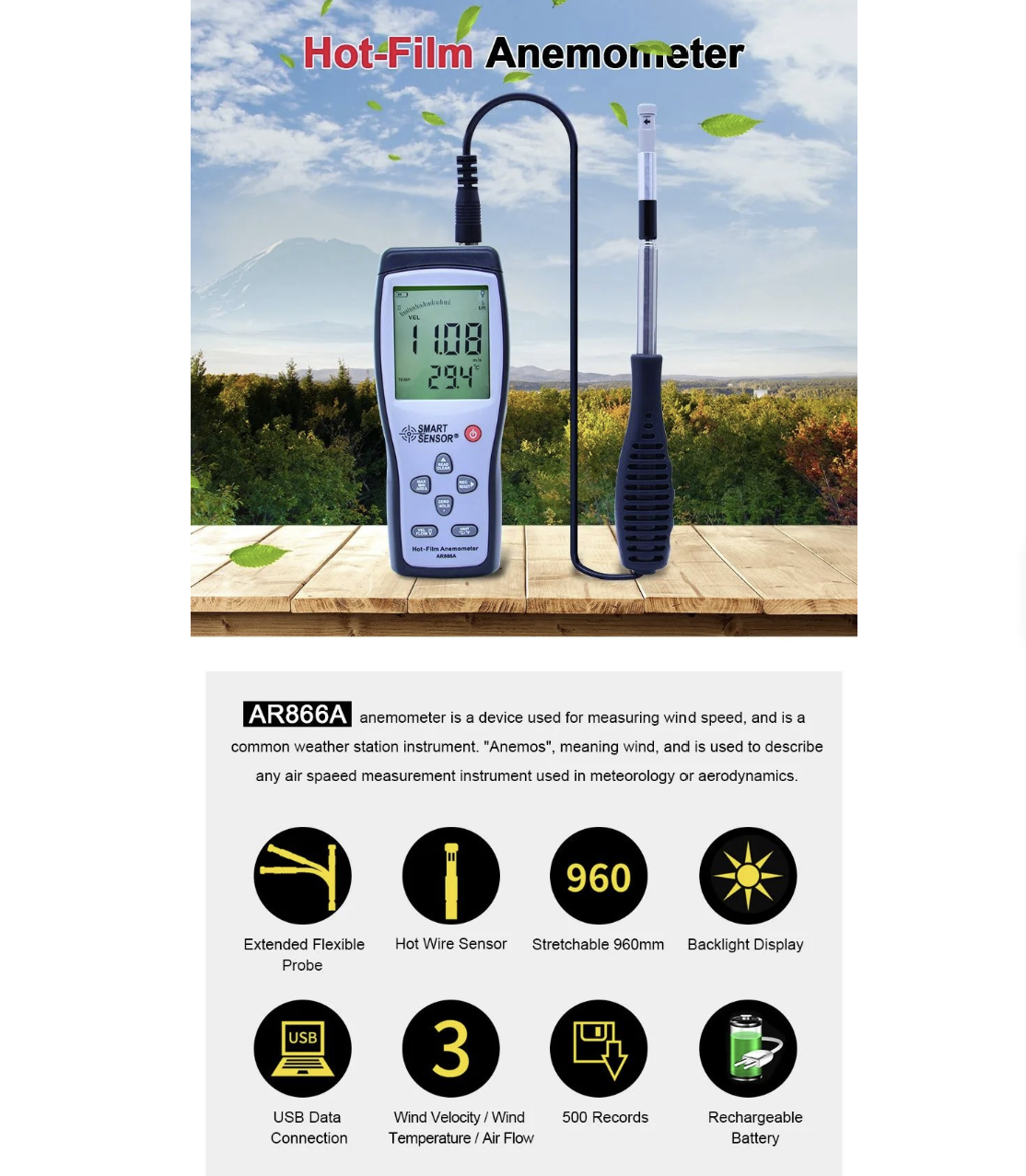

Smart Sensor AR866 Handheld Hot-Film Anemometer – High-Precision Telescopic Thermal Wind Speed & Air Volume Meter with USB PC Interface

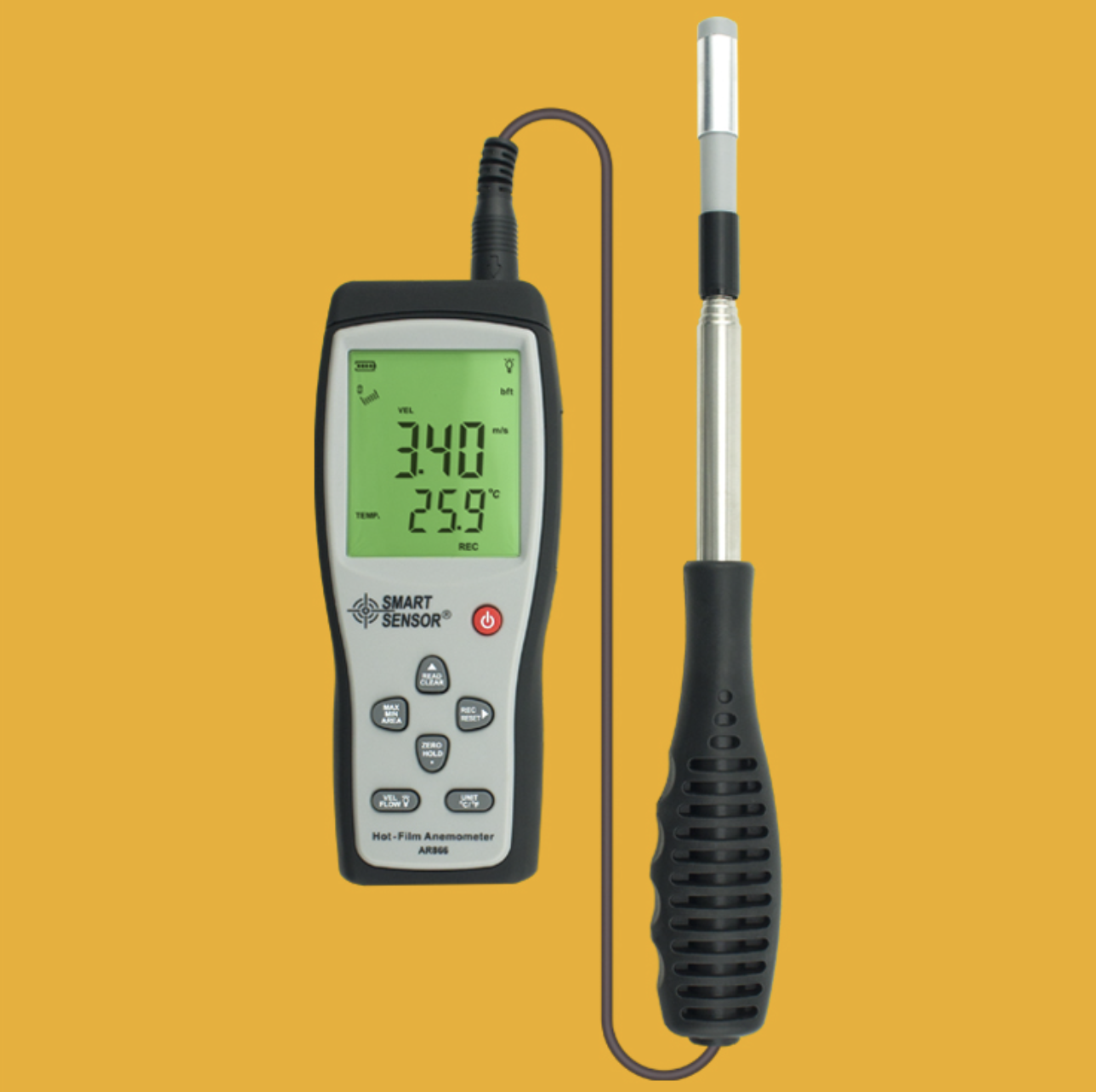

The Smart Sensor AR866 is a professional-grade thermal (hot-wire) anemometer designed to deliver exceptional precision in low-velocity airflow environments. Unlike standard vane anemometers that struggle with micro-breezes, the AR866 utilizes an ultra-fine, electrically heated film sensor to detect microscopic air movements down to 0.01m/s. Equipped with a slender telescopic probe, this instrument is ideal for inserting directly into ventilation ducts, grilles, cleanroom diffusers, and tight structural spaces.

Key Features:

  • Advanced Hot-Film Thermal Sensing: Engineered for extreme accuracy in low wind speeds, providing a wide measuring span of $0 \text{ to } 30\text{m/s}$.
  • Slender Telescopic Probe: Extends smoothly to access hard-to-reach commercial HVAC ductwork, ceiling diffusers, and fume hoods safely.
  • Dual Volume & Flow Mapping: Simultaneously tracks Air Velocity ($m/s, ft/min, Knots, km/h, mph$) and Air Volume calculations ($CMM / CFM$) up to $999,900 \text{ m}^3\text{/min}$.
  • Massive 500-Group Data Storage: Built-in onboard memory allows technicians to save, review, and clear up to 500 groups of operational data right in the field.
  • USB Connectivity & Live Graphing: Includes a dedicated USB interface to connect directly to a PC for real-time data monitoring, continuous logging, and printing measurement curve graphics.
  • Vibrant Backlit LCD with Bar Graph: Displays wind parameters alongside a dynamic multi-segment analog bar graph and ambient temperature measurements ($0^\circ\text{C} \text{ to } 45^\circ\text{C}$) concurrently.
  • Type Digital Anemometer
Rs. 16,000.00 incl. taxes
Only 1 left
Low inventory - Hurry up!
Ready to work out of the box!

All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!

Warranty and returns?

All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.

Got Questions? Feel free to get in touch.

Product Overview

Optimize commercial ventilation systems, secure cleanroom certification parameters, and manage aerodynamic lab environments with the Smart Sensor AR866 Hot-Wire Anemometer. Standard mechanical impeller wind meters lack the sensitivity required to audit low-flow draft leaks or precise HVAC balancing. The AR866 solves this problem by monitoring the minute cooling rate of its heated micro-sensor, yielding an exceptional 1% basic precision threshold.

Weighing just 153 grams and boasting automated Maximum/Minimum/Average calculation metrics, this instrument provides commercial facilities managers, energy auditors, and aerodynamicists with a laboratory-grade, field-ready data collection system.

Technical Specifications Matrix

Parameter / Operational Mode Measurement Span Range Resolution Basic Measurement Accuracy
Wind Velocity (Air Speed) $0.00 \text{ to } 30.00 \text{ m/s}$ $0.01 \text{ m/s}$ $\pm1\% \pm0.1 \text{ dgt}$
Air Volume Flow Rate $0 \text{ to } 999,900 \text{ m}^3\text{/min}$ Dynamic Auto-Scale Calculated from duct area input
Ambient Temperature $0.0^\circ\text{C} \text{ to } 45.0^\circ\text{C}$ ($32^\circ\text{F} \text{ to } 113^\circ\text{F}$) $0.1^\circ\text{C}$ $\pm1.0^\circ\text{C}$

General System Configuration & Hardware Details

  • Wind Velocity Supported Units: m/s, ft/min, Knots, km/h, mph

  • Air Volume Supported Units: CMM (Cubic Meters per Minute) / CFM (Cubic Feet per Minute)

  • Onboard Memory Capacity: 500 distinct operational data groups

  • PC Data Link Interface: Mini-USB Port (Supports real-time logging & graphic software)

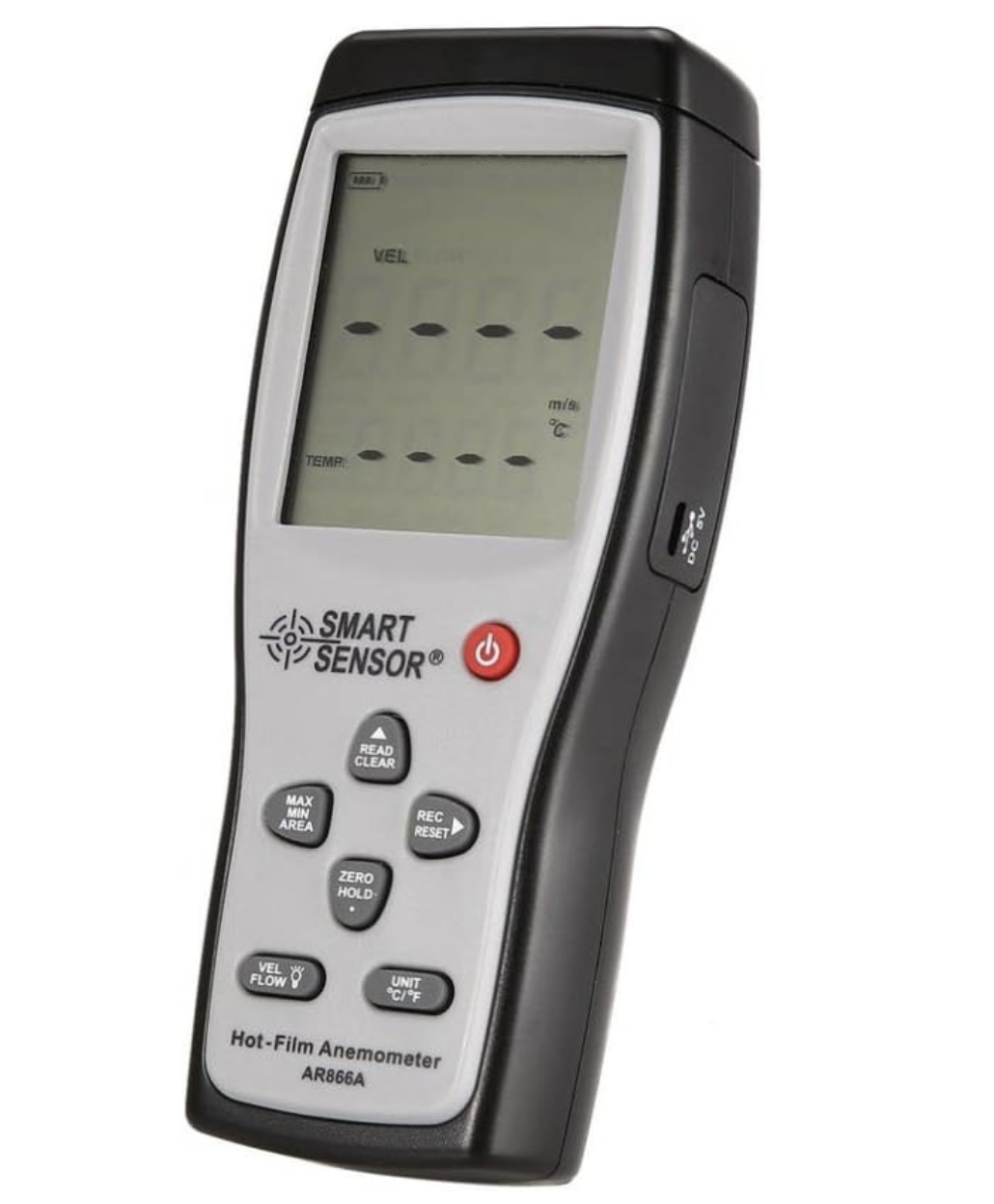

  • Primary Display Panel: Large Multi-line LCD Screen with Selectable Backlight

  • Data Control Assets: Integrated Data Hold (HOLD) & Auto/Manual Power Off to save battery

  • Power Supply Requirement: 1 x 9V Alkaline Battery (Standard heavy-duty block)

  • Total Host Dimensions: $159\text{mm} \times 66\text{mm} \times 32\text{mm}$

  • Net Host Assembly Mass: $\approx 153.46 \text{ grams}$ (Ergonomic lightweight profile)

Targeted Industrial & Field Applications

  • HVAC & Ductwork Auditing: Insert the slender telescopic probe directly through small diagnostic holes in ventilation shafts to evaluate air balance, velocity changes, and system efficiency.

  • Cleanroom & Semiconductor Facility Validation: Monitor laminar flow velocity profiles in cleanrooms and biosafety cabinets to meet strict industry health and safety standards.

  • Energy Conservation & Environmental Auditing: Measure draft leakages, facility exhaust currents, and cooling tower airflow trends during commercial building efficiency audits.

Package Contents

  • 1 x Smart Sensor AR866 Hot-Film Anemometer Main Unit

  • 1 x Slender Telescopic Hot-Wire Sensor Probe with Connecting Cable

  • 1 x English User Operations Manual & Technical Guide

  • 1 x Heavy-Duty Premium Carrying Storage Case
