Home » Smart Sensor ST8100B Portable Oxygen Detector Handheld O2 Gas Tester
SS

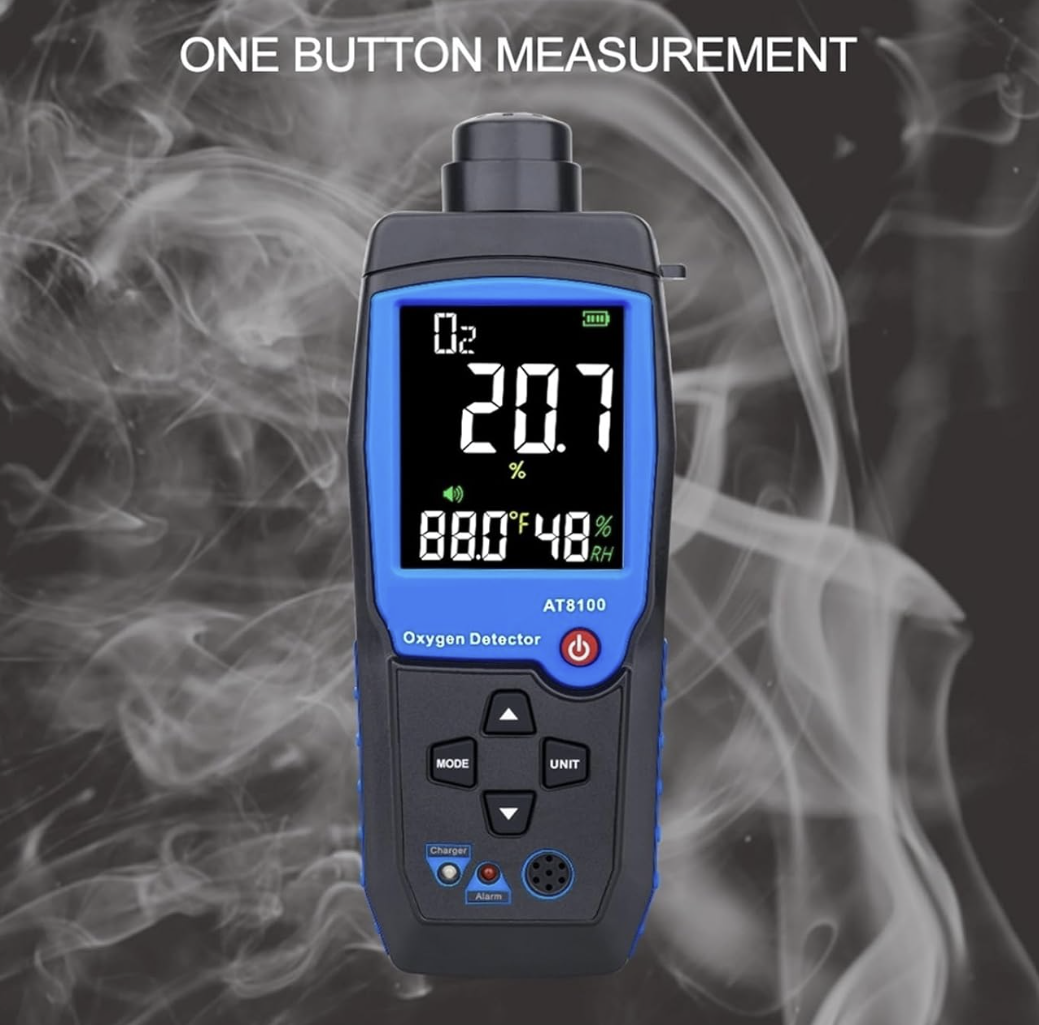

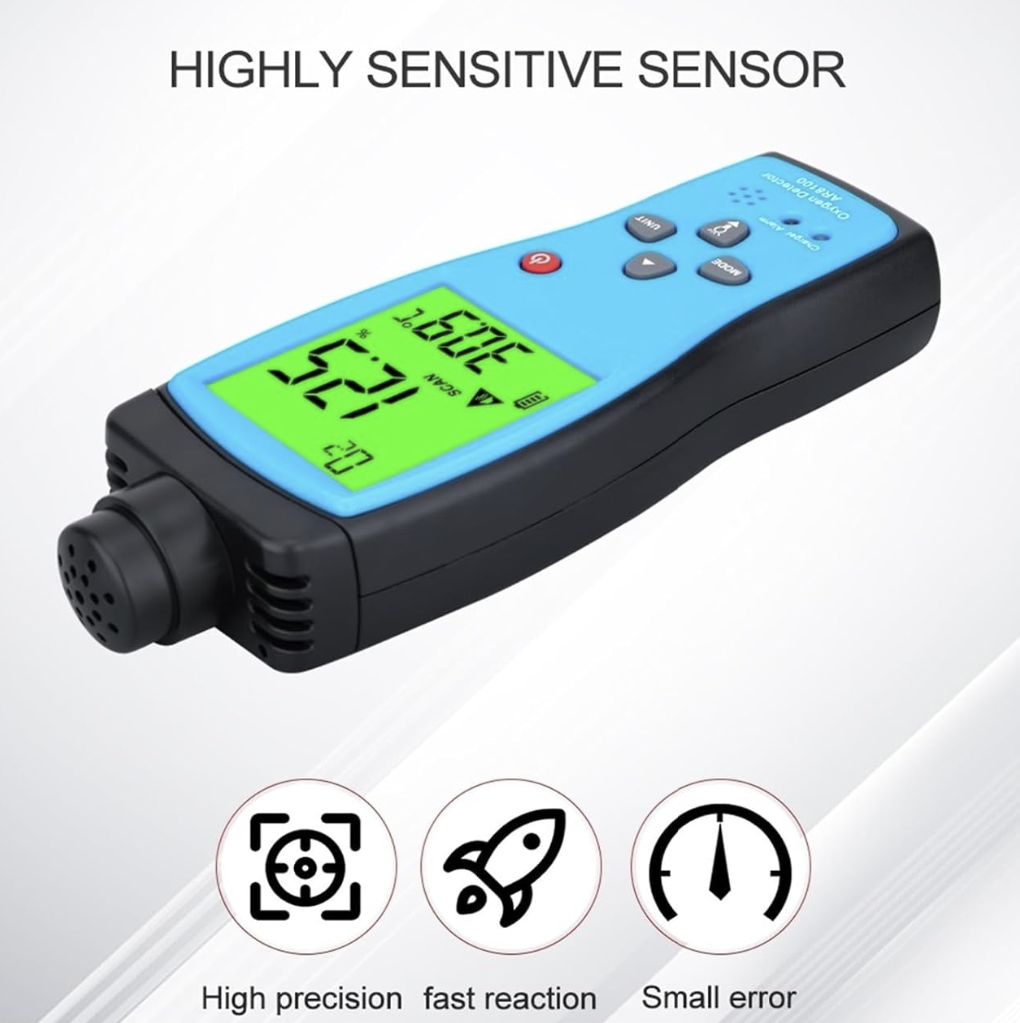

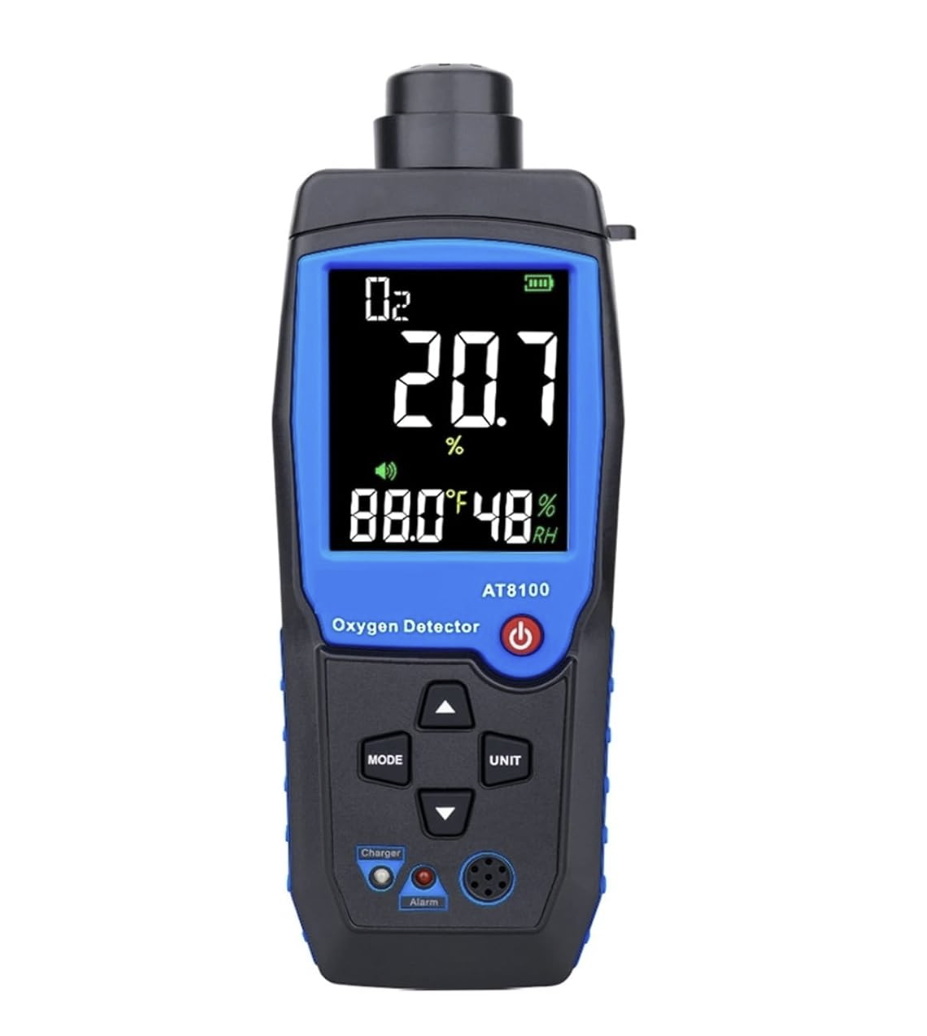

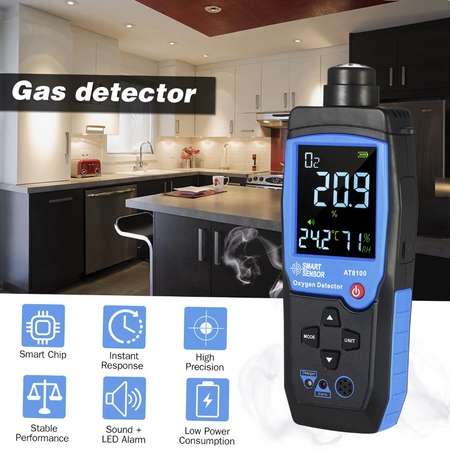

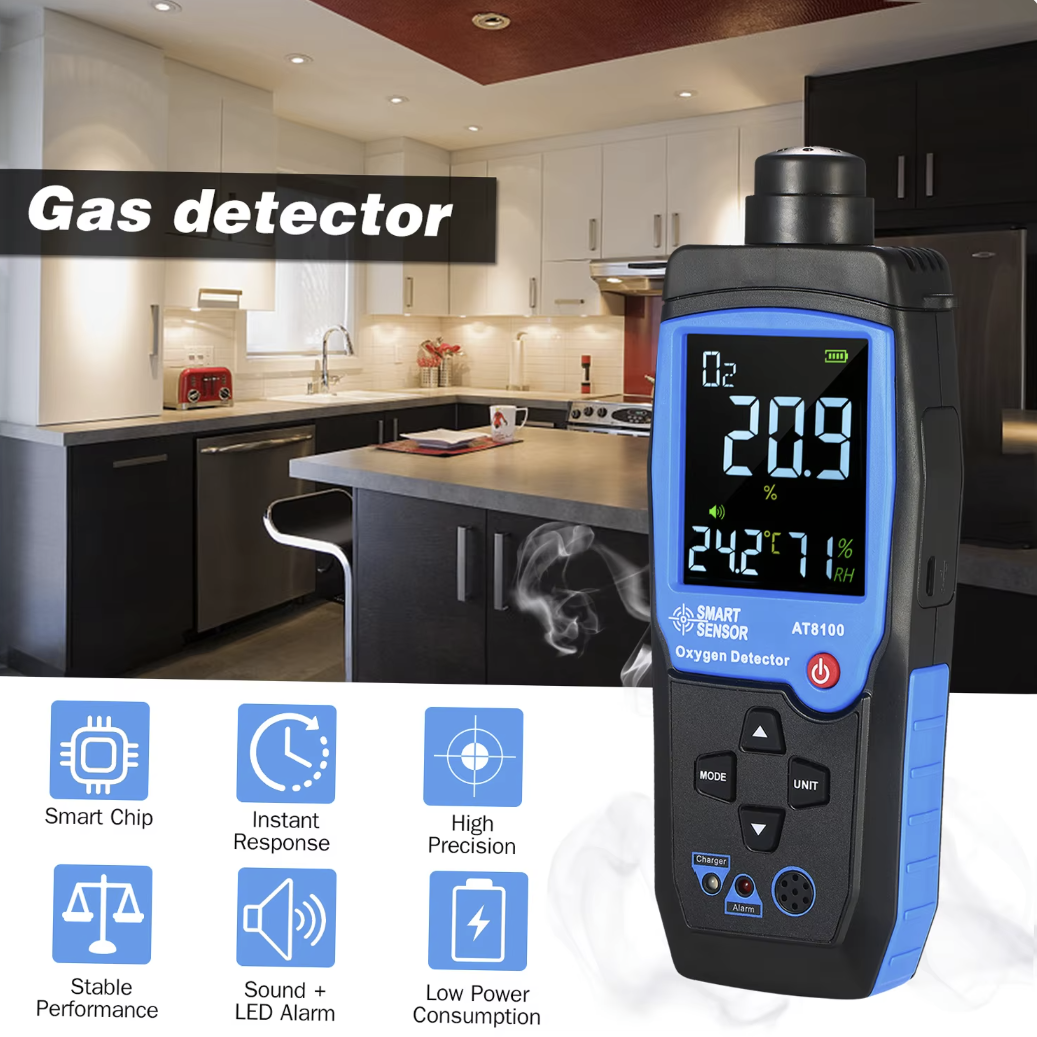

Smart Sensor ST8100B Portable Oxygen Detector Handheld O2 Gas Tester

(0)

Smart Sensor ST8100B / AT8100 Handheld Oxygen ($O_2$) Gas Detector – Personal Portable O2 Analyzer with Ambient Temperature Display & Audio-Visual Hazard Alarms The Smart Sensor ST8100B / AT8100 is a professional personal safety instrument engineered to track real-time atmospheric Oxygen ($O_2$) concentration levels, isolate hypoxic safety conditions, and protect personnel in high-risk utility sectors. Driven by a fast-responding stabilized electrochemical gas-specific sensor core, this handheld monitor covers an essential safety span of $0 \text{ to } 30\% \text{ VOL}$. Featuring customizable high/low threshold alarms, it provides immediate audio-visual indicators if oxygen levels deviate from safe atmospheric baselines ($20.9\%$).

Key Features:

  • Stabilized Electrochemical Core Sensor: Delivers excellent repeatability, highly precise tracking, and quick reaction windows across targeted oxygen molecular variants.
  • 0 to 30% Vol Measurement Range: Perfectly tuned to monitor commercial indoor air profiles, highlighting oxygen enrichment or life-threatening oxygen depletion levels down to a $0.1\%$ resolution.
  • Smart Audio-Visual Hazard Alarm Staging: Equipped with an intensive sound buzzer and bright flashing LED alert mechanisms that activate instantly when user-configured high/low limits are breached.
  • Integrated Environmental Multi-Tracking: Large backlit segment LCD screen displays live oxygen concentration percentages alongside active ambient temperature parameters ($-20^\circ\text{C} \text{ to } 50^\circ\text{C}$).
  • Rechargeable Battery & USB Interface: Built-in high-capacity lithium-ion cells with modern USB charging support eliminate continuous dry-cell replacement expenses on long shifts.
  • Ultra-Compact Pocket Chassis: Designed for ergonomics and portable convenience, weighing just under 170g for single-handed testing on factory floors, inside tool belts, or during emergency field deployments.
  • Type Gas Detector
Rs. 8,000.00 incl. taxes
Out of stock
Out of stock, contact us for lead time
Ready to work out of the box!

All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!

Warranty and returns?

All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.

Got Questions? Feel free to get in touch.

Product Overview

Safeguard operational workflows, guarantee occupational health compliance, and handle pre-entry confined space staging with the Smart Sensor ST8100B / AT8100 Personal Oxygen Gas Detector. Gas leaks or heavy nitrogen/argon displacement can deplete standard breathable oxygen concentrations instantly, posing a severe hazard before human physical senses notice a shift.

The ST8100B/AT8100 remedies this safety gap by delivering rapid continuous sampling with an impressive T90 response velocity of less than 15 seconds. Outfitted with automated low-battery alerts, an easy-to-use button configuration, and automatic calibration routines upon boot-up, this instrument provides an essential field toolkit for underground pipeline inspectors, chemical plant operators, HVAC engineers, and laboratory safety technicians.

Technical Specifications Matrix

Operational Parameter / Characteristic Configured Factory Value Specifications
Sensing Gas Type Oxygen Molecule Volume Percentage ($O_2$)
Measurement Sensor Principle Stabilized Electrochemical Specific Gas Cell Array
Sensing Core Lifespan Span $\approx 2 \text{ Years Nominal Runtime}$ (Subject to operational storage conditions)
Total Measurement Scale Range $0.0\% \text{ to } 30.0\% \text{ VOL}$
System Native Resolution $0.1\%$
Basic Error Margin $\le \pm3\% \text{ Full Scale (F.S.)}$
Sensing Response Time (T90) $< 15 \text{ Seconds}$
Sensing Recovery Window $< 15 \text{ Seconds}$

General System Hardware & Power Elements

  • Primary Visual Display Screen: Segment LCD Panel with High-Contrast Blue/White Backlight

  • Environmental Temperature Checking: -20.0°C to 50.0°C (-4.0°F to 122.0°F) | Accuracy: ±2°C

  • Environmental Relative Humidity Span: 1% to 99% RH

  • Target Alarm Modality: Audio Acoustic Sound Pitch + Bright Visual Flashing LED Alerts

  • Alarm Threshold Customization: Configurable High Limit and Low Limit configurations

  • System Power Core Architecture: High-Capacity 3.7V Rechargeable Lithium Battery

  • Charging Interface Infrastructure: Integrated USB Data-Link Port (Enables running while connected)

  • Physical Housing Outer Scale: Approximately 183mm x 68mm x 31mm

  • Net Instrument Mass Weight: Approximately 161 to 170 grams (Pocket-sized design)



Targeted Industrial & Field Applications

  • Confined Space Pre-Entry Staging: Run fast baseline evaluations in underground utility vaults, sewer lines, empty chemical tanks, and storage silos before workers enter.

  • Petrochemical & Refinery Safety Auditing: Continuous personal monitoring near oil refining loops, gas processing channels, and chemical synthesis arrays where hazardous leaks could occur.

  • Laboratory & Medical Gas Storage Vaults: Keep check over enclosed areas housing bulk liquid nitrogen, pressurized argon, or specialized welding shielding gases to capture sudden displacement spikes.

Package Contents

  • 1 x Smart Sensor ST8100B / AT8100 Portable Oxygen Gas Detector Main Unit

  • 1 x USB High-Speed Power Charging Interface Cable

  • 1 x English User Operations Manual & System Programming Guide

  • 1 x Protective Hardware Packaging Box
