RHT A

(0)

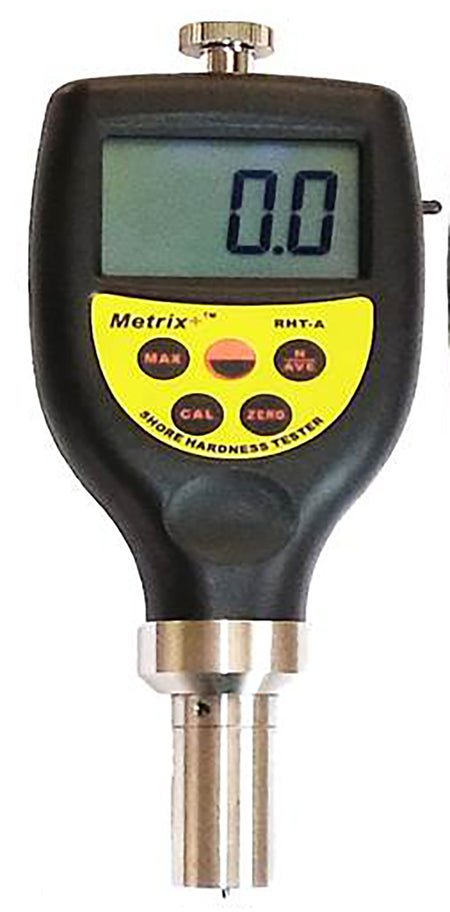

Digital portable rubber hardness tester or shore hardness tester in scale A, with digital backlit display, inbuilt calibration and max/ avg data calculations.

Features:

  • Rubber or Shore Hardness Tester in Scale A
  • Integrated probe and light weight design.
  • Average value function and max data hold.
  • Automatic power-off and low battery indication.
  • Metric to imperial conversion.
  • Inbuilt software calibration.
  • Type Hardness Testers
Rs. 25,488.00 incl. taxes
Only 2 left
Low inventory - Hurry up!

Ready to work out of the box!

All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!

Warranty and returns?

All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.

Got Questions? Feel free to get in touch.

Technical Specifications:

Model Metrix+ RHT-A
Display Backlit LCD
Measuring range 0 – 100 / 10 ~ 90H
Accuracy <+1H
Resolution 0.1H
Power 2 x 1.5V AAA (UM-4) Battery
Operation temperature 0 ~ 50℃
Dimension 170 x 63 x 24 mm
Weight 310g (excluding batteries)
Standard Configuration Main Unit, pin length test block(this is not the real hardness test sample; it is only an imitation. Just place it onto a flat glass, then place the point of indenter into the hole of the block when taking measurement), carrying case, manual.
Optional accessories PC interface, shore hardness tester measurement stand, rubber hardness test block(A/D type)



Applications:

Shore A scale is used for testing soft Elastomers (rubbers) and other soft polymers like soft vulcanized rubber, natural rubber, nitriles, thermoplastic elastomers, flexible polyacrylics and thermosets, wax, felt and leathers, with hardness values between 20 ~ 90A.


Measuring Principle:

This instrument utilizes an indenter loaded by a calibrated spring. The measured hardness is determined by the penetration depth of the indenter under the load. For shore A, the indenter is a hardened steel rod 1.1 mm – 1.4 mm in diameter, with a truncated 35° cone of 0.79 mm diameter.
