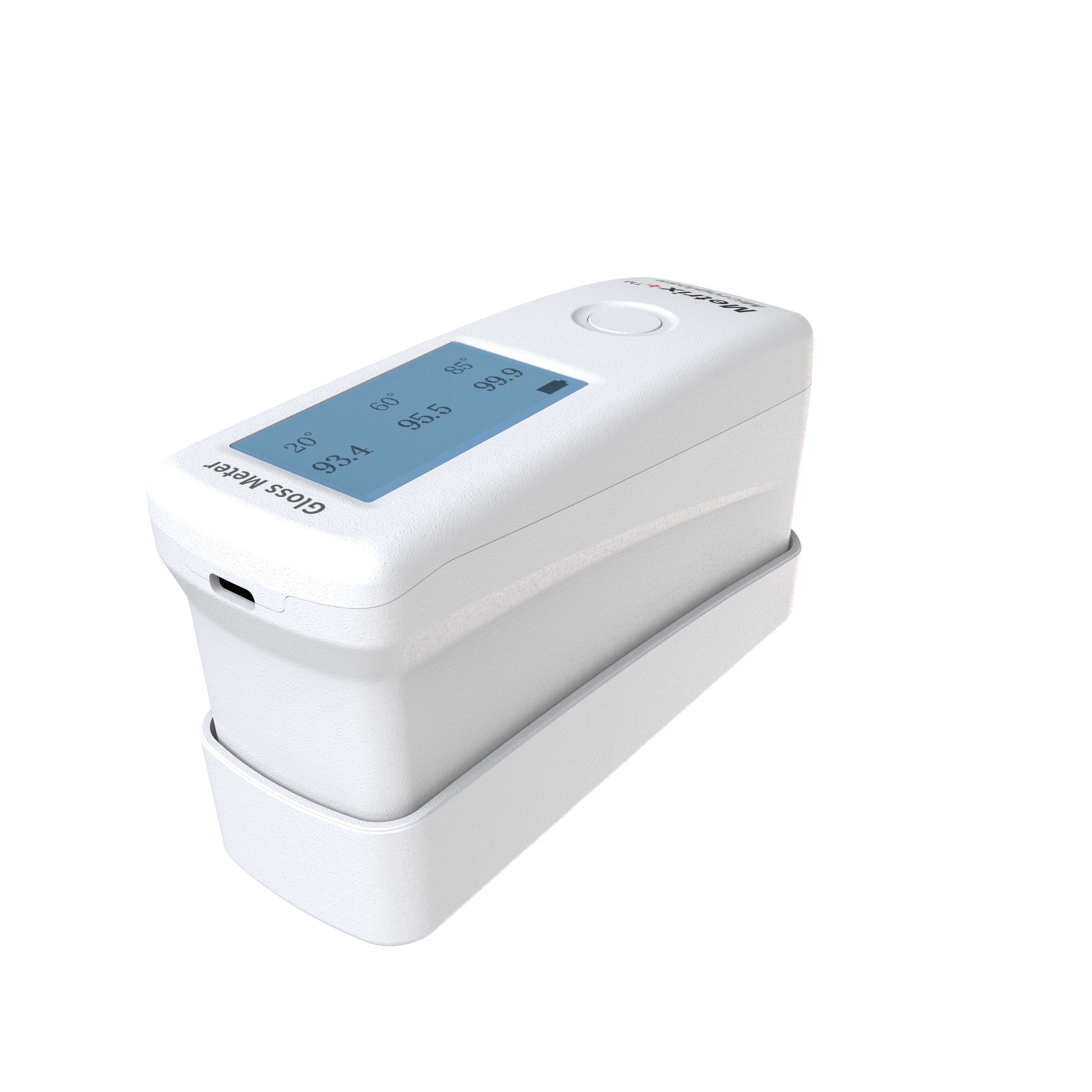

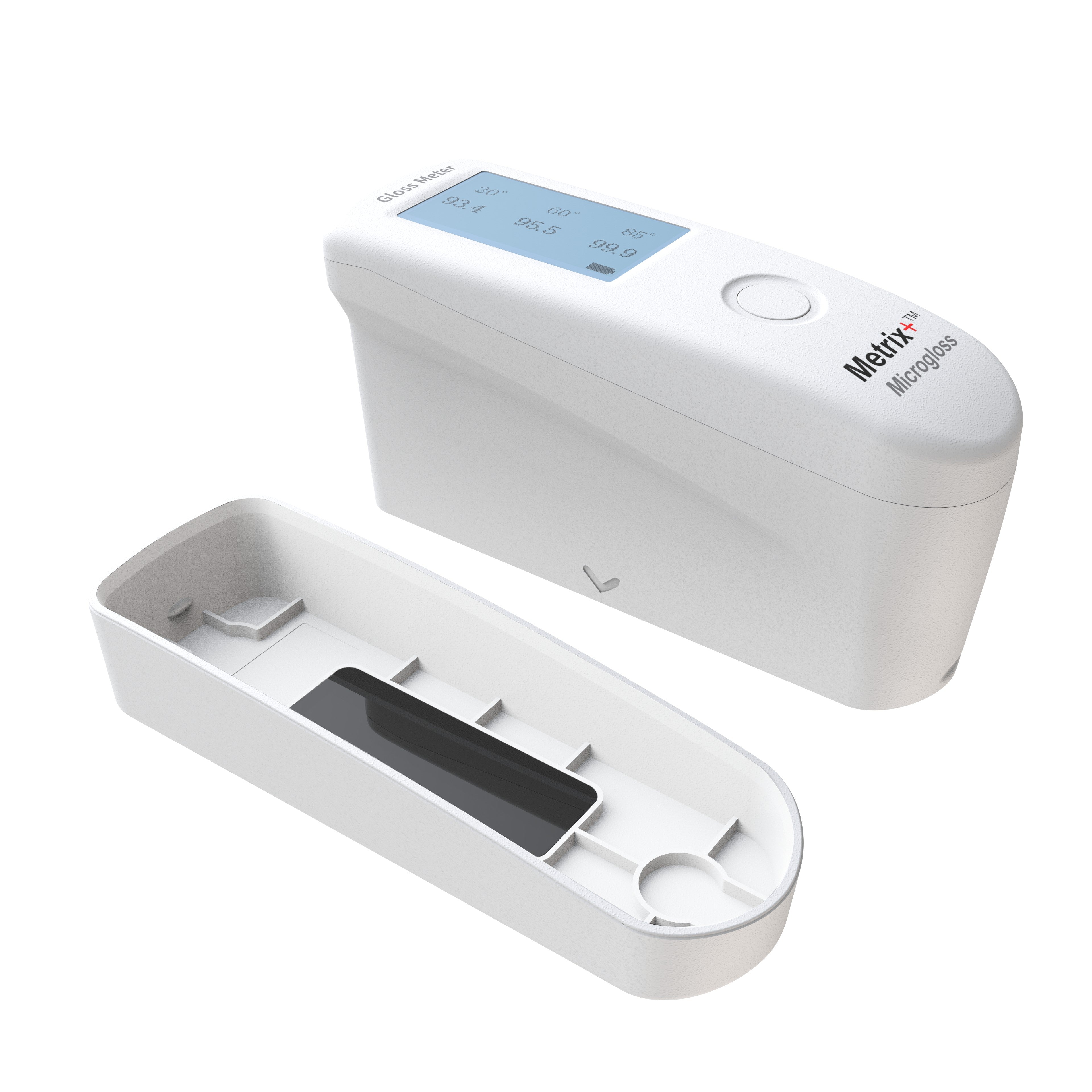

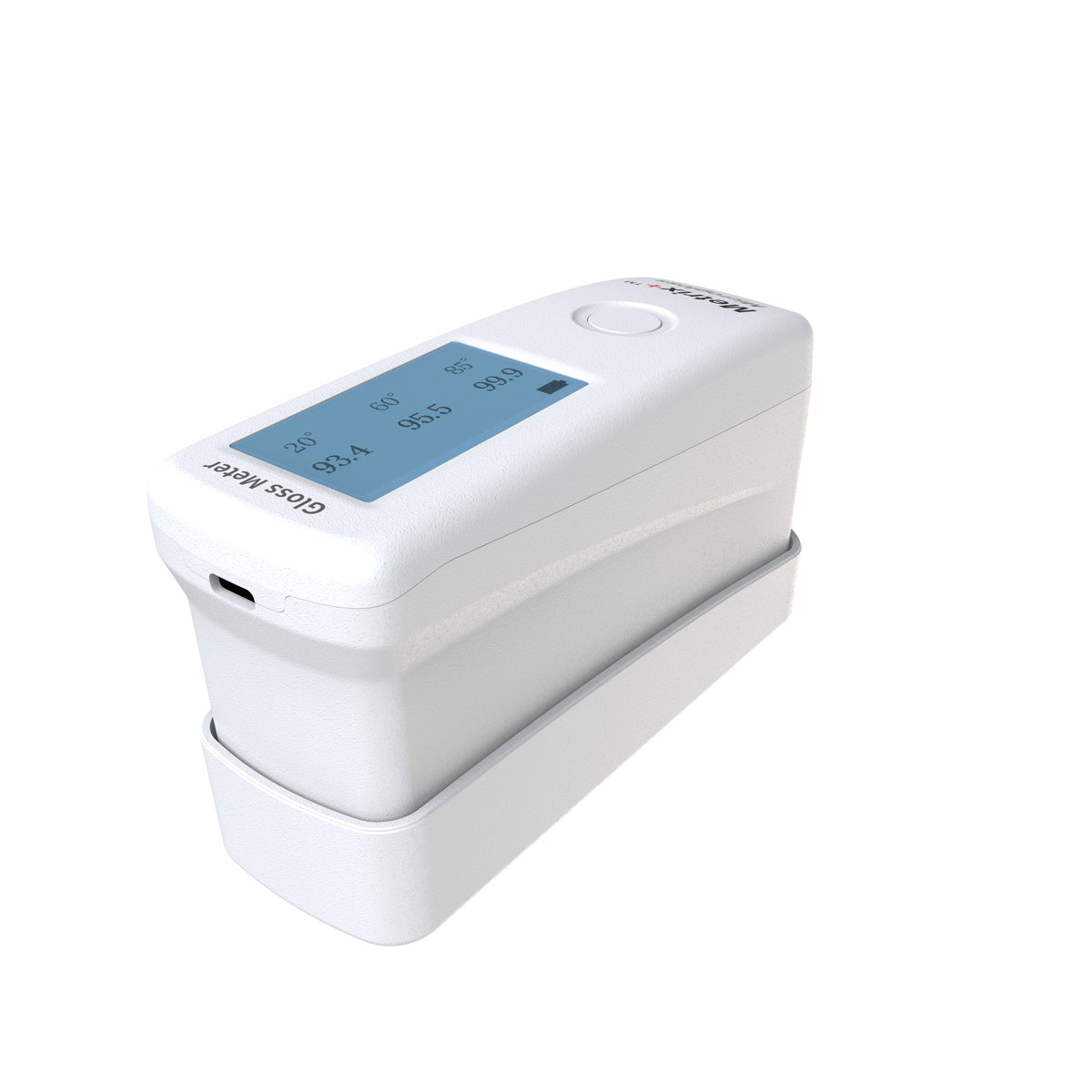

Metrix+ Microgloss Tri Angle Gloss Meter 20° 60° 85°

(0)

Tri-angle gloss meter with 20°, 60° and 85° geometry for gloss measurement across high, medium and low gloss surfaces. Suitable for paint, coating, plastics, printing and finish quality inspection.

Features:

  • Multi angle 20°/60°/85°, with simultaneous measurement in all three angles
  • High measuring range, upto 2000GU
  • One-button operation
  • USB Type C charging
  • Added functions, including data transfer, with PC interface.
  • Type Gloss Meters
Delivered against order

We are supplying this product against email order only, please contact us with your query for pricing. If the product is not in stock, the normal lead time is 4-6 weeks after order confirmation.

Ready to work out of the box!

All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!

Warranty and returns?

All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.

Technical Specifications:

Model Metrix+ Microgloss
Standards Comply with standard ISO 2813, ISO 7668, GB/T 9754, ASTM D 523, ASTM D 2457, DIN 67530,  GB/T13891.  All indexes meet the requirements of JJG 696-2015 Verification Regulation of “Specular Gloss Meters and Gloss Plates” as the grade 1 working meters.
Measuring range 20° : 0 ~ 2000 Gloss Units
60° : 0 ~ 1000 Gloss Units
85° : 0 ~ 160 Gloss Units
Measuring Angle 20° / 60° / 85°
Minimum Test Material Size 57mm*10mm
Reproducibility 10 – 100 GU : +0.5 GU
100 – 1000 GU : +0.5% GU
Resolution 0.1 GU
Repeatability 10 – 100 GU : +0.2 GU
100 – 1000 GU : +0.2% GU
Measuring aperture 20° : 9 x 9 mm
60° : 9 x 15 mm
85° : 5 x 38 mm
Measuring time 0.5 s
Dimensions and weight L x W x H : 140 x 48 x 75 mm, ~300g
Battery Lithium rechargeable battery 3.7V @ 2000mAh, charging via USB Type-C
Display 240 x 128 dot matrix
Operating temperature  10 ~ 45°C
Storage  temperature -10 ~ 60°C
Humidity <85% RH, no condensation

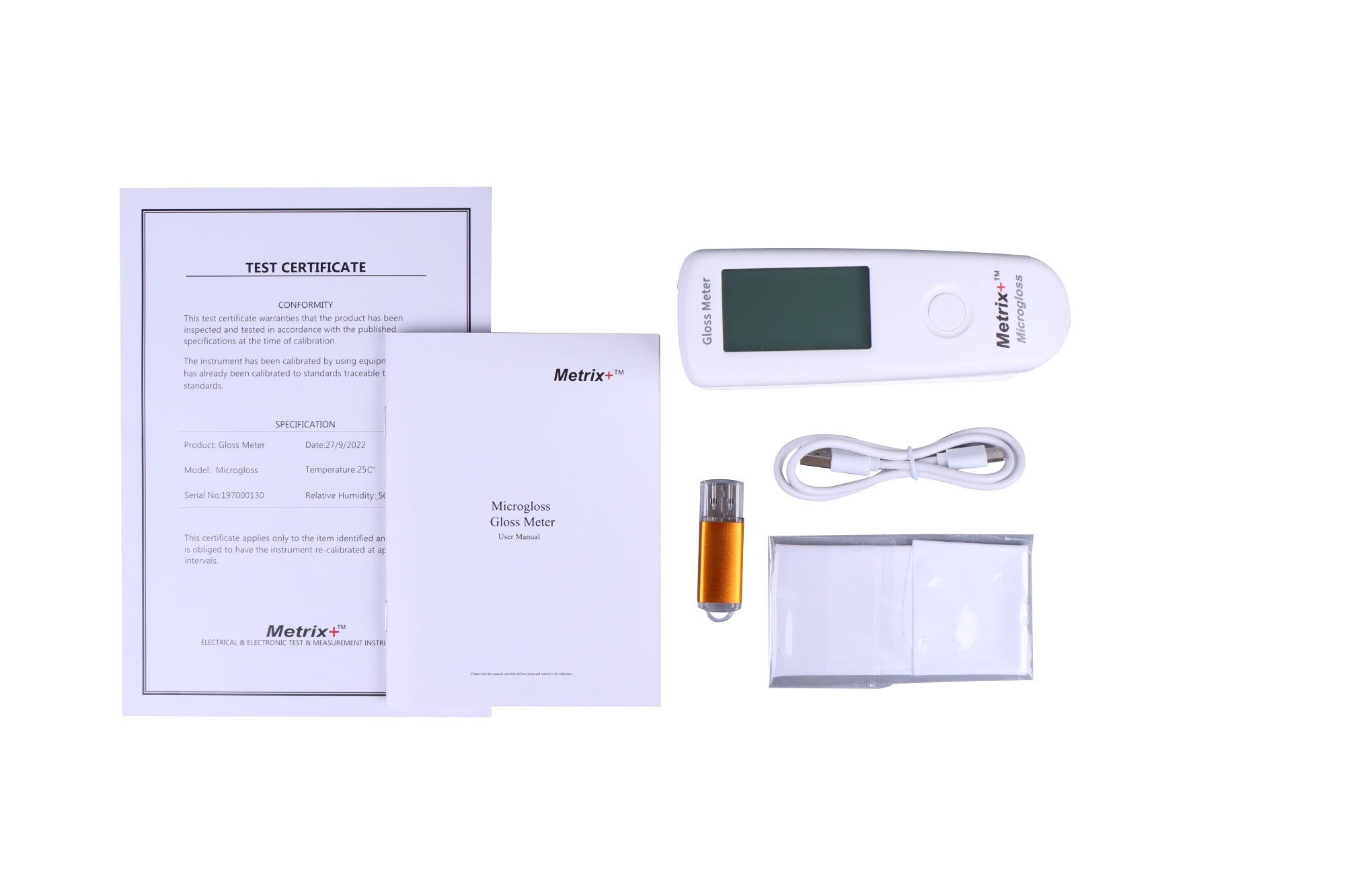

Standard accessories Main unit, power adapter, software and cable, calibration plate, operational manual, optical cleaning cloth



Applications:

The glossmeter is used in many industries from paper mills to automotive and are used by the producer and the user alike. Few examples include Paints & coatings, additives, inks, plastics, aerospace, automotive manufacture and re-finish, etc.


Measuring Principle:

Gloss Meter is used to measure the specular reflection (gloss) of a surface. Gloss is determined by projecting a beam of light at a fixed intensity and angle onto a surface and measuring the amount of reflected light at an equal but opposite angle.
