Metrix+ DFG Series Digital Force Gauge Push Pull Tension Compression Tester

(0)

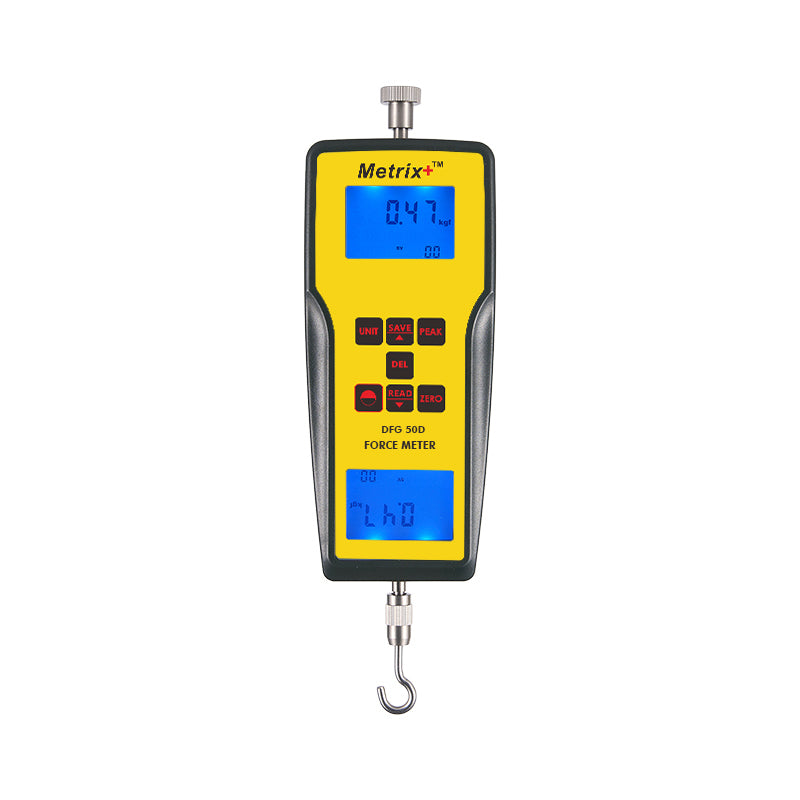

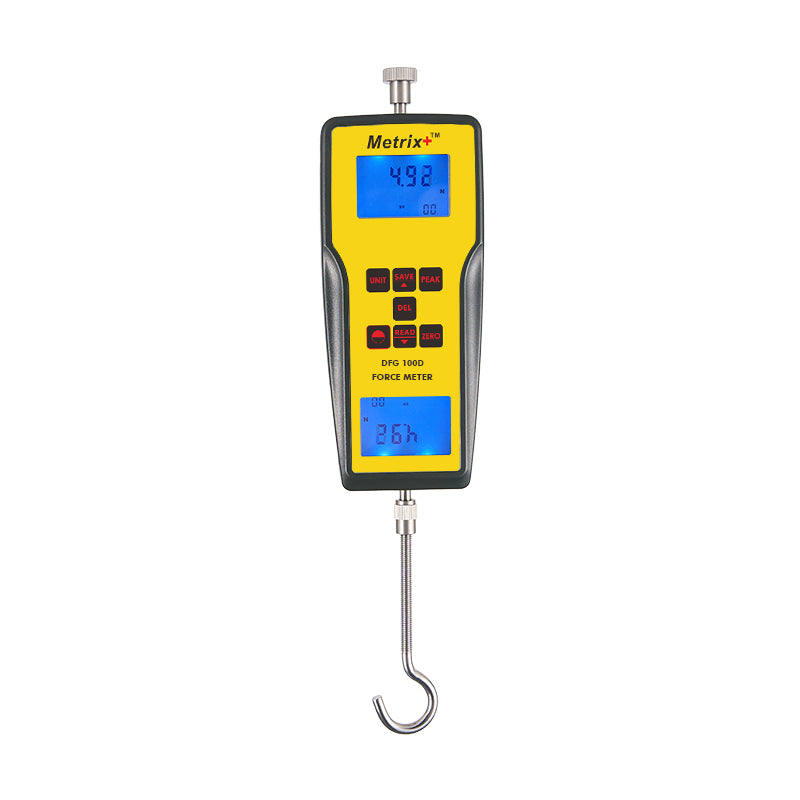

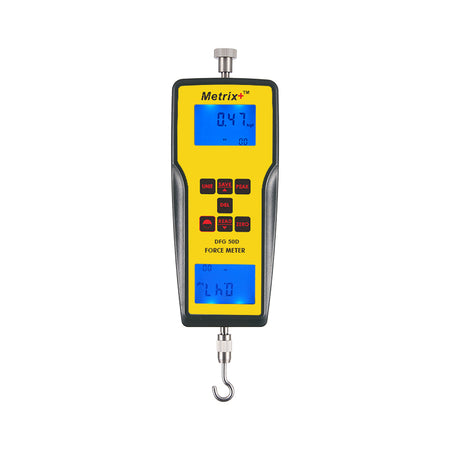

Metrix+ DFG Series Handheld Digital Force Gauge – High-Precision Push-Pull Tension and Compression Tester with 2 Reversed Backlit Display

The Metrix+ DFG Series represents a premium lineup of handheld digital force gauges engineered to measure both compression (push) and tension (pull) forces across a wide variety of industrial QA and testing platforms. Equipped with a smart 2 reversed backlit LCD panel, this instrument changes its display orientation automatically, allowing easy readability when mounted upside down on a test stand. With multiple load capacities ranging from 2kgf to 100kgf, the DFG series serves as an indispensable tool for component testing, wire terminal crimping, structural evaluation, and quality validation.

Key Features:

  • Versatile Push-Pull Dual Functionality: Effortlessly measures both tensile and compressive strain forces with real-time tracking and peak holding.
  • 4 Scaled Selection Variants: Available in 4 distinct load cell configurations—DFG 2D (2kgf), DFG 20D (20kgf), DFG 50D (50kgf), and DFG 100D (100kgf)—to fit your specific load profile.
  • Convertible Multi-Unit Measuring Matrix: Quickly toggles between international force metric units including Newtons (N), Kilograms (kgf), and Pounds (lbf).
  • 2 Reversed Backlit LCD Screen: Intuitively mirrors the interface numbers for comfortable viewing when using the instrument handheld or clamped vertically.
  • Built-in Overload Protection Safe System: Provides structural safety headroom up to 150% Full Scale, backed by an acoustic buzzer alarm that triggers if the threshold hits 110%.
  • Flexible Dual-Power Infrastructure: Operates seamlessly via 2 x 1.5V AA batteries for remote mobile field work or a continuous 5V DC power supply adapter for permanent bench use.
  • Type Digital Force Gauges
Maximum Measuring Range
Rs. 16,000.00 incl. taxes
Only 1 left
Low inventory - Hurry up!
Ready to work out of the box!

All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!

Warranty and returns?

All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.

Got Questions? Feel free to get in touch.

Product Overview

Deliver absolute accuracy, optimize batch tolerances, and achieve strict quality standards with the Metrix+ DFG Digital Force Gauge Series. Traditional analog spring scales fail to capture instantaneous break-points and suffer from mechanical friction errors. The DFG series solves this by integrating high-precision internal strain gauge load cells that handle dynamic force changes instantly.

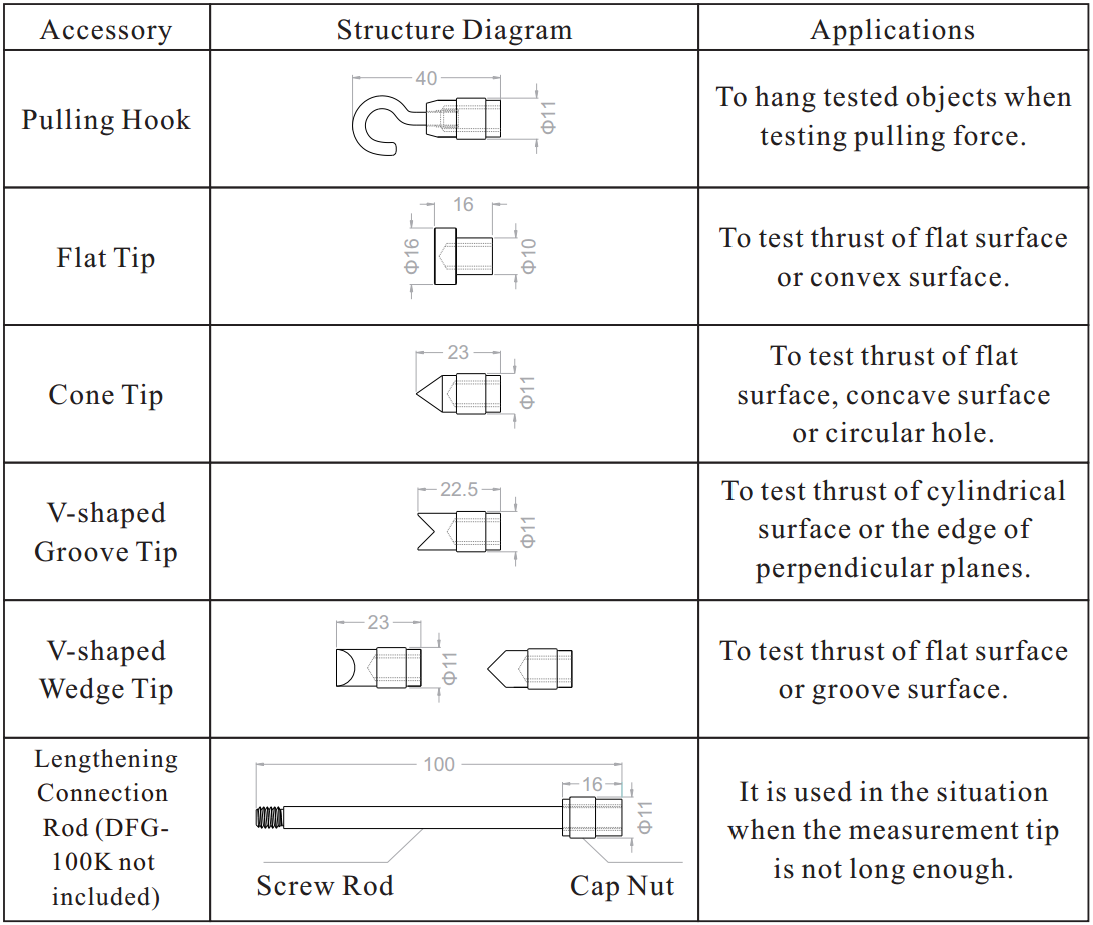

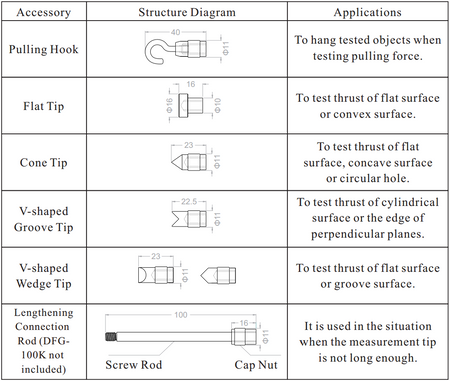

Housed in a rugged ABS protective frame with sealed membrane keys, each gauge includes a complete kit of interchangeable testing tips (such as pulling hooks, cones, and flat heads). Whether verifying spring strengths, checking wire pull out limits, or evaluating product latch mechanics, the DFG series offers reliable laboratory-grade diagnostics.

Variant Specifications Matrix

Use this clear layout to identify the exact capacity and step resolution differences across your 4 target variants:

Variant Model Maximum Load Capacity Measurement Step Resolution Accompanying Thread Size
Metrix+ DFG 2D 2 kgf / 19.6 N / 4.4 lbf 0.001 kgf / 0.01 N M6 Standard Industrial
Metrix+ DFG 20D 20 kgf / 196 N / 44 lbf 0.01 kgf / 0.1 N M6 Standard Industrial
Metrix+ DFG 50D 50 kgf / 490 N / 110 lbf 0.01 kgf / 0.1 N M6 Standard Industrial
Metrix+ DFG 100D 100 kgf / 980 N / 220 lbf 0.01 kgf / 0.1 N M6 Standard Industrial

General System Hardware & Operation Settings

  • Measurement Basic Accuracy: Plus or minus 0.2% Full Scale plus 1 digit

  • Measurement Testing Modes: Track Mode (Real-time force tracking) and Peak Mode (Captures maximum force hit)

  • Safe Overload Limit Threshold: 150% Full Scale capacity (Acoustic alarm sounds at 110% Full Scale)

  • Onboard Data Storage Space: Integrated internal memory loop for rapid data capturing

  • Power Saving Management: Built-in Low Battery Indication and Automatic Power-Off timer

  • Operational Environment Parameters: Temperature: 0 to 40°C | Relative Humidity: Less than 80% RH

  • Physical Assembly Dimensions: Approximately 211mm x 80mm x 36mm

  • Net Host Device Weight: Approximately 390 grams

Targeted Industrial & Field Applications

  • Electronics & Spring Testing: Measure the insertion force of connectors, circuit board micro-switches, and specific terminal spring actuation thresholds.

  • Wire Harness & Crimp Validation: Conduct structural pull-off assessments to confirm the mechanical crimp integrity of wire lugs and wire links.

  • Automotive & Building Hardware Quality Control: Audit door latch mechanisms, car part triggers, fire extinguisher trigger pins, and locksmith mechanisms.

  • Packaging & Textile Manufacturing: Evaluate material breaking strength thresholds, packaging seal peel forces, and zipper endurance limits.

Package Contents

  • 1 x Metrix+ Digital Force Gauge Main Unit (Model as per selected Variant)

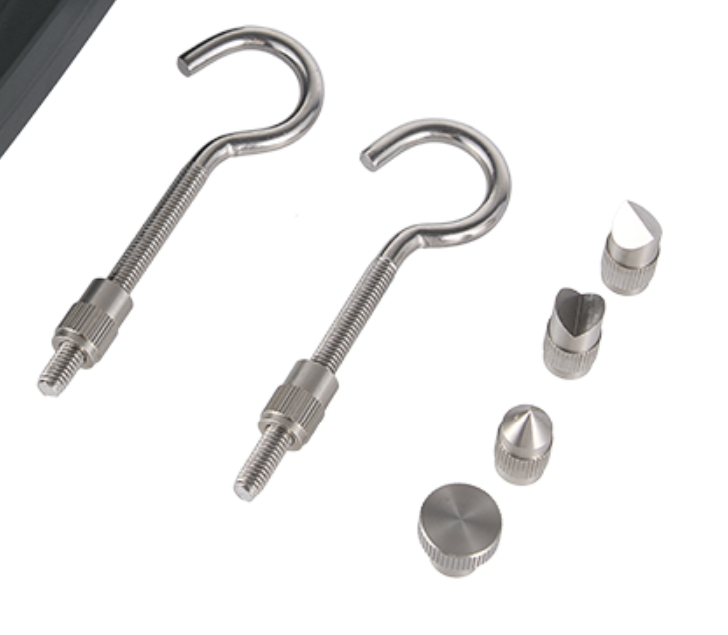

  • 1 x Heavy-Duty Extension Rod Attachment

  • 1 x Tension Pulling Hook Adapter

  • 1 x Compression Flat Tip Attachment

  • 1 x Compression Cone Tip Adapter

  • 1 x V-Shaped Groove Tip & V-Shaped Wedge Tip Set

  • 1 x Protective Molded Carrying Storage Case

  • 1 x English User Operations Manual
