We are supplying this product against email order only, please contact us with your query for pricing. If the product is not in stock, the normal lead time is 4-6 weeks after order confirmation.
All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!
All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.
|

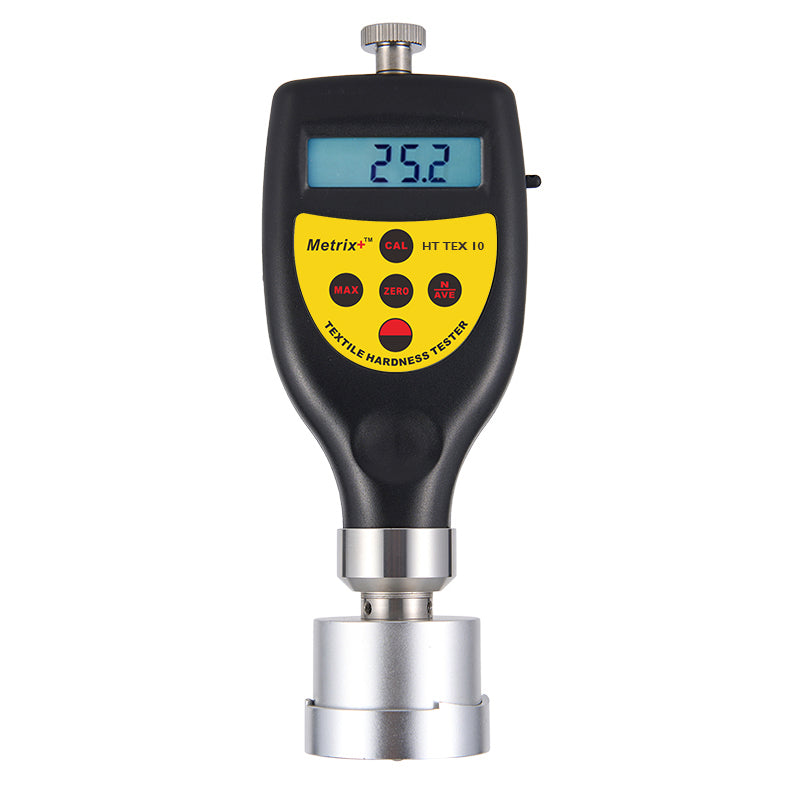

Model |
Metrix+ HT TEX 2P5 |
Metrix+ HT TEX 5 |
Metrix+ HT TEX 10 |
|
Indenter |
Ball 2.5mm diameter |
Ball 5mm diameter |
Ball 10mm diameter |
|
Application |
For closely wound bobbins of synthetic, finished fibers and filaments |
For loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads |
For very loosely wound bobbins of thick yarns, such as carpet yarns |
|

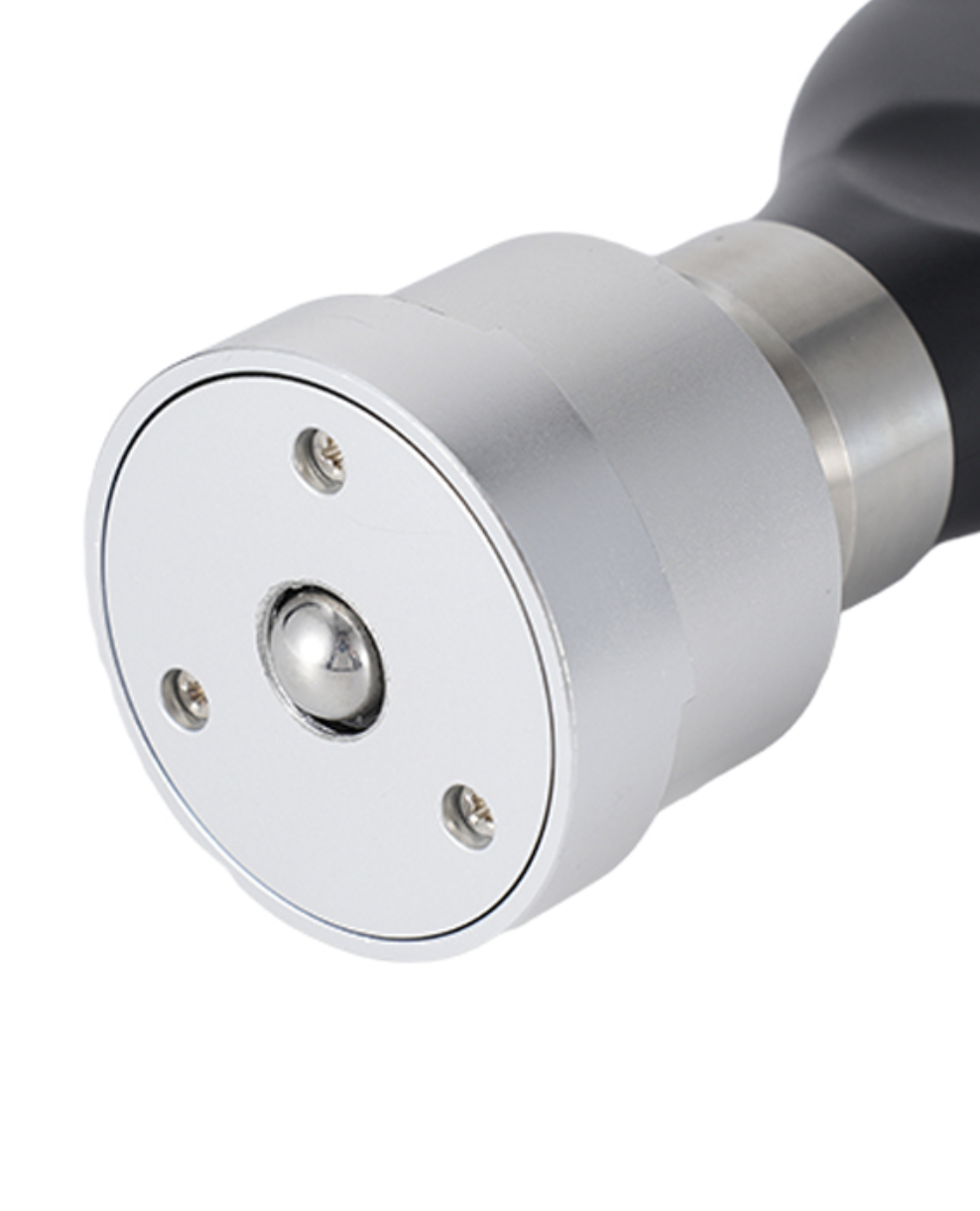

Convertible probe |
Curved end is used for bobbin diameter <400mm (working face 55mm diameter) Flat end is used for bobbin diameter >400mm (working face 45mm diameter) |
||
|
Measurement range |
10 ~ 90H, display range is 0 ~ 100H |
||
|
Resolution |
0.1H |
||
|
Accuracy |
+1H |
||
|
Testing parameters* |
Depth of Indentation 0~2.5mm, Test pressure ~12.5N, Measuring spring force: 0.55~8.065N |
||
|
Operating conditions |
Temp: 0~40C, Humidity <80% RH |
||
|
Dimensions |
177 x 65 x 45mm, approx. 285g |
||
|
Power Source |
2 x 1.5V AAA batteries |
||
|

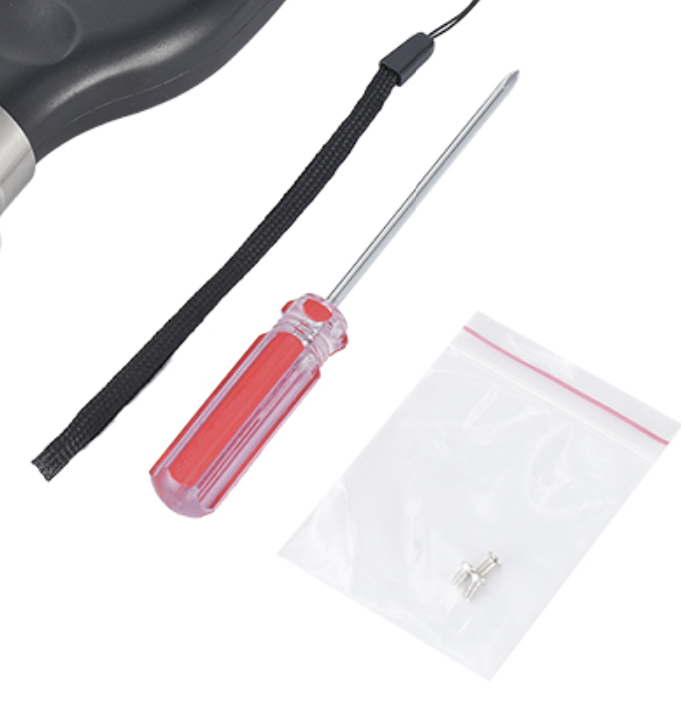

Std accessories |
Main unit, pins, screwdriver, manual, case |
||
|
Optional accessories |
Data logging: PC interface (USB & software), Bluetooth |
||
This can be used to measure winding density(hardness) of textile bobbins, beams, spools, cones, dye packages, etc.
This works on spring load and penetration depth principle, where the resistance force from the penetration against the sample is measured to estimate the hardness. Similar principle to Shore hardness testing of rubbers.
