GLS 09

(0)

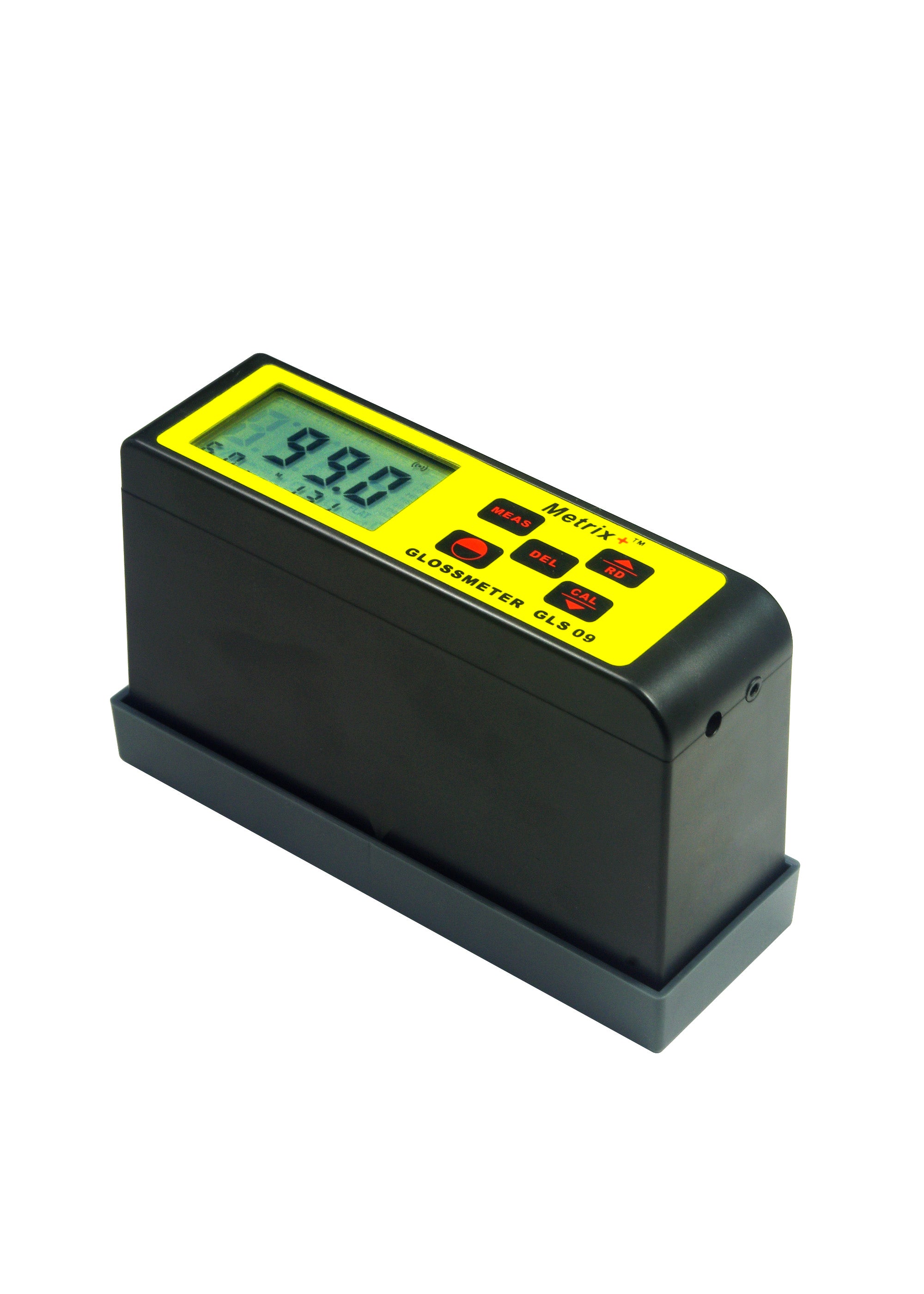

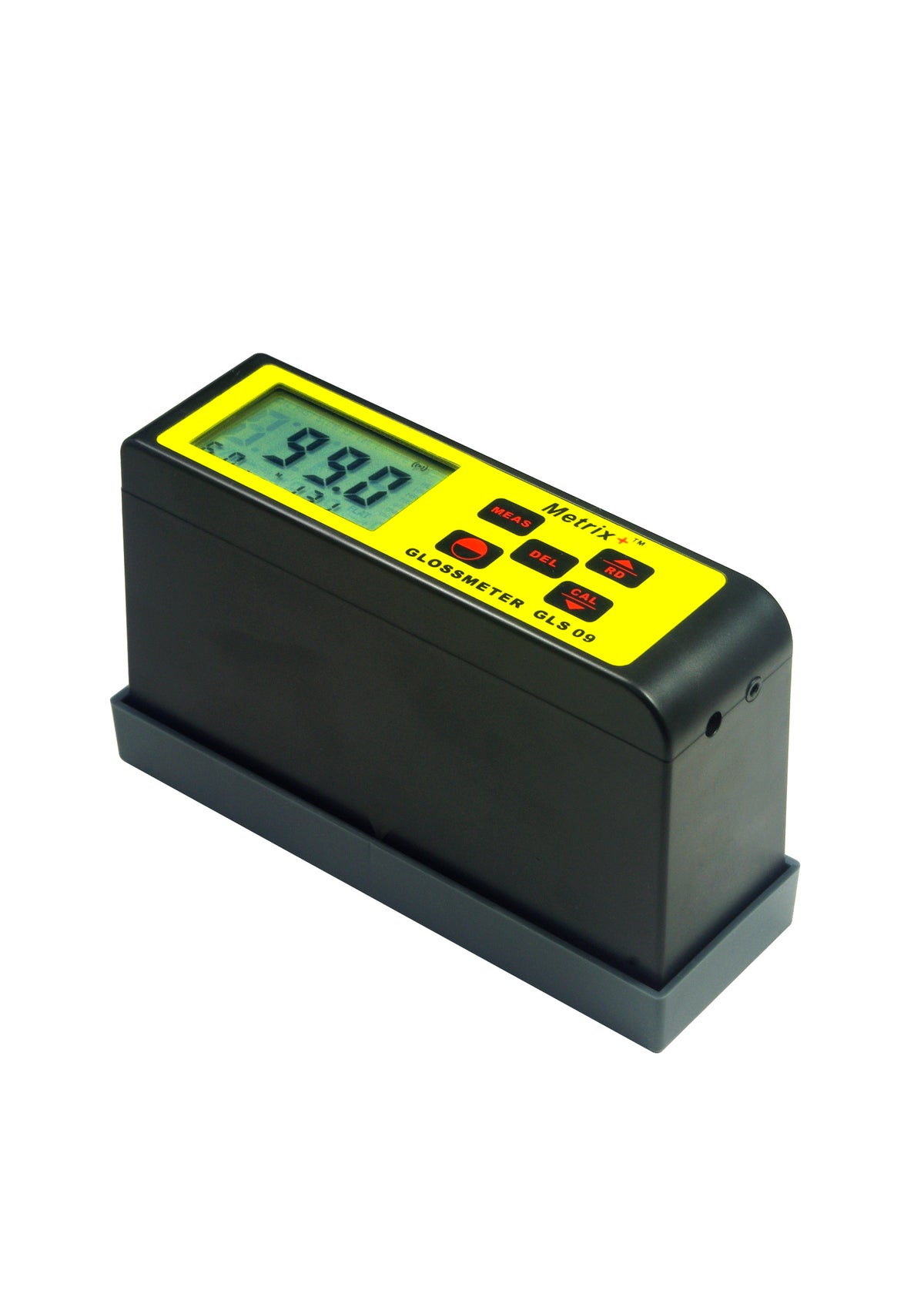

Digital Gloss Meter to measure glossiness(shininess) at 60° angle with measuring range upto 200GU and backlit LCD.

Features:

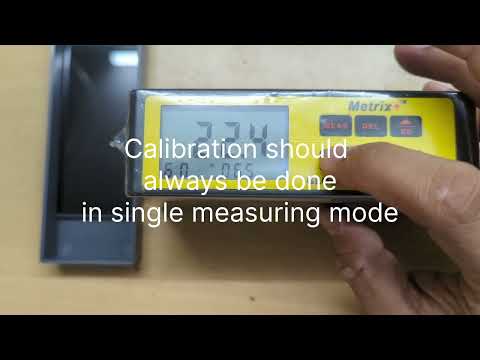

  • Simple calibration.
  • Memory storage and recall.
  • Single and continuous measuring modes.
  • Backlit LCD display
  • Optional PC interface
  • Type Gloss Meters
Rs. 19,352.00 incl. taxes
Only 2 left
Low inventory - Hurry up!

Ready to work out of the box!

All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!

Warranty and returns?

All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.

Got Questions? Feel free to get in touch.

Technical Specifications:

Model Metrix+ GLS 09
Display Backlit LCD
Measuring range 0.1 ~ 200 Gloss Units
Measuring Angle 60°
Accuracy +1.0 GU
Resolution 0.1
Repeatability +0.5 GU
Measuring area 7 x 14mm(ellipse)
Data storage 254 sets
Operating conditions Temperature : 0 ~ 40oC ; Humidity : <85% RH
Power Supply 3.7V Lithium Ion rechargeable battery
Dimensions 140 x 45 x 75 mm
Weight 305g (including battery)
Standard Accessories Main unit, calibration plate, AC adapter and charger, optical cleaning cloth, operational manual, carrying case
Optional Accessories PC interface



Applications:

The glossmeter is used in many industries from paper mills to automotive and are used by the producer and the user alike. Few examples include Paints & coatings, additives, inks, plastics, aerospace, automotive manufacture and re-finish, etc.


Measuring Principle:

Gloss Meter is used to measure the specular reflection (gloss) of a surface. Gloss is determined by projecting a beam of light at a fixed intensity and angle onto a surface and measuring the amount of reflected light at an equal but opposite angle.
