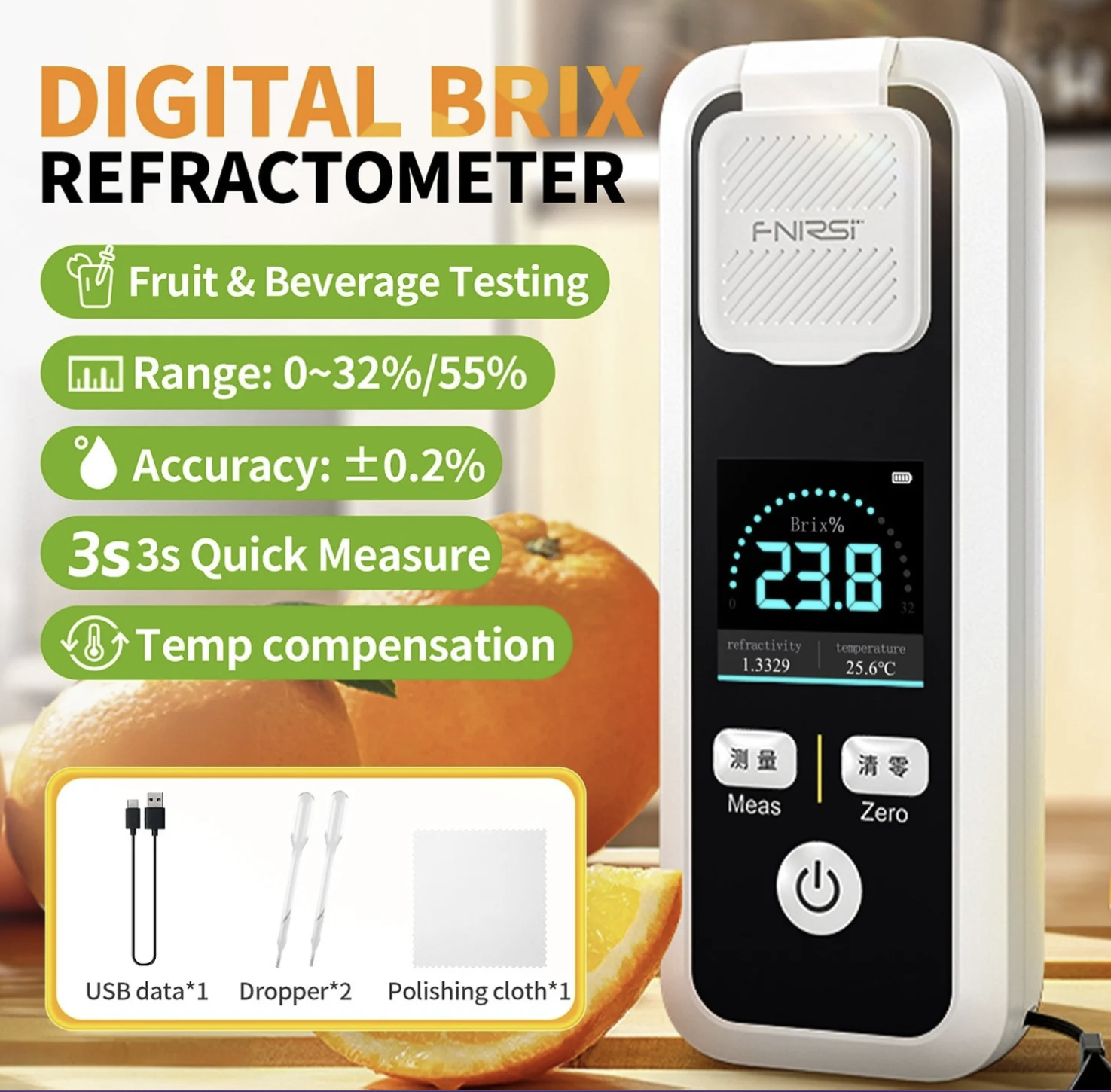

FNIRSI JBM-10 Digital Brix Refractometer High-Precision Sugar Meter IPX6

(0)

FNIRSI JBM-10 / JBM-20 Handheld Digital Brix Refractometer – High-Precision Intelligent Sugar Concentration Meter with 1.54" IPS Color Screen & IPX6 WaterproofingThe FNIRSI JBM Series (JBM-10 / JBM-20) represents the next generation of handheld optical testing, designed to instantly measure sugar concentration, refractive index, and fluid temperature. Outfitted with a premium 1.54-inch IPS HD color display and a high-resolution optical sensor prism, this pocket instrument delivers laboratory-grade analysis within seconds. Available in two tailored configurations—JBM-10 ($0\% \text{ to } 32\% \text{ Brix}$) for juices and daily beverage auditing, and JBM-20 ($0\% \text{ to } 55\% \text{ Brix}$) for specialized syrups, sauces, and industrial farming.

Key Features:

  • Dual-Variant Scaled Precision: Choose between the JBM-10 ($0-32\%$) or the wide-span JBM-20 ($0-55\%$) to precisely match your production floor requirements.
  • Integrated 3-in-1 Data Mapping: Simultaneously tracks Sugar Content (Brix), Refractive Index (RI), and ambient fluid temperature in a single sample drop.

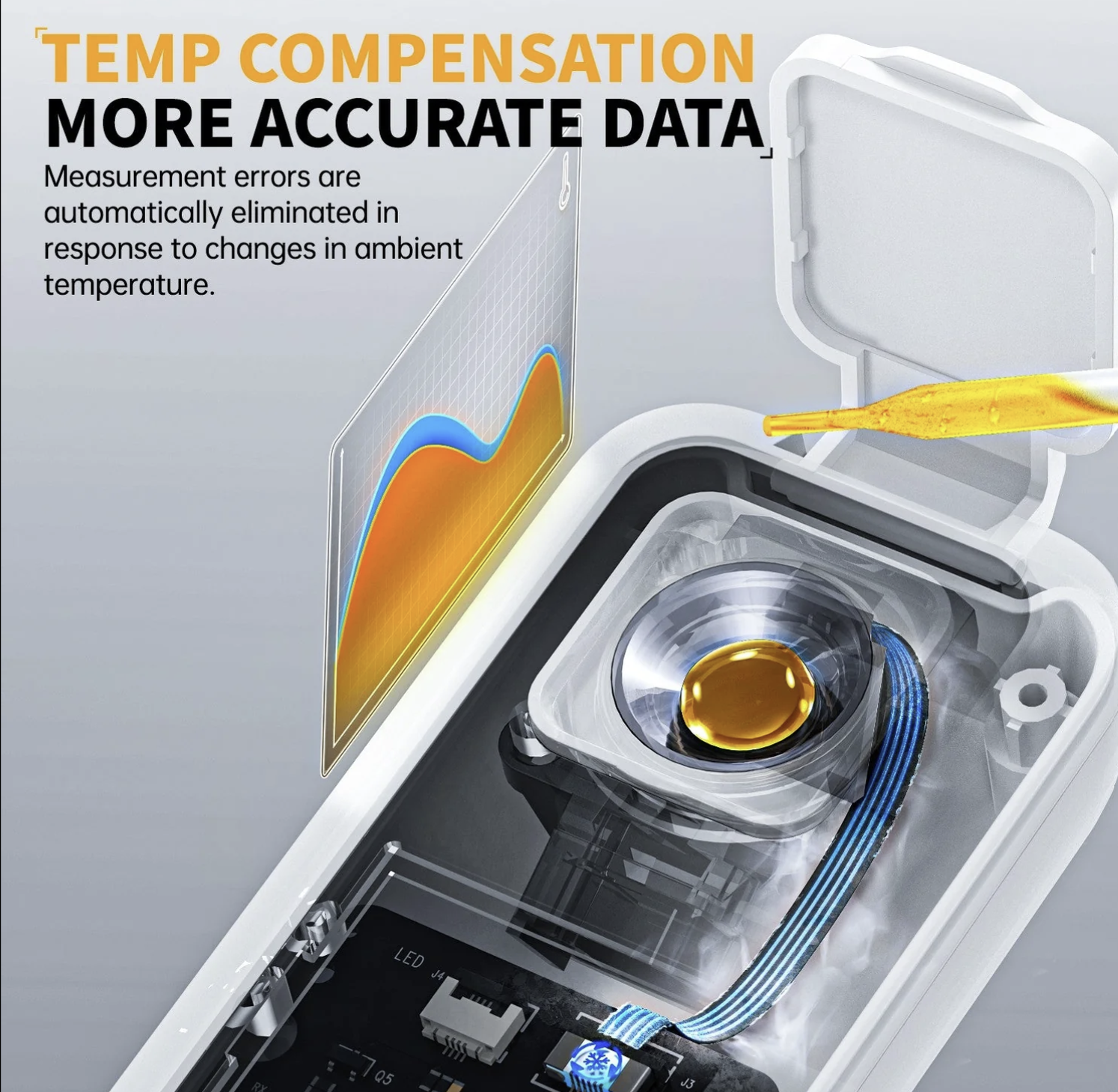

  • Smart Automatic Temperature Compensation (ATC): Automatically adjusts for sample thermal variations between $10^\circ\text{C}$ and $40^\circ\text{C}$, completely eliminating manual correction chart errors.
  • Rugged IPX6 Waterproof Construction: Heavy-duty, wash-friendly structure allows you to rinse the testing well under low-pressure running water without damaging sensitive internal hardware.

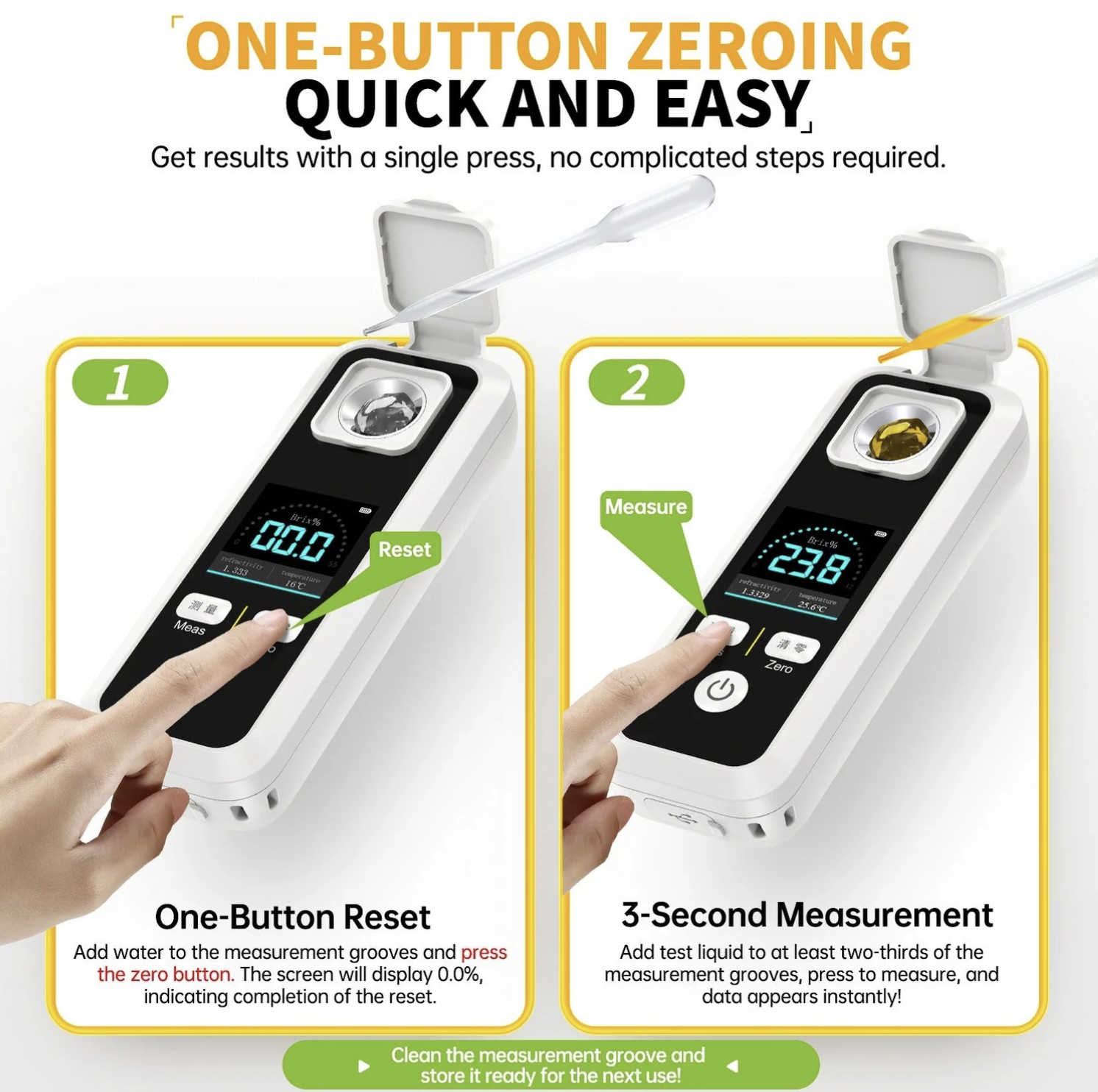

  • One-Key Automatic Zeroing: Simplifies field maintenance with rapid, single-touch calibration using standard distilled water.
  • Rechargeable USB-C Power Architecture: Powered by a built-in 3.7V 600mAh lithium battery with fast Type-C charging, providing up to 200+ continuous tests on a single chargecycle.
  • Type Digital Brix Refractometer
Rs. 3,000.00 incl. taxes
In stock
In stock
Ready to work out of the box!

All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!

Warranty and returns?

All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.

Got Questions? Feel free to get in touch.

Product Overview

Take complete command of production consistency, fermentation workflows, and food safety standards with the FNIRSI JBM Digital Refractometer Series. Traditional analog eyepiece refractometers are prone to human reading errors and require tedious visual chart matching. The JBM series solves this by implementing an active sodium-lamp filtered sensor array that evaluates fluid properties under 5 seconds. Housed in a compact, pocket-friendly 93-gram frame featuring a scratch-resistant sample protective cover, it serves as an indispensable tool for food technologists, brewers, agriculturalists, and quality control personnel.

Technical Specifications Matrix

Feature / Model Parameter FNIRSI JBM-10 Configuration FNIRSI JBM-20 Configuration
Brix Concentration Range 0.0% to 32.0% Brix 0.0% to 55.0% Brix
Measurement Precision ±0.2% Brix ±0.2% Brix
Minimum Division Resolution 0.01% Brix 0.01% Brix
ATC Operating Window 10°C to 40°C (50°F to 104°F) 10°C to 40°C (50°F to 104°F)
Sample Response Velocity Less than 5 Seconds Less than 5 Seconds
Sample Volume Required 2 to 3 Drops 2 to 3 Drops

General System Hardware & Operational Settings

  • Display Terminal UI: 1.54-inch IPS High-Definition Color Panel

  • Light Source Assembly: Integrated Sodium Lamp Filter Array

  • Waterproof Security Standard: IPX6 Rated Fluid Protection

  • Data History Logs: Built-in internal memory for rapid measurement data recording

  • Integrated Safety Shielding: Flip-down physical sample cover prism lid design

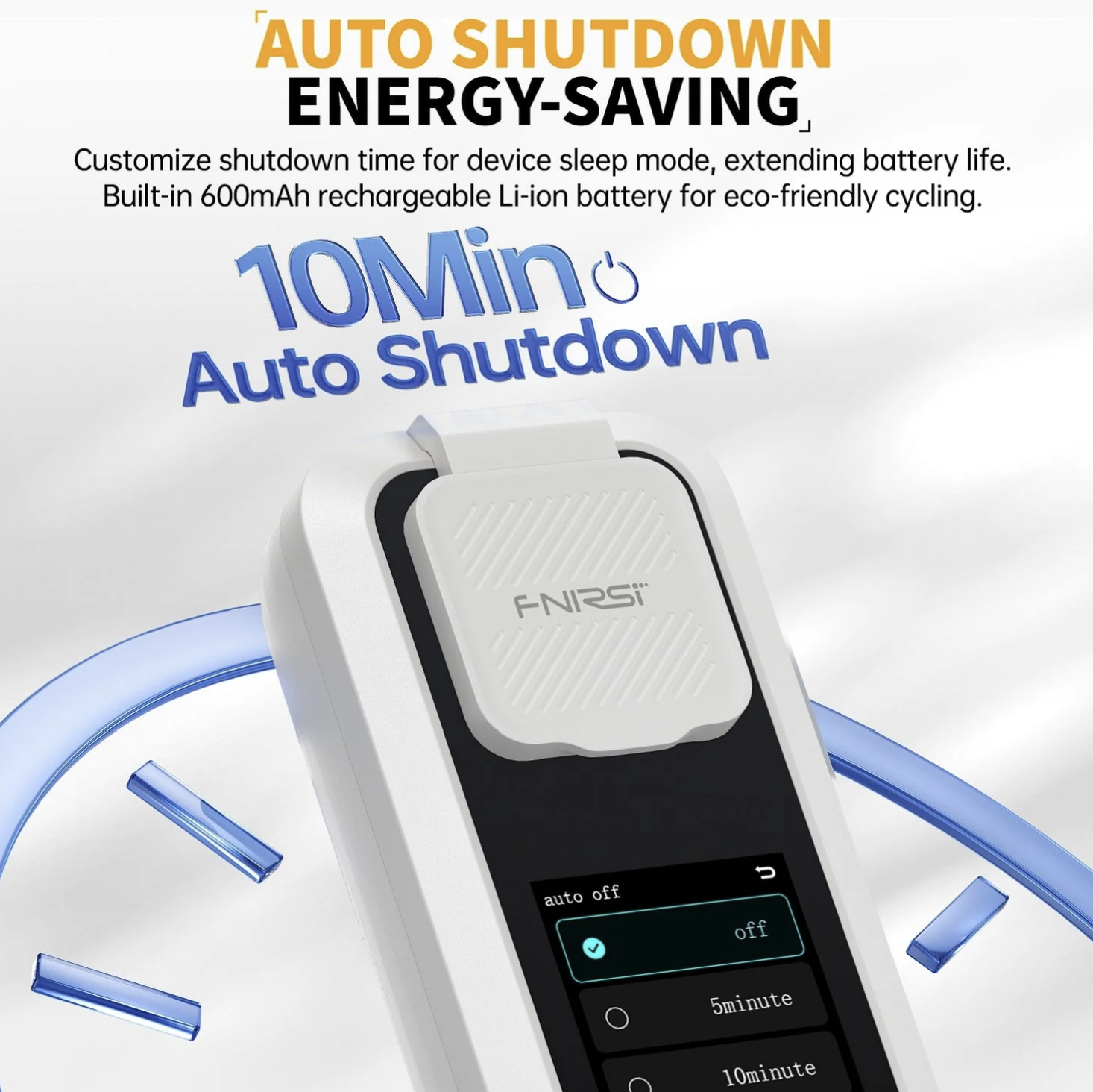

  • Power Management Architecture: Built-in Automatic Shutdown power conservation timer

  • Rechargeable Battery Cell: 3.7V / 600mAh Lithium-Ion Pack

  • Charging Standard Interface: USB Type-C (5V / 1A)

  • Total Dimensions: 46mm x 31.5mm x 125mm

  • Net Instrument Mass Weight: Approximately 93 grams (Super lightweight pocket form factor)

Targeted Industrial & Field Applications

  • Beverage & Fruit Juice Manufacturing: Monitor processing lines, fruit maturity index tracking, and sweetness consistency profiles across batch outputs.

  • Brewing, Wine & Kombucha Fermentation: Map sugar-to-alcohol conversion rates by evaluating consistent drops in Brix parameters across aging intervals.

  • Agricultural Quality Control: Field-test raw harvest crops, sugar cane fields, and greenhouse farming assets right at the source before processing.

  • Industrial Fluid Testing: Measure water-soluble cutting oils, industrial lubricants, and cooling solutions requiring strict concentration parameters.

Package Contents

  • 1 x FNIRSI Digital Brix Refractometer (Select JBM-10 or JBM-20 Variant)

  • 2 x Precision Fluid Sample Droppers

  • 1 x USB Type-C Power/Data Cable

  • 1 x Microfiber Optics Polishing Cloth

  • 1 x English User Operations Manual
