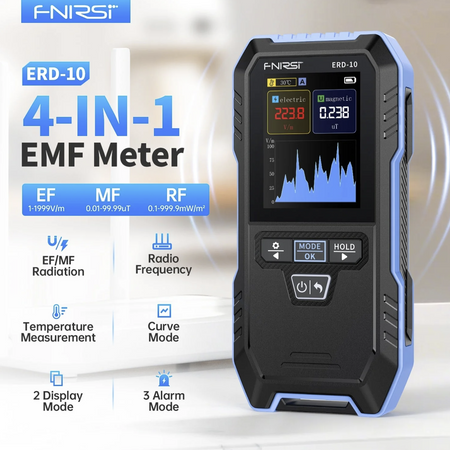

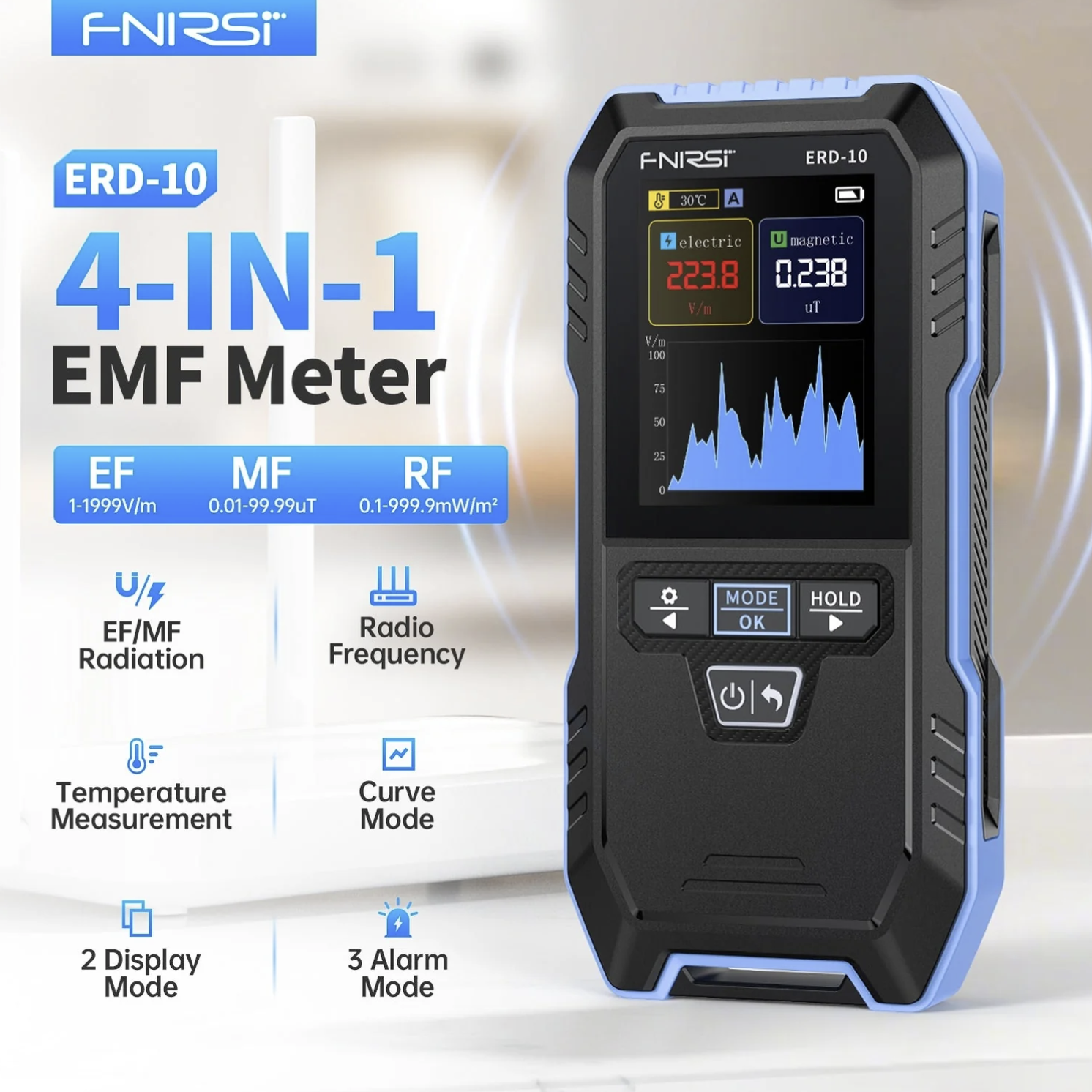

FNIRSI ERD-10 4-in-1 EMF Meter Electromagnetic Radiation Detector 2.4" Color TFT

(0)

FNIRSI ERD-10 4-in-1 Electromagnetic Radiation Detector – Portable EMF, RF, & Temperature Survey Meter with Live Curve Tracking

The FNIRSI ERD-10 is a professional-grade, multi-functional 4-in-1 electromagnetic radiation detector engineered to monitor, analyze, and map exposure to EMF and RF fields. Equipped with a brilliant 2.4-inch HD TFT full-color display, this handheld survey instrument comprehensively evaluates surrounding environments by tracking Electric Fields (EF), Magnetic Fields (MF), Radiofrequency (RF) power, and ambient temperature simultaneously.

Key Features:

  • 4-in-1 All-In-One Environmental Monitoring: Seamlessly measures Electric Field Strength, Magnetic Field Strength, Radiofrequency Radiation Power, and Ambient Temperature in a single pass.

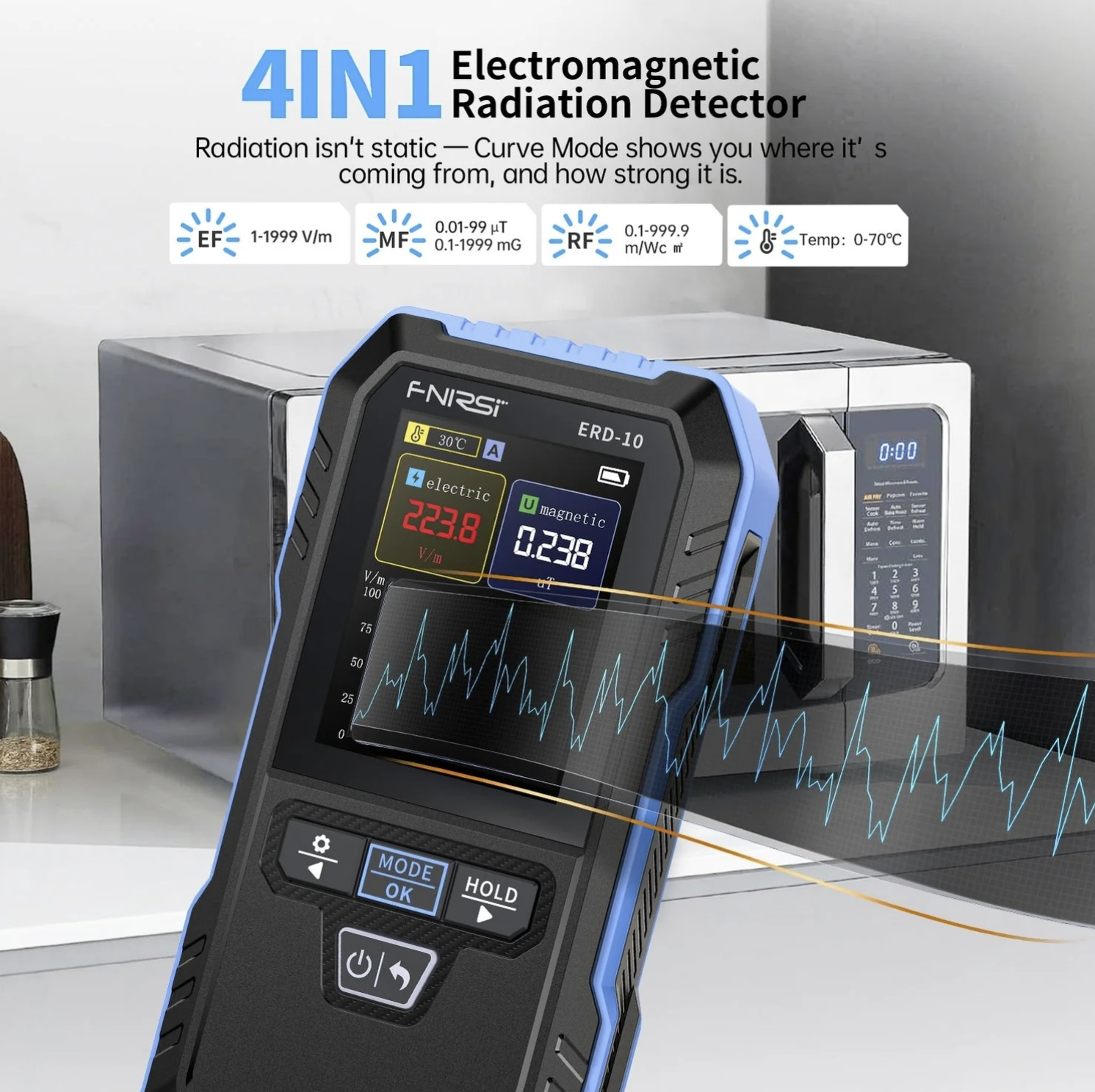

  • Real-Time Data Curve Mode: Features an advanced graphing mode that plots active changes over a live timeline, helping technicians trace emission sources and field fluctuations precisely.

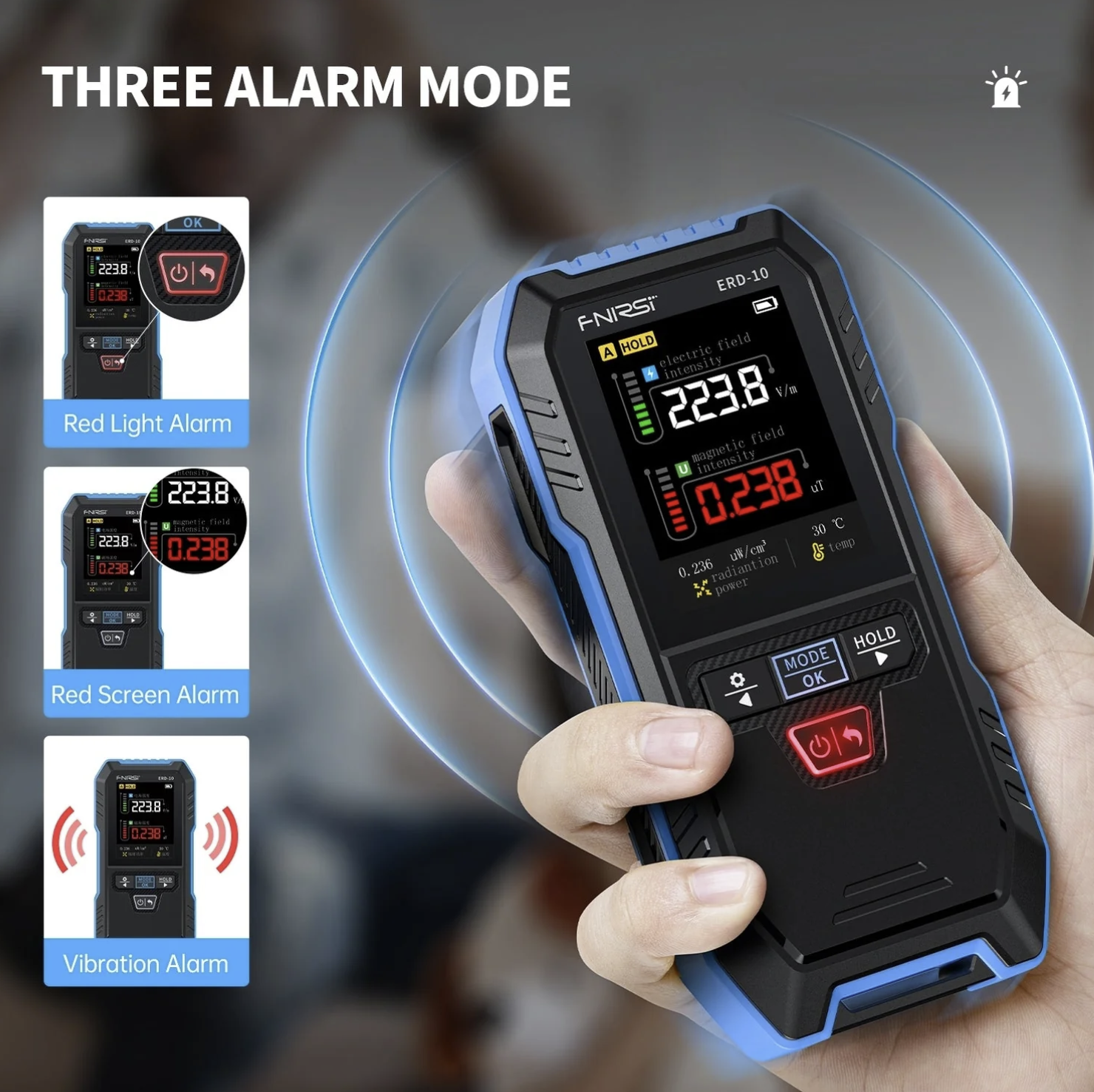

  • Triple Hazard Protection Alarm System: Provides instant audible (buzzer), visual (LED flash/red screen shift), and physical (vibration) alerts the moment preset safety thresholds are breached.

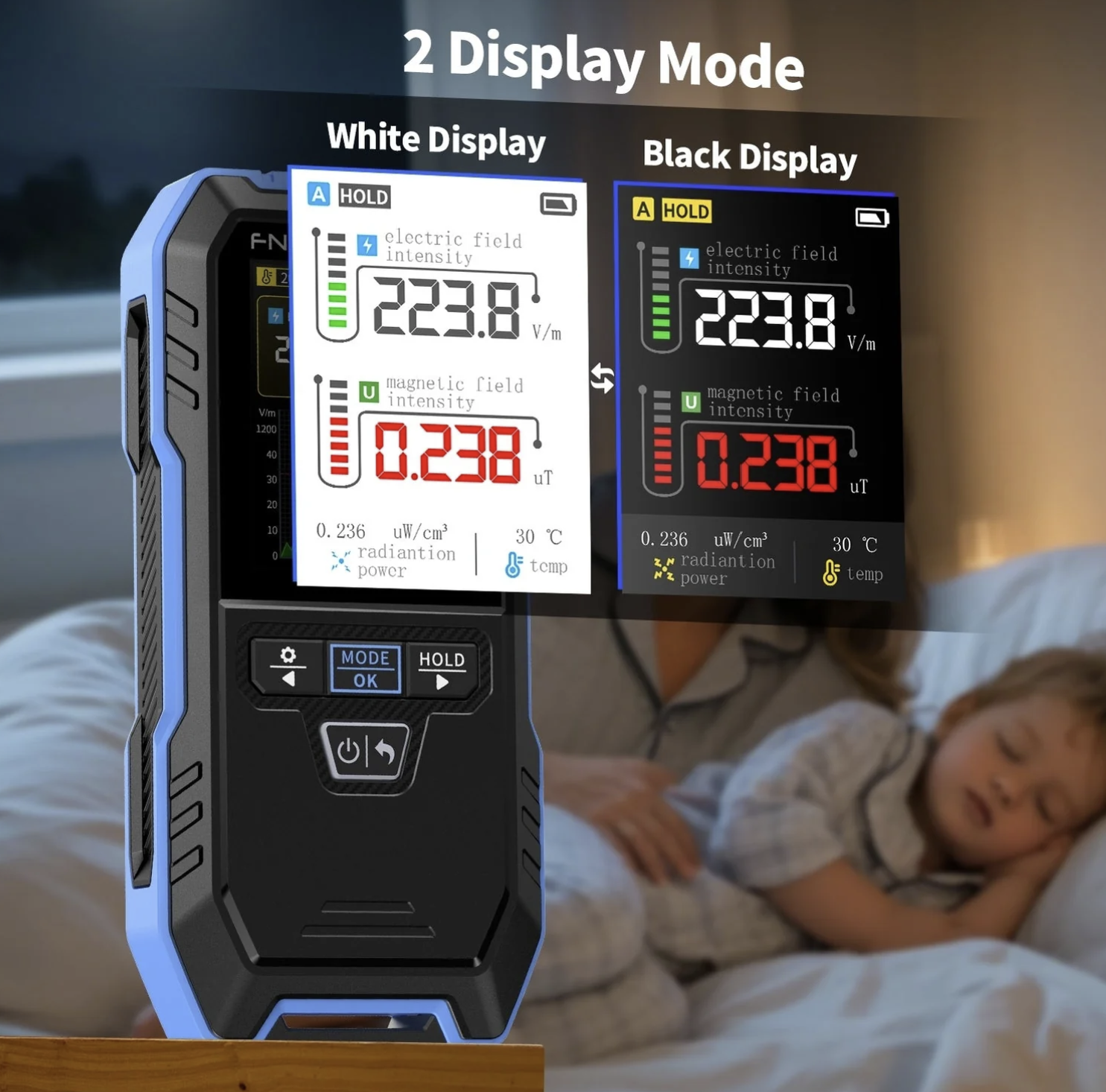

  • Day & Night Visual Themes: Supports a fast black-and-white theme layout toggle, ensuring maximum readability in sharp outdoor sunlight or dark workspace conditions.
  • Versatile Application Spectrum: Designed to audit domestic, commercial, and industrial areas containing Wi-Fi routers, 5G antennas (up to 3GHz), smart appliances, power lines, and electrical distribution boards.
  • Type-C Power Architecture: Powered by an eco-friendly, built-in 1000mAh lithium-polymer battery with universal USB Type-C charging—eliminating standard dry-cell replenishment down-time.
  • Type Electromagnetic Tester
Rs. 3,800.00 incl. taxes
Only 2 left
Low inventory - Hurry up!
Ready to work out of the box!

All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!

Warranty and returns?

All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.

Got Questions? Feel free to get in touch.

Product Overview

Take control of industrial and domestic safety assessments with the FNIRSI ERD-10 Handheld EMF Meter. Radiation parameters aren’t static—which is why standard digital meters often miss erratic spikes. The ERD-10 solves this problem with its built-in time-domain Curve Mode, giving engineering professionals and health-conscious operators a continuous, graphic view of local signal density. Weighing an ultra-portable 143g and enclosed in a rugged, pocket-friendly frame, it is the ideal tool for fast field audits, workplace health and safety compliance, and appliance leakage validation.

Technical Specifications Matrix

Parameter Monitored Measurement Range Resolution Default Alarm Threshold
Electric Field (EF) 1 V/m to 1999 V/m 1 V/m 40 V/m
Magnetic Field (MF) 0.01 μT to 99.99 μT (0.1 to 999.9 mG) 0.01 μT (0.1 mG) 0.4 μT (4.0 mG)
Radiofrequency Power (RF) 0.2 mW/cm² to 1000 mW/cm² 0.1 mW/cm² 50 mW/cm²
Frequency Response Range 50 MHz to 3000 MHz (3 GHz) — —
Environmental Temperature 0°C to 70°C (32°F to 158°F) 1°C Custom Configurable

General Specifications & Hardware Details

  • Display Screen Type: 2.4-inch High-Definition TFT Full-Color Panel

  • Adjustable Interface: Multi-level screen backlight brightness configuration

  • Dual Language Firmware: English / Chinese operation menus

  • Data Control: One-click Data Hold (HOLD) capability to capture peak environment levels

  • Auto Power-Off (APO): Selectable power-saving timer intervals (OFF / 5 min / 10 min / 15 min)

  • Rechargeable Battery Supply: Built-in 3.7V, 1000mAh Lithium Polymer cell

  • Charging Standard: USB Type-C interface (5V / 1A)

  • Body Form Factor: ≈ 143mm x 68mm x 29mm

  • Net Instrument Weight: ≈ 143 grams

Targeted Industrial & Field Applications

  • Commercial Workplace Safety Auditing: Perfect for screening telecom rooms, IT server arrays, and electrical distribution panel areas for compliance with workplace exposure parameters.

  • Telecommunication Maintenance: Identify and trace RF signals, wireless network densities, Wi-Fi router outputs, and active cellular transceiver beams below 3GHz.

  • Domestic Safety Screening: Instantly spot and address high-leakage zones around household microwave ovens, induction cooktops, refrigerators, and entertainment entertainment consoles.

Package Contents

  • 1 x FNIRSI ERD-10 Handheld EMF/RF Radiation Detector

  • 1 x USB Type-C Charging Data Cable

  • 1 x English User Instruction Manual

  • 1 x Protective Hardware Packaging Box
