Home » FNIRSI DMC-100 Digital Clamp Meter Multimeter True RMS 600A AC/DC
Fnirsi

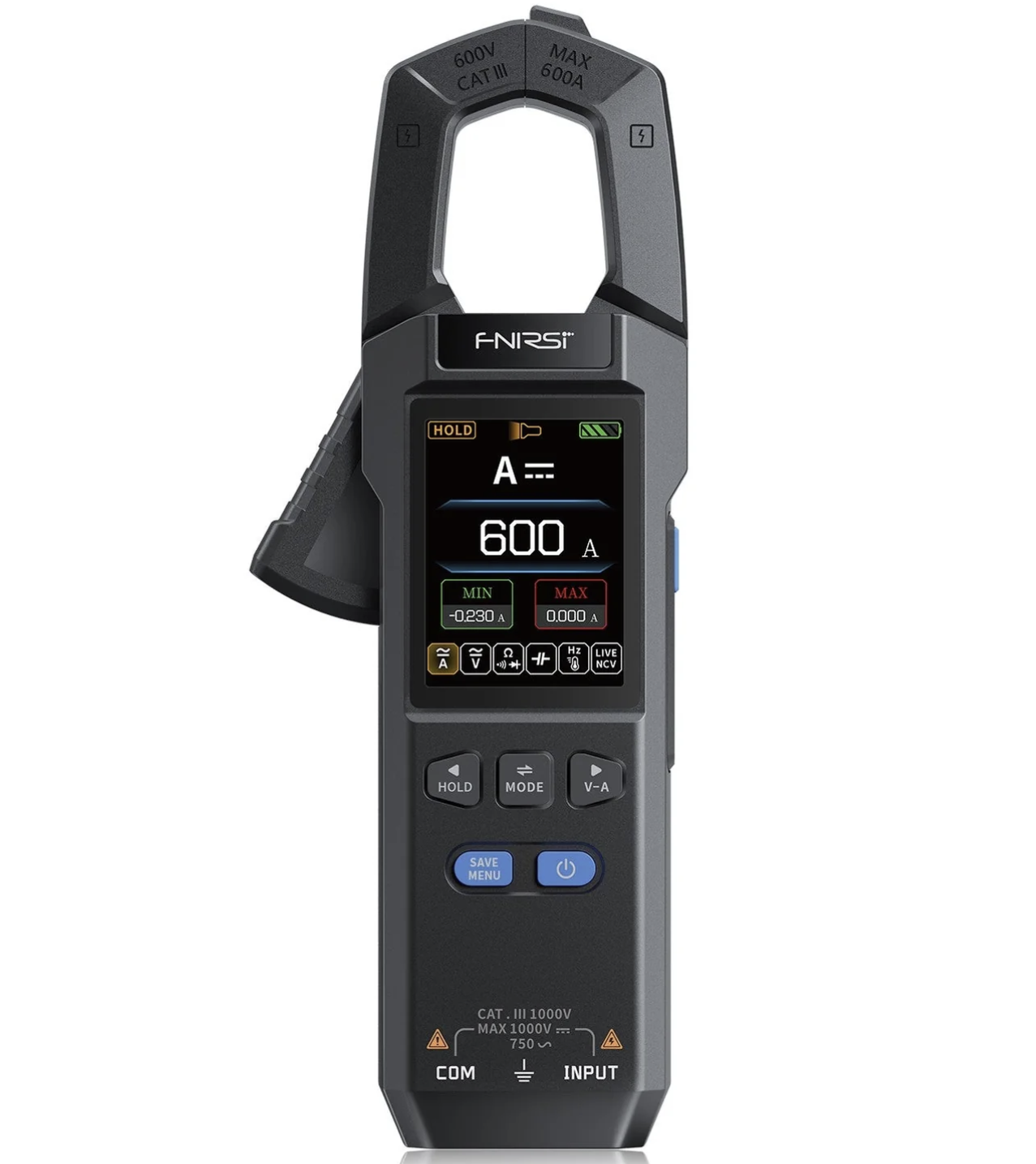

FNIRSI DMC-100 Digital Clamp Meter Multimeter True RMS 600A AC/DC

(0)

The FNIRSI DMC-100 is an advanced, high-precision intelligent clamp multimeter engineered for industrial maintenance, laboratory testing, automotive overhaul, and commercial electrical diagnostics. Combining a high-resolution 2.0-inch TFT full-color display with multi-functional tracking, this 10,000-count smart instrument measures up to 750V AC / 999.9V DC voltage and 600A AC/DC current safely and effortlessly.

Key Features:

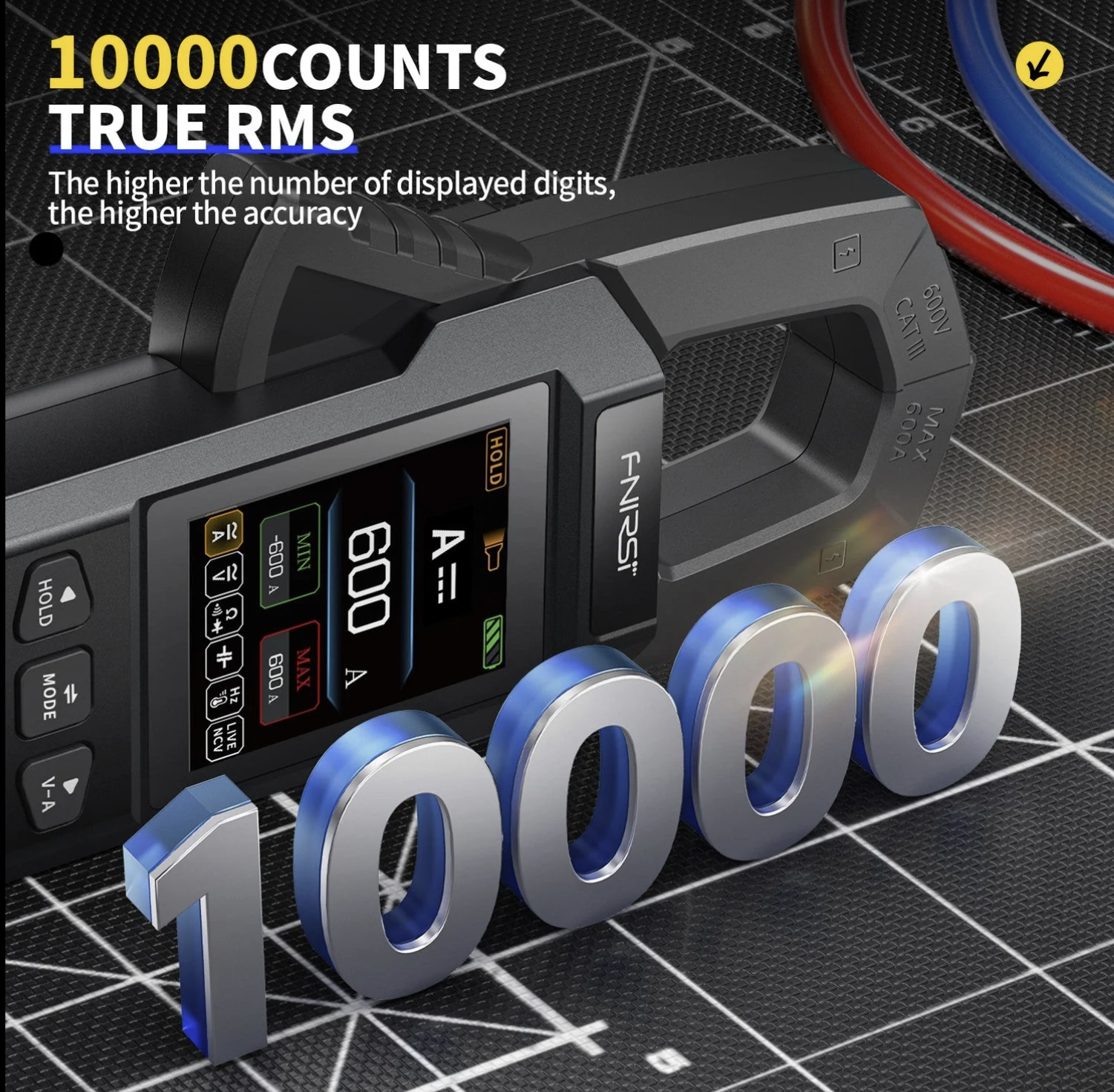

  • 10,000-Count True RMS Precision: Ensures hyper-accurate, reliable data across complex, non-linear electrical environments.
  • Intuitive 2.0" Color TFT UI: Equipped with a vibrant 240x320 screen presenting live parameters and real-time data curves/waveforms at a glance.

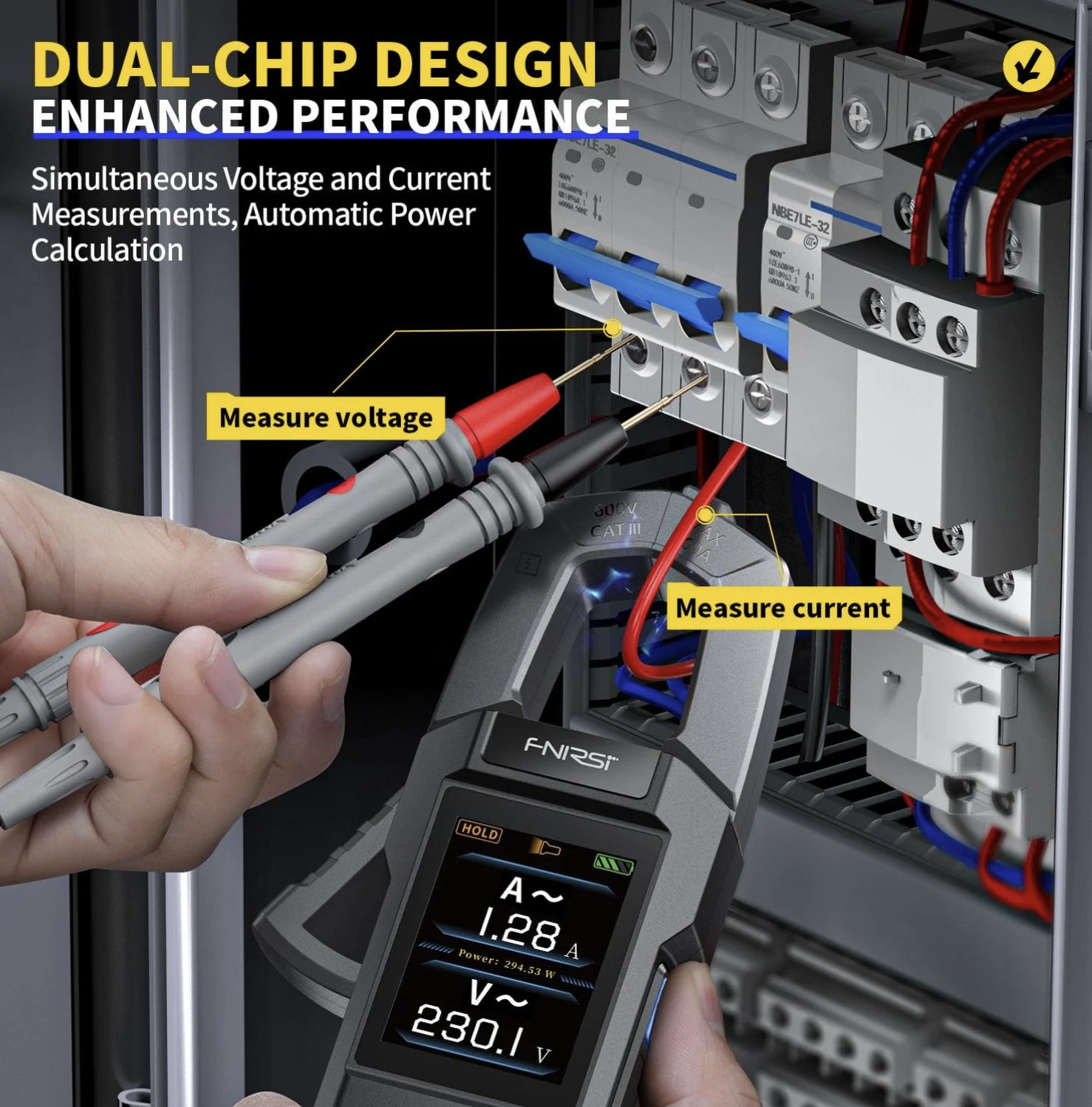

  • 3 Versatile Operating Modes: Easily switch between General Measurement, Waveform Display (Live Recording), and Power Calculation modes.

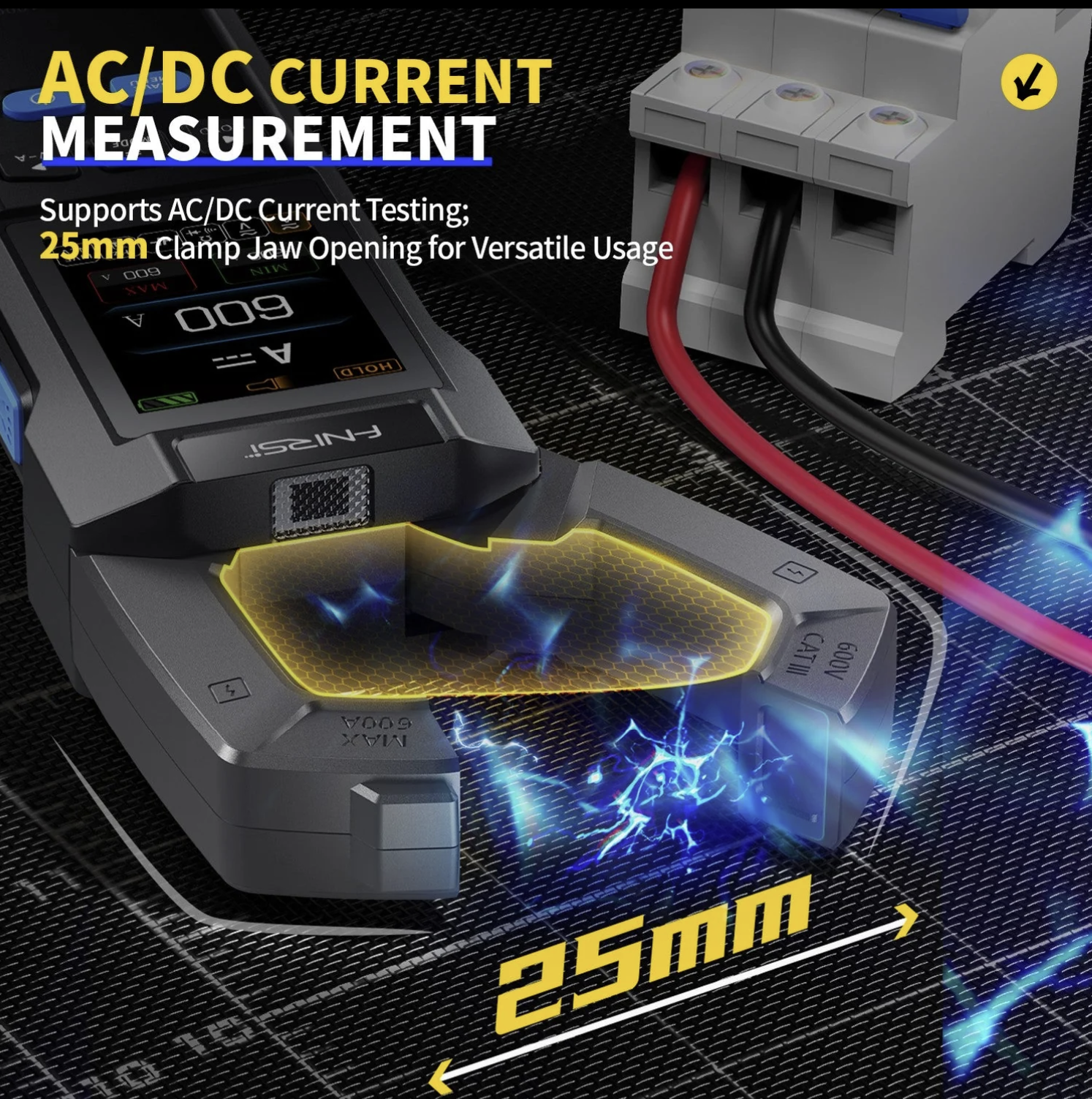

  • Full AC/DC Clamping: Supports comprehensive non-contact AC and DC current tracking up to 600A via a durable 25mm jaw size.
  • Integrated Safety & Diagnostic Features: Non-Contact Voltage (NCV) detection, Zero/Live wire identification, Data Hold, and Max/Min reading capture.
  • Eco-Friendly Rechargeable Battery: Powered by a built-in 3.7V 1500mAh lithium battery with convenient USB Type-C charging—eliminating standard dry-cell battery costs.
  • Type Digital Clamp Meter
Rs. 3,800.00 incl. taxes
In stock
In stock
Ready to work out of the box!

All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!

Warranty and returns?

All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.

Got Questions? Feel free to get in touch.

Product Overview

Take your testing efficiency to the next level with the FNIRSI DMC-100 Digital Clamp Multimeter. Unlike standard black-and-white clamp meters, the DMC-100 provides integrated time-domain graphing capabilities. This allows technicians to track fluctuating resistance, capacitance, and current spikes smoothly over a live trend curve. Encased in a rugged, lightweight 194g housing, it is the ultimate tool for modern engineering operations that demand speed, safety, and thorough data analysis.

Technical Specifications

Parameter / Function Measurement Range Accuracy
DC Voltage 9.999V / 99.99V / 999.9V ±(0.5% + 3 digits)
AC Voltage 9.999V / 99.99V / 750.0V ±(1.0% + 3 digits)
DC Current (Clamp) 99.99A / 600.0A ±(2.5% + 10 digits)
AC Current (Clamp) 4.000A / 40.00A / 600.0A ±(2.5% + 10 digits)
Resistance 999.9Ω to 99.99MΩ ±(1.5% + 3 digits)
Capacitance 9.999nF to 99.99mF ±(2.0% + 5 digits)
Frequency 9.999Hz to 9.999MHz ±(0.1% + 2 digits)
Temperature -55°C to 1300°C (-67°F to 2372°F) ±(2.5% + 5 digits)

General Specifications & Hardware Details

  • Display Screen: 2.0-inch TFT Color Display (240 x 320 Pixels)

  • Jaw Opening Capacity: Maximum 25 mm

  • Internal Memory Storage: Saves and reviews up to 30 historical data groups

  • Screen Brightness: 10-level adjustable brightness for bright sunlight or dark control rooms

  • Built-In Torch: High-illumination flashlight for dark, tight electrical panels

  • Auto Power-Off (APO): Selectable options (OFF / 5 min / 15 min / 30 min) to conserve power

  • Power Supply: Rechargeable 3.7V, 1500mAh Lithium Battery

  • Charging Interface: Type-C USB (5V / 1A)

  • Firmware Upgrades: Supported via Type-C port connection

  • Dimensions & Weight: 193mm x 74mm x 32mm | Net Weight: 194g

Industrial Applications

  • HVAC Systems & Motor Testing: Rapidly diagnose active startup currents, circuit loads, and mechanical temperature parameters.

  • Industrial Automation Maintenance: Visualize real-time signal loops and resistance variations via time-domain curve logs.

  • Renewable Energy Maintenance: Perfect for testing high DC voltages and currents across solar PV installations and battery banks.

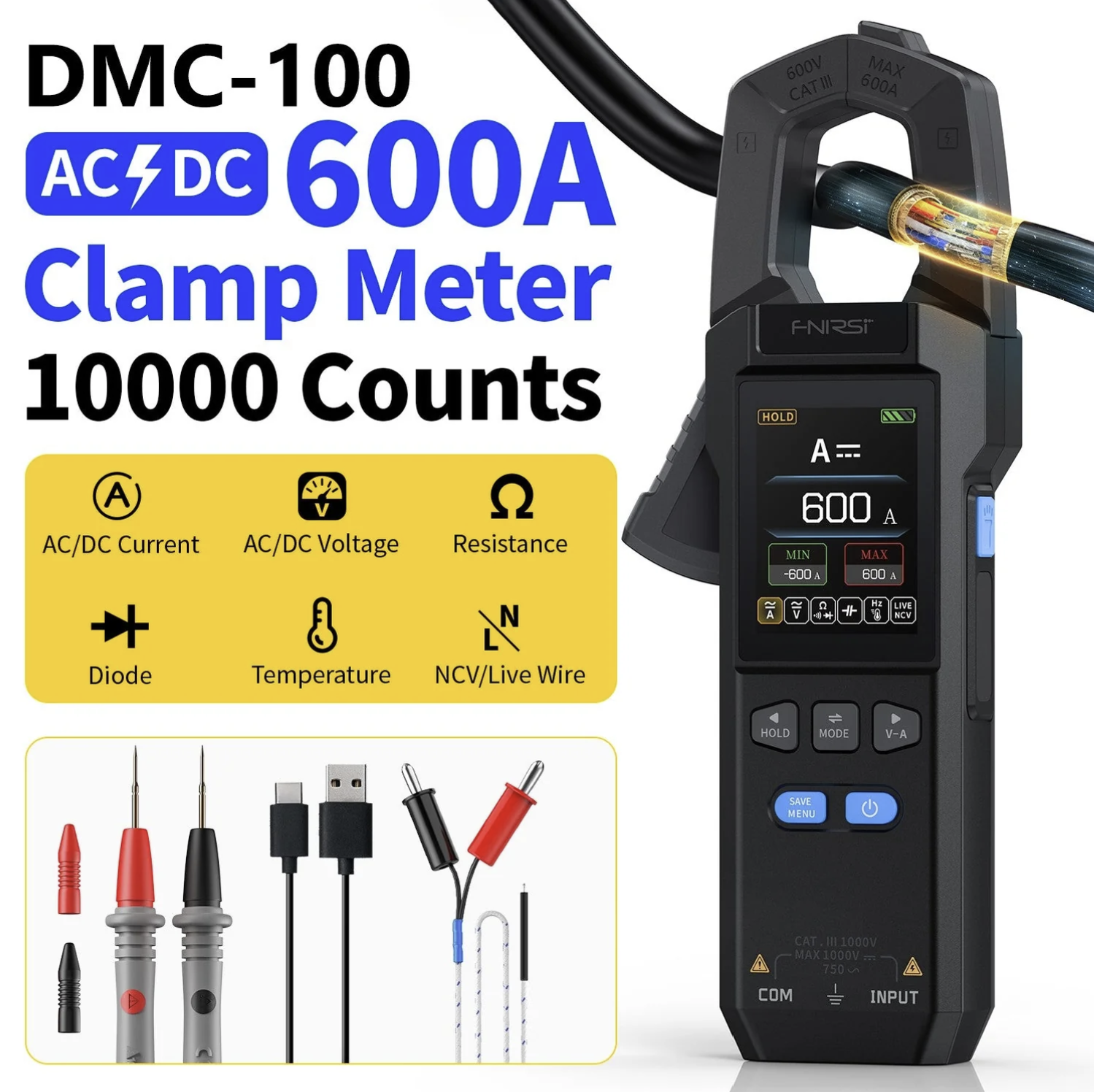

Package Contents

  • 1 x FNIRSI DMC-100 Smart Clamp Multimeter

  • 1 x High-Quality Test Leads Pair (Multimeter Pens)

  • 1 x Point-Type Temperature Probe

  • 1 x USB Type-C Charging Cable

  • 1 x Instruction Manual & Protective Carrying Storage Case
