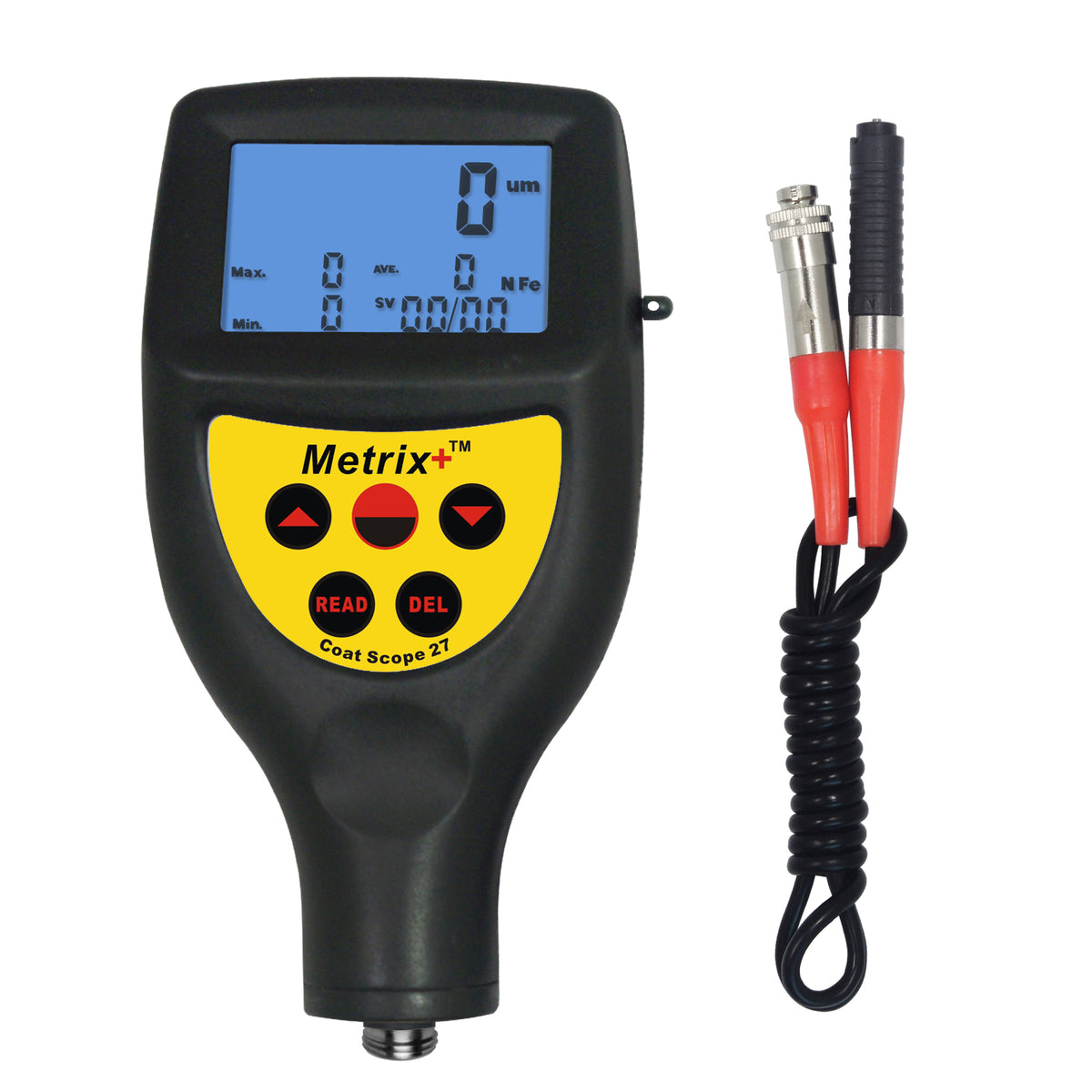

Metrix+ Coat Scope 27 Coating Thickness Gauge 0-2000um F/NF

(0)

Coating thickness gauge for ferrous and non-ferrous substrates with 0-2000um range and standards-based measurement. Ideal for automotive paint checks, powder coating, galvanizing and production quality control.

Features:

  • Unique single probe for F and NF substrates with automatic substrate recognition.
  • Zero-point calibration and multi-point calibration.
  • Data storage and recall.
  • Statistics of max, min and avg value of readings calculated and displayed.
  • Backlit LCD display.
  • Metric/imperial conversion.
  • Single and continuous measuring modes.
  • Type Coating Thickness Gauges
Rs. 31,152.00 incl. taxes
In stock
In stock
Ready to work out of the box!

All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!

Warranty and returns?

All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.

Got Questions? Feel free to get in touch.

Technical Specifications:

Model Metrix+ Coat Scope 27
International Standard It meets the standards of both ISO 2178 and ISO 2361 as well as DIN, ASTM and BS.
Measuring principle Magnetic induction(F) & Eddy current(NF)
Display 4 digits backlit LCD
Measuring range 0 - 2000um (0 - 80mils)
Accuracy ±1-3%n or +2.5um
Resolution 0.1um(0~99.9um); 1um(over 100um)
Metric/Imperial Selectable
Minimum curvature radius  F : 1.5mm(convex) ; 25mm(concave)
NF : 3mm(convex) ; 50mm(concave)
Minimum measuring area Diameter 6mm
Minimum thickness of substrate 0.3mm
Memory storage and recall 99 groups of measurement
Statistics Max, min and avg value of readings
Additional features Low Battery Indicator, Auto power off
Power supply 2 x 1.5V AAA(UM 4) battery
Operation environment Temperature: 0 to 50℃ ;  Humidity: < 95%
Size & Weight 130mm × 65mm × 35mm; 90g(not including batteries)
Standard Accessories Coating Thickness Gauge, F/NF combine probe,  ‘0’ calibration blocks, standard foils, technical manual, hard carry case.
Optional Accessories PC interface(cable and software)





Applications:

This Gauge is designed for non-destructively measuring the thickness of coatings on ferrous and non-ferrous substrates. It can be used to measure thickness of paint, galvanizing layer, lacquer layer, porcelain enamel, phosphide layer, copper tile, anodizing layer, varnish, plastic coatings, powder, etc.


Measuring Principle:

This instrument has a unique single external probe which uses the principle of electromagnetic induction to measure the thickness of non-magnetic coatings on magnetic substrates and eddy current principle to measure thickness of non-magnetic coatings on non-magnetic substrates.
