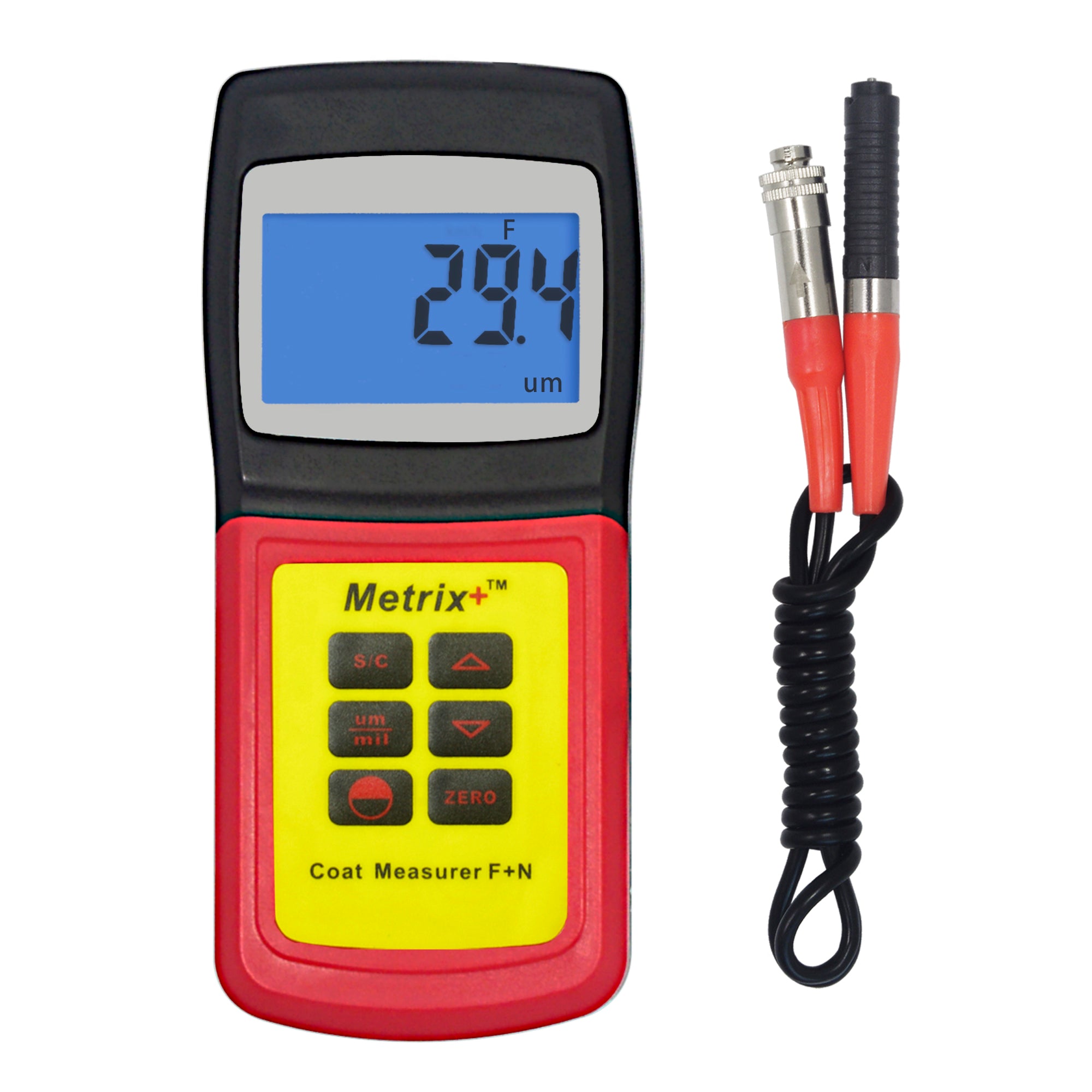

Coat Measurer F+N

(0)

Flexible probe Digital Coating Thickness Meter to measure the thickness of coatings on ferrous and non-ferrous substrates upto 1250um.

Features:

  • Flexible probe for smaller surfaces
  • Backlit display for better readability
  • Zero-point calibration and multi-point calibration
  • Two measure modes: single and continuous
  • Selectable um/mil measuring units
  • Type Coating Thickness Gauges
Rs. 24,072.00 incl. taxes
In stock
In stock

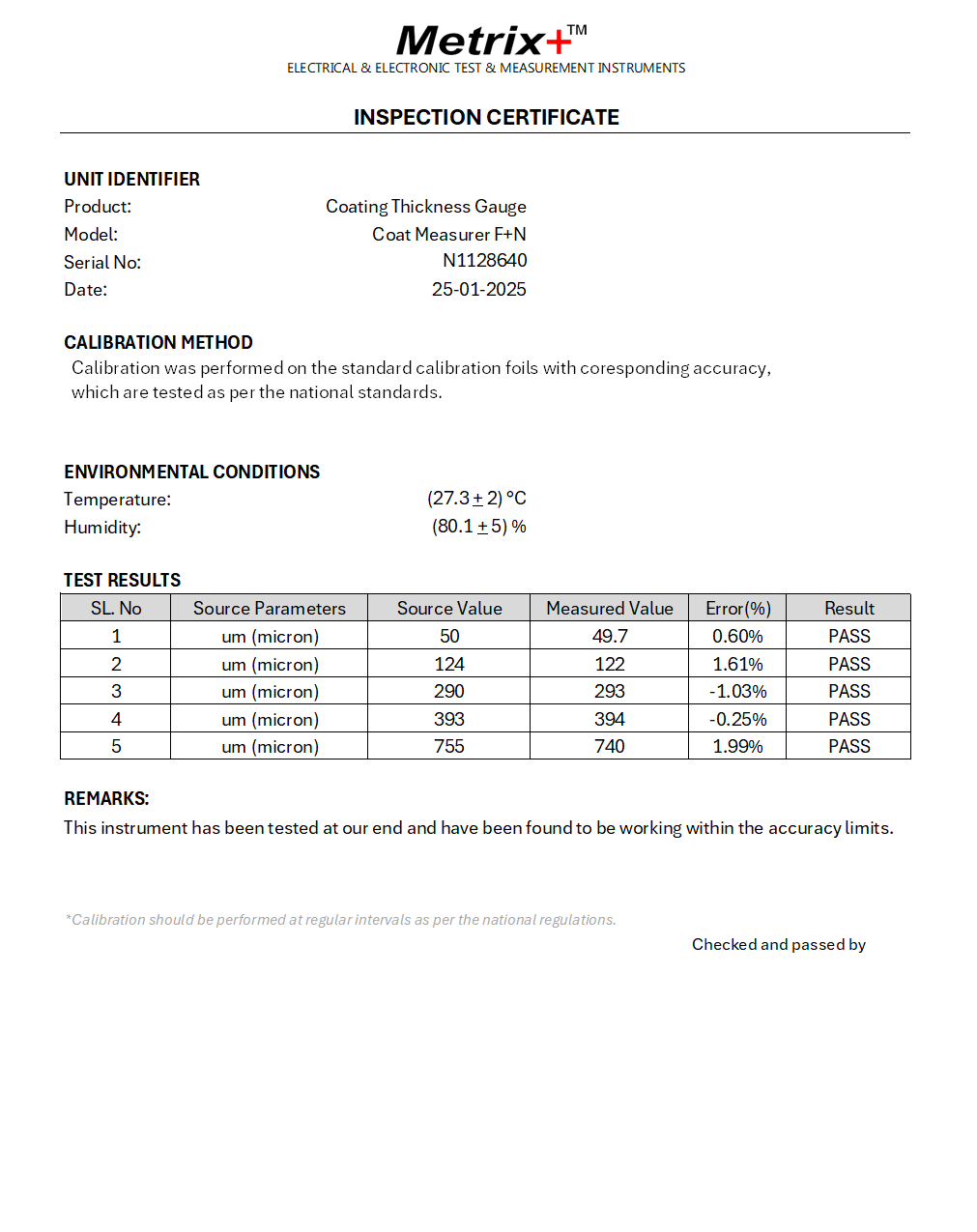

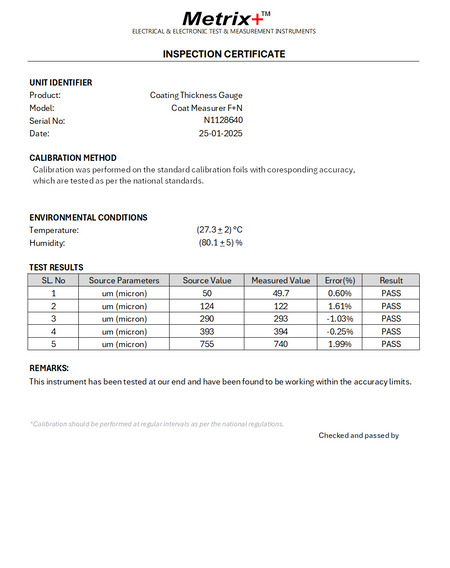

Inspection certificate

This meter comes with our in-house inspection certificate. For NABL calibration report, we levy extra charges and it takes 7-10 days for dispatch. Please contact us for NABL calibration requirement.

Ready to work out of the box!

All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!

Warranty and returns?

All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.

Got Questions? Feel free to get in touch.

Technical Specifications:

Model

Metrix+ Coat Measurer F+N

International Standard

It meets the standards of both ISO 2178 and ISO 2361 as well as DIN, ASTM and BS.

Measuring principle

Magnetic induction(F) & Eddy Current(nF)

Display

4 digits backlit LCD

Measuring range

0 - 1250um (0 - 50mils)

Accuracy

±1-3%n or +2.5um

Resolution

0.1um(0~99.9um); 1um(over 100um)

Units

um /mils

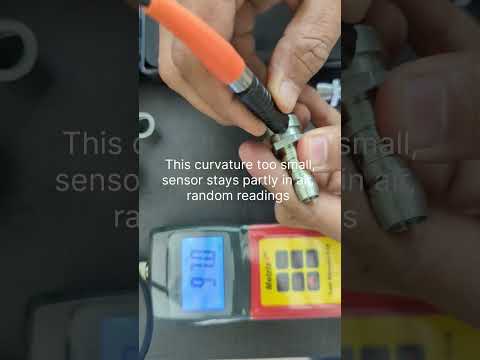

Minimum curvature radius

3mm(convex), 50mm(concave)

Minimum measuring area

Diameter 8mm

Minimum thickness of substrate

0.3mm

Additional features

Low Battery Indicator, Auto power off

Power supply

4 x 1.5V AAA battery

Operation environment

Temperature: 0 to 50℃ ;  Humidity: < 95%

Size & Weight

145mm × 65mm × 25mm; 145g(not including batteries)

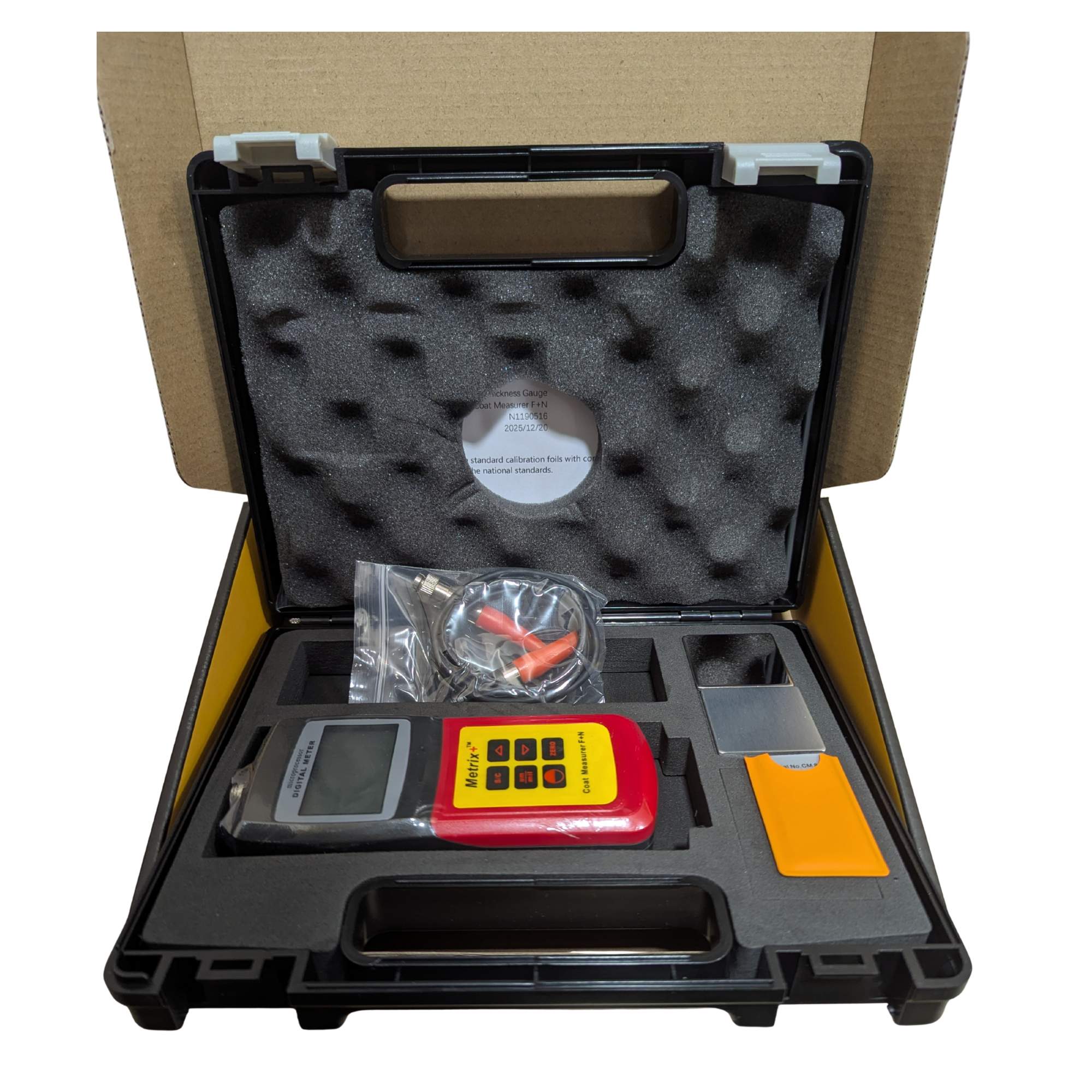

Standard Accessories

Coating Thickness Gauge, F/nF probe,  ‘0’ calibration block, standard foils, batteries, technical manual, hard carry case.

Optional Accessories

PC interface(cable and software)








Applications:

This Gauge is designed for non-destructively measuring the thickness of coatings on ferrous and non-ferrous substrates. It can be used to measure thickness of paint, galvanizing layer, lacquer layer, porcelain enamel, phosphide layer, copper tile, anodizing layer, varnish, plastic coatings, powder, etc.


Measuring Principle:

This instrument has a unique single external probe which uses the principle of electromagnetic induction to measure the thickness of non-magnetic coatings on magnetic substrates and eddy current principle to measure thickness of non-magnetic coatings on non-magnetic substrates.
