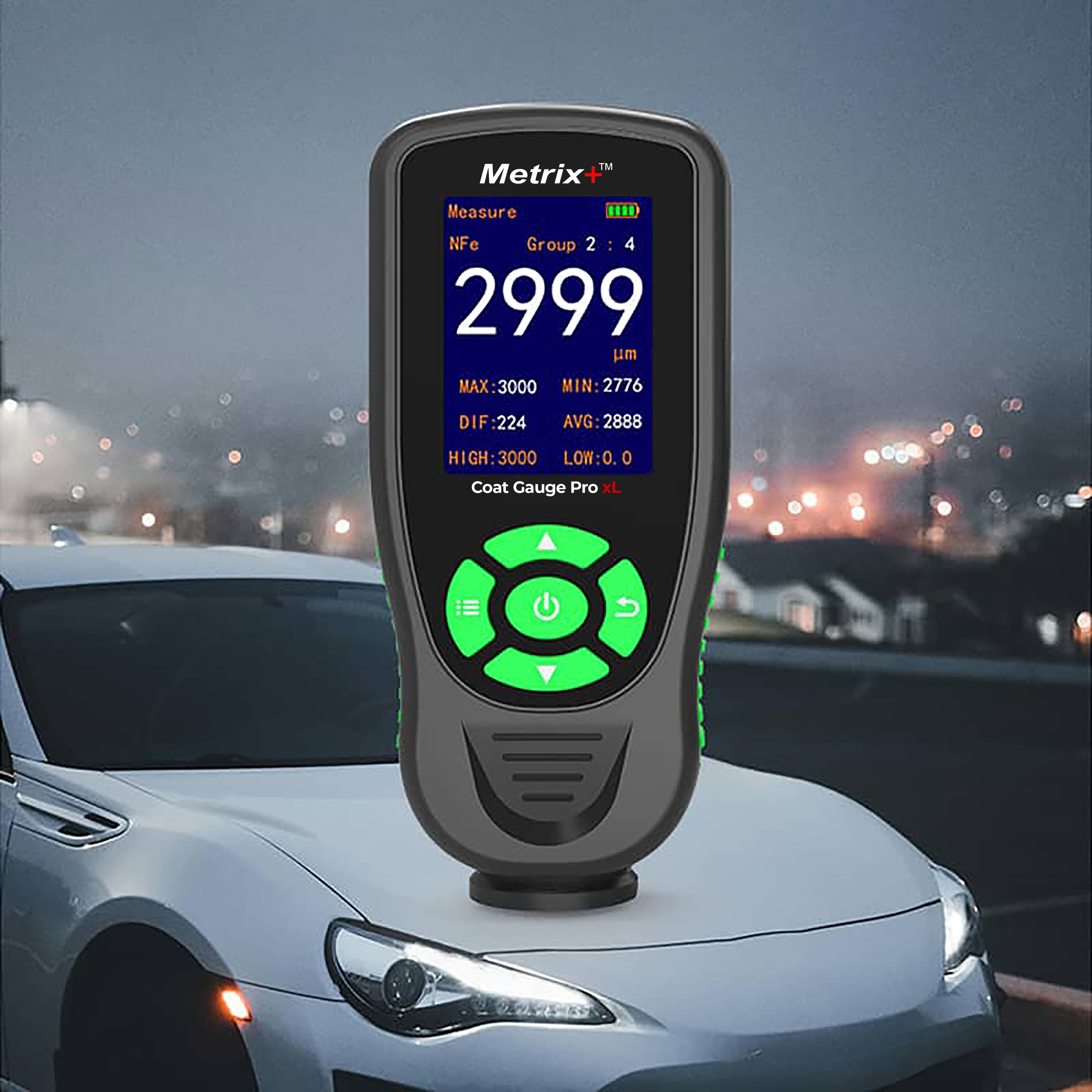

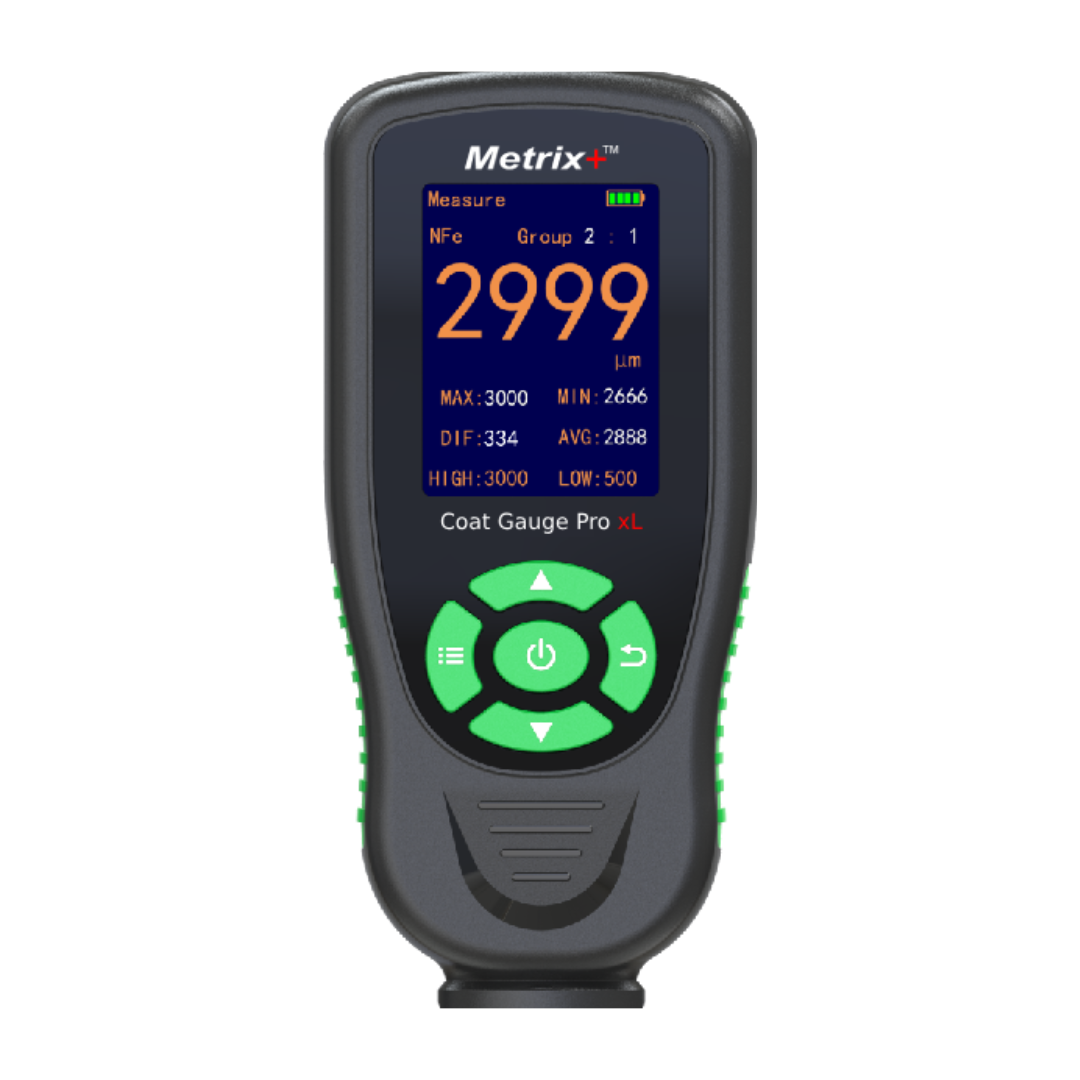

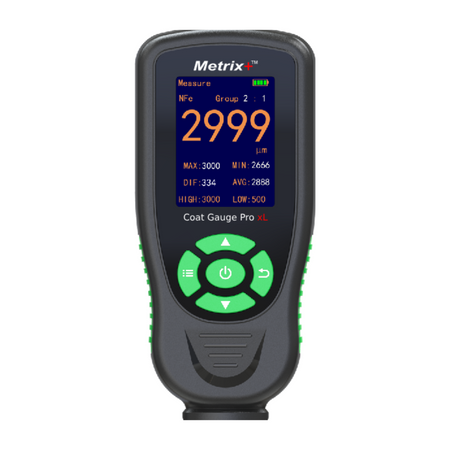

Metrix+ Coat Gauge Pro xL Coating Thickness Gauge 0-3000um F/NF

(0)

Coating thickness gauge for ferrous and non-ferrous substrates with extended 0-3000um range, statistics and grouped storage. Ideal for industrial coatings, galvanizing, powder coating and paint thickness inspection.

Features:

  • High measuring range upto 3000um
  • Compact, ergonomic, integrated probe design
  • Statistics display with data storage in batch structure
  • Negative dot-matrix color display for better readability at all angles
  • Metal putty detection and notification, which may affect thickness measurements
  • Non-metallic and over-range prompts
  • Galvanized plating detection
  • On-screen guide for calibration process
  • Inbuilt battery with Type-C charging
  • Type Coating Thickness Gauges
Rs. 12,500.00 incl. taxes
-10% Rs. 13,924.00 Rs. 12,500.00 incl. taxes
In stock
In stock
Ready to work out of the box!

All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!

Warranty and returns?

All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.

Got Questions? Feel free to get in touch.

Technical Specifications:

Model

Metrix+ Coat Gauge Pro xL

Measuring principle

Magnetic induction(F) & Eddy Current(NF)

Measuring range

0 - 3000um

Accuracy

0 ~ 1000um: ±(3% + 1um)

>1000um: ±(5% + 1um)

Resolution

0.1um (0~99.9um)

1um (> 100um)

Calibration

Zero point and multi-point calibration

Storage

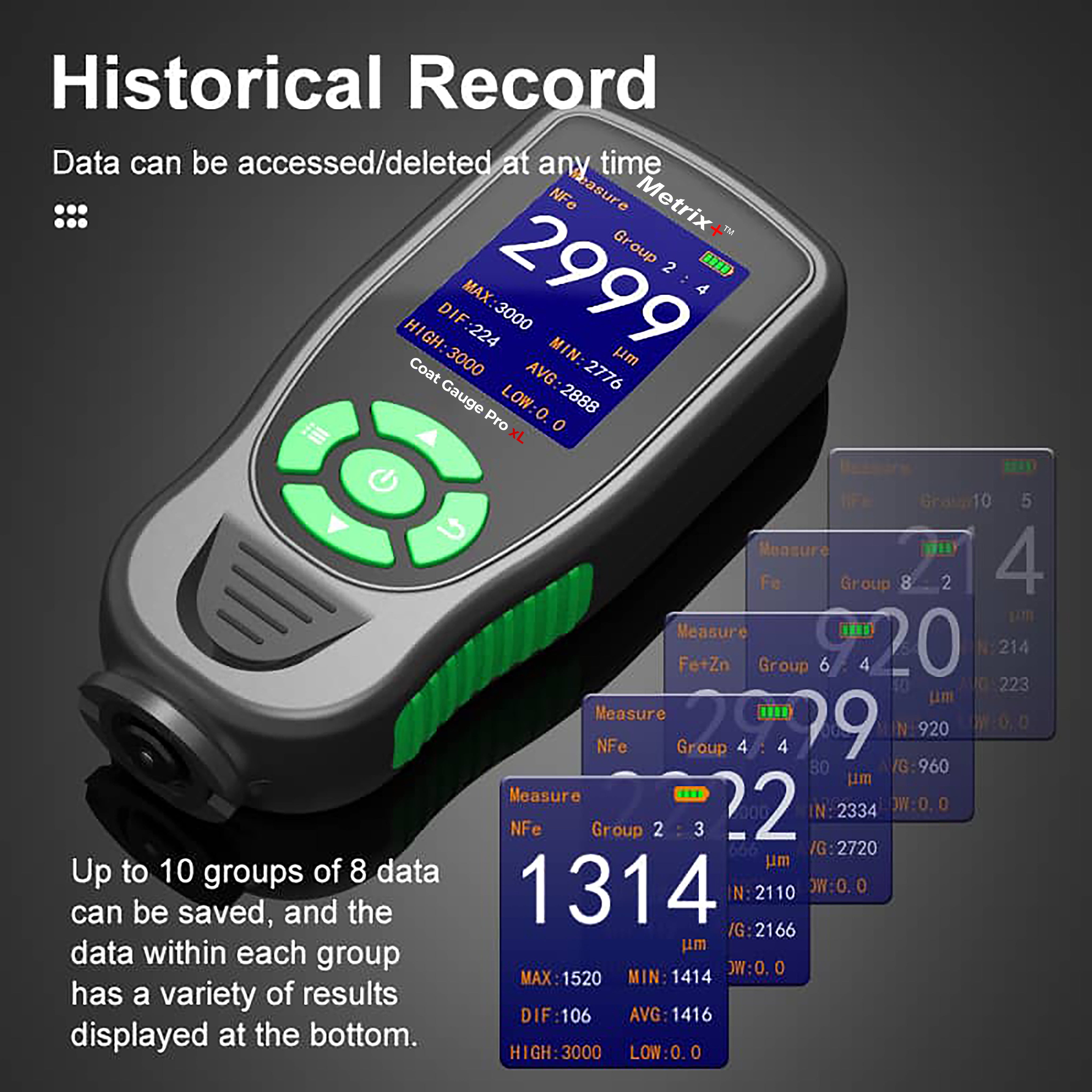

8 data x 10groups storage with statistics of each group

Statistics

Max, Min, Diff, Avg

Units

um, mils

Minimum surface diameter

5mm(convex)

5mm(concave)

Minimum measuring area

6 x 6mm

Minimum thickness of substrate

0.40mm

Power supply

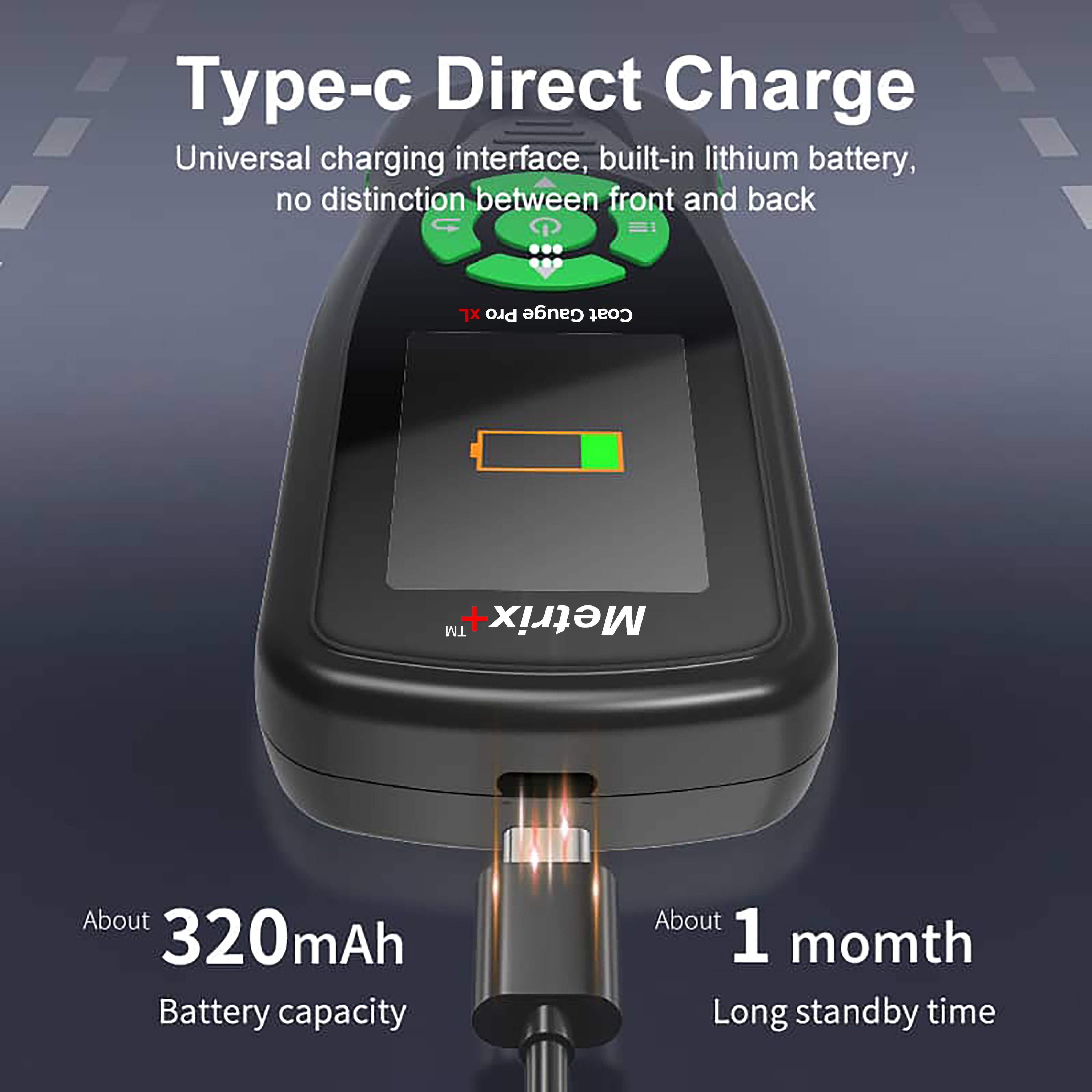

In-built battery with Type C charging

Operation environment

Temperature: -20 to 40℃

Humidity: 20 ~ 90% RH

Size

120mm × 55mm × 23mm

Weight

175g

Standard Accessories

Coating Thickness Gauge, ‘0’ calibration blocks, standard foils, cloth bag, charging cable, technical manual, hard carry case.



Applications:

The instrument is designed for measuring the thickness of paint, galvanized layer, chrome layer, anodized layer, lacquer, epoxy, powder coatings, other electroplating on ferrous substrates (iron, etc.) and non-ferrous substrates (aluminum, etc.).


Measuring Principle:

This instrument has an integrated probe which uses the principle of electromagnetic induction to measure the thickness of non-magnetic coatings on magnetic substrates and eddy current principle to measure thickness of nonconductive coatings on non-magnetic substrates.
