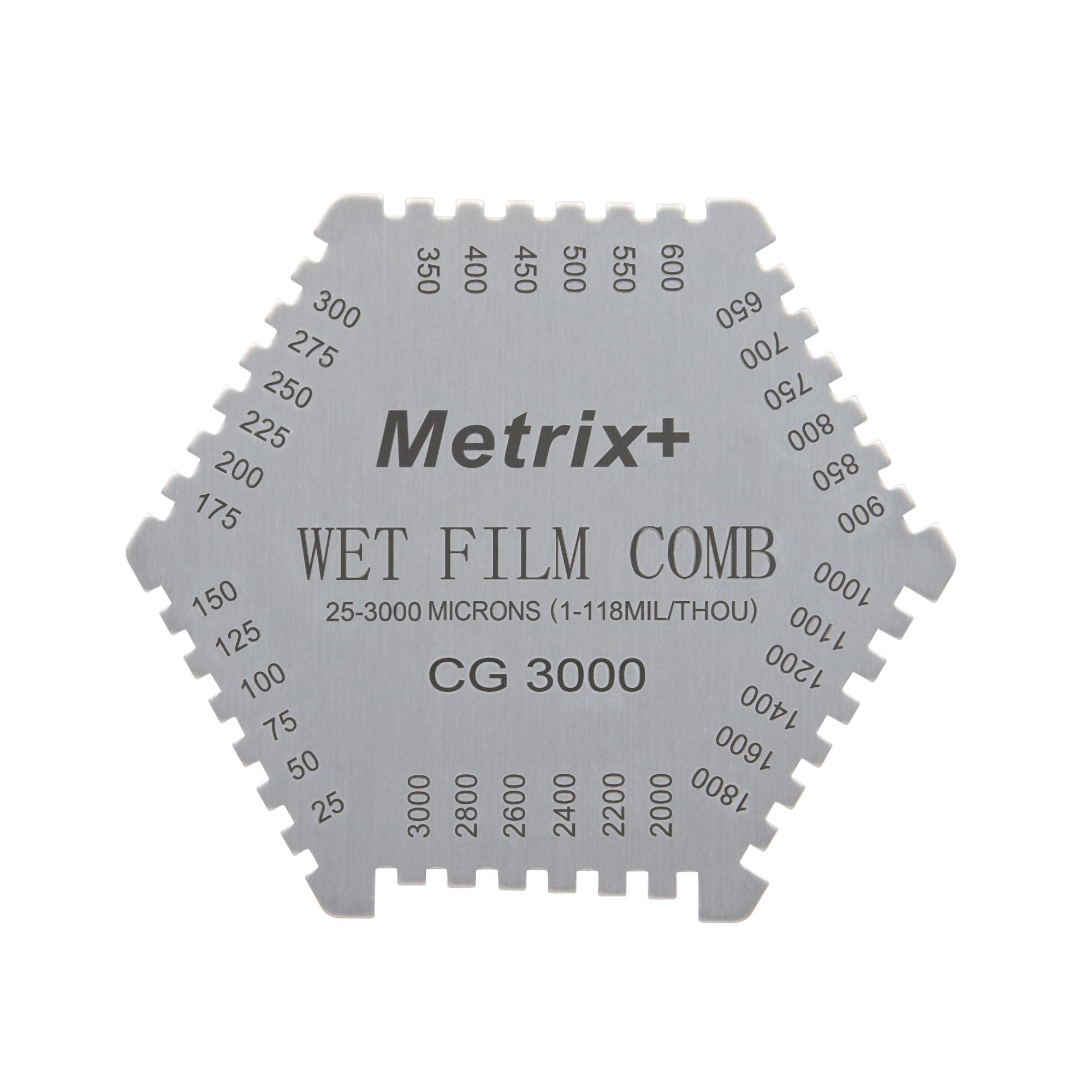

Metrix+ CG 3000 Wet Film Thickness Gauge Comb 25-3000um

(0)

Wet film thickness gauge comb for checking freshly applied paint, varnish, lacquer, adhesive and architectural coatings up to 3000um. Useful in paint shops, coating lines, production and process control.

  • Type Coating Thickness Gauges
Rs. 850.00 incl. taxes
In stock
In stock
Ready to work out of the box!

All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!

Warranty and returns?

All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.

Got Questions? Feel free to get in touch.

Technical Specifications:

Model Metrix+ CG 3000
Measuring range 25 ~ 3000um (1 ~ 118mil)
Values(um) 25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300,
350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850,
900, 1000, 1100, 1200, 1400, 1600, 1800, 2000, 2200,
2400, 2600, 2800, 3000µm
Values(mil) 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14 ,16, 18, 20, 22, 24,
26, 28, 30, 31, 33, 35, 39, 43, 47, 55, 63, 71, 79, 87, 94,
102, 110, 118mil

Applications:

This is used for checking the coating thickness of wet paint, enamel lacquer, adhesive, architectural coating, color coating, varnish, chemical industry, or other coating that has been applied to a smooth surface.


Measuring Principle:

1. Select comb according to approximate thickness.
2. Hold comb perpendicular to coating to be measured.
3. Press into coating until the comb stands square.
4. Wet film thickness is between the highest step coated and the next (higher) step which remains uncoated.
