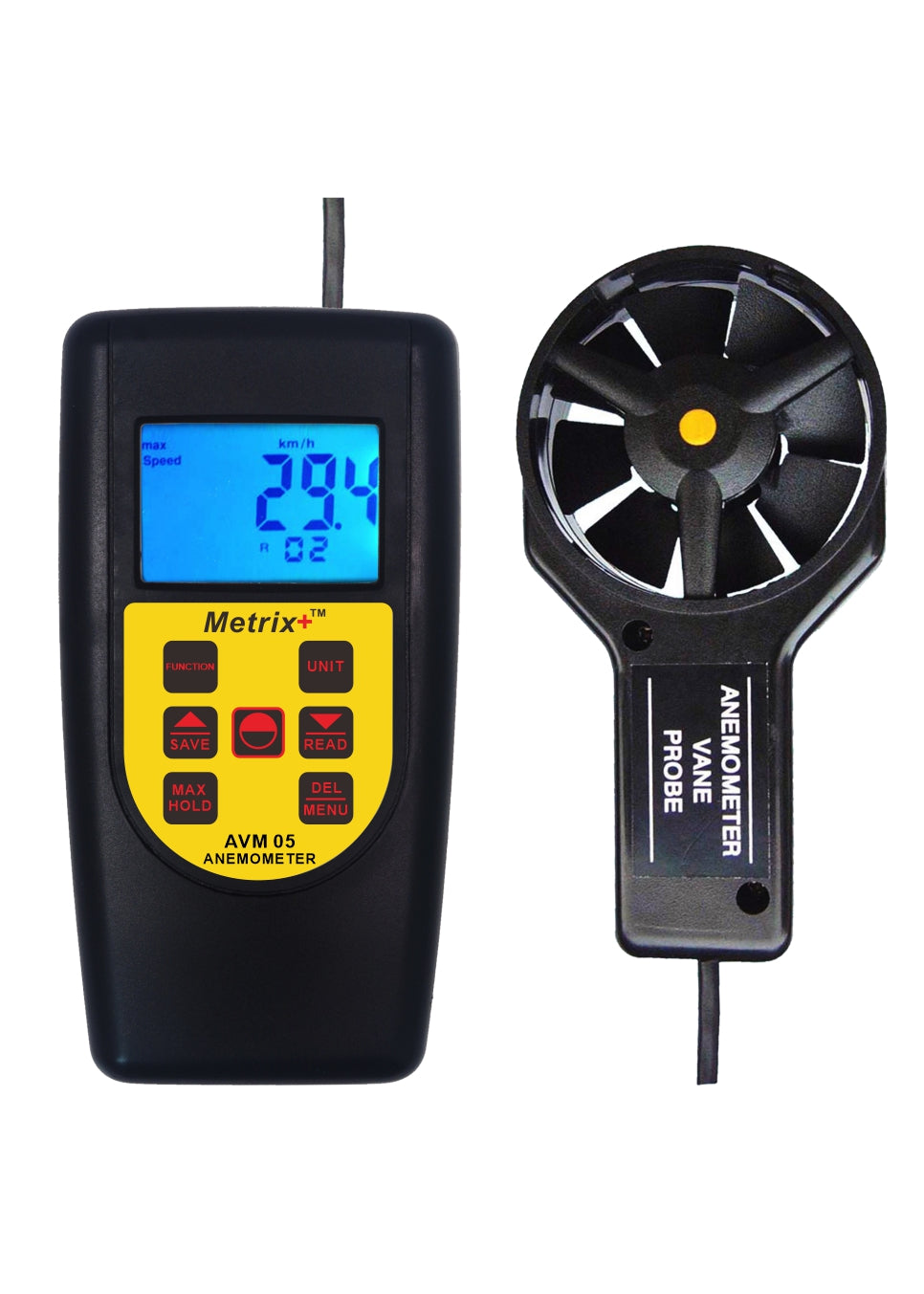

Metrix+ AVM 05 Digital Anemometer 0.4-45m/s Air Velocity Meter

(0)

Anemometer for measuring air velocity across multiple units with up to 45m/s range. Suitable for HVAC airflow balancing, duct checks, ventilation testing and general air speed measurement.

Features:

  • Built in temperature measurement.
  • A sensitive balance vane wheel rotates freely in response to air flow
  • Reading convertible to different measurement units.
  • Data memory for storing and recalling values later.
  • Data hold and auto power off.
  • Backlit display.
  • Type Digital Anemometer
Rs. 6,372.00 incl. taxes
In stock
In stock
Ready to work out of the box!

All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!

Warranty and returns?

All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.

Got Questions? Feel free to get in touch.

Technical Specifications:

Model Metrix+ AVM 05
Display 13mm 4-digits LCD
Measuring range Air velocity Range Resolution Accuracy
0.4 ~ 45.0m/s 0.1  +(2%n + 0.1m/s)
1.4 ~ 162.0km/h 0.1  +(2%n + 0.1km/h)
80 ~ 8860ft/min 1  +(2%n + 1ft/min)
0.8 ~ 88knots 0.1  +(2%n + 0.1knots)
Air flow 0 ~ 9999 CMM(cubic metres/min 0.001 ~ 1  +(2%n + 1m3/min)
0 ~ 9999 CFM(cubic feet/min) 0.001 ~ 1  +(2%n + 1ft3/min)
Beaufort scale 0 ~ 12 0.1 ±0.5
Wave height 0 ~ 14m 0.1 ±0.1
Air temperature 0 ~ 60°C / 32 ~ 140°F 0.1°C / 0.1°F 0.5°C / 0.9°F
Units Air velocity : m/s, ft/min, knots, km/hr; Air flow : CMM, CFM; Beaufort scale : force; Wave height : m; Air temperature : °C/°F
Data storage 24 groups
Sampling rate per second approx
Sensor Air velocity/flow sensor : conventional angled vane arms with low friction ball bearing
Temperaure sensor : Precision thermistor
Operating conditions 0 ~ 50°C; Humidity < 80%RH
Power 4 x 1.5V AAA(UM-4) batteries
Size and weight Main unit : 156 x 67 x 28mm; Sensor head : 72mm diameter; 260g(excl. batteries)
Standard accessories Main unit, manual, batteries



Applications:

Digital anemometers are vital instruments for HVAC system balancing, environmental monitoring, and wind energy assessments, used to accurately measure air velocity, airflow (CFM/CMM), and temperature. They are essential for professionals in ventilation and industrial hygiene to optimize air quality and efficiency in various confined and open environments.



Measuring Principle:

Digital anemometers, such as the common vane type, measure air speed by converting the rotational energy of a fan or impeller directly impacted by the airflow into an electrical pulse frequency via a sensor like a Hall effect sensor, which the circuitry then calculates and displays as air velocity or flow rate. Alternatively, hot-wire anemometers measure the cooling effect of airflow on a heated sensor element to determine velocity.
