225A+

(0)

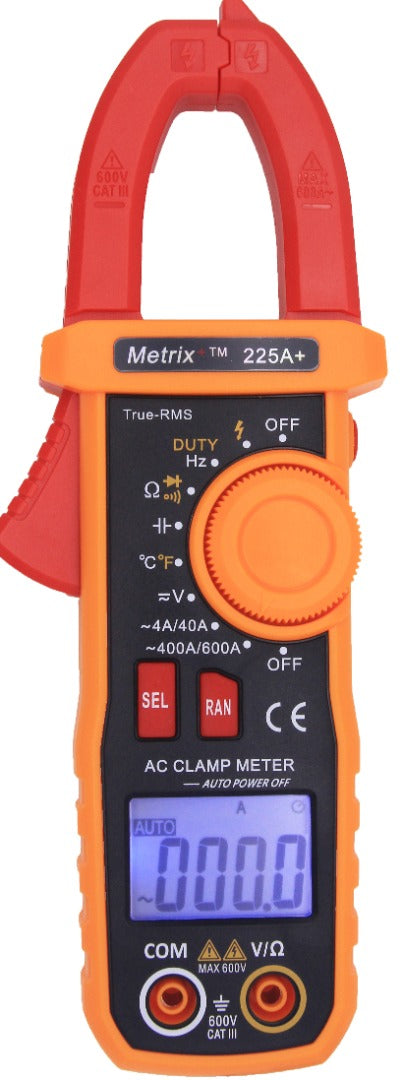

225A+ is a digital clamp meter to measure upto 600A AC (as True RMS values), with voltage, resistance, temperature, frequency, other parameters and backlit LCD.

Overview:

  • 600A True RMS
  • 27mm jaw
  • 3999 count
  • Auto + manual range
  • AC/DC V, AC A, Resistance, Capacitance, Frequency, Temperature
  • Continuity, Diode, NCV

Features:

  • Data Hold, Auto Power OFF
  • CATIII 600V
  • Auto negative polarity indication “-“
  • Low Battery indication
  • Overload Protection.
  • Type Digital Clamp Meter
Rs. 2,596.00 incl. taxes
In stock
In stock

Ready to work out of the box!

All our meters are delivered with essential accessories and easy-to-follow instructional manual. Unbox and start measuring with confidence!

Warranty and returns?

All our meters come with 12 month warranty against manufacturing defects. Please read our returns and refund policy for more information.

Got Questions? Feel free to get in touch.

Technical Specifications:

Model Metrix+ 225A+
LCD Display 3999 count, Backlight display
Range  Manual + Auto
DC Voltage 400m/4/40/400/600V   +(0.5% + 5)
AC Voltage 4/40/400/600V   +(1.2% + 5)
AC Ampere 4/40/400/600A   ±(2%  + 10)
Resistance 400/4k/40k/400k/4MΩ   ± (1% + 5)
40MΩ   ± (1.5% + 5)
Capacitance 10n/100n/1u/10u/100u/1000uF   + (3% + 5)
10mF   + (5% + 5)
Frequency 10/100/1k/10k/100k/1M/10M/40MHz   ± (0.5% + 3)
Duty Ratio(ACV Test) 10 ~ 90%   ± (0.5% + 3)
Temperature -50oC ~ 300oc   ± (1.2% + 4)
301oC ~ 1000oc   ± (1.9% + 15)
Jaw Diameter 27mm
Other Functionalities  Diode (LED), continuity buzzer, NCV, Low Battery indication, Data Hold, Auto Power OFF, overload protection
Battery AAA 1.5V x 2
Dimension & Weight 213×80×35mm, 230g(with battery)
Accessories Included Instruction Manual, Test Lead, Color Box, Battery



Applications:

Digital clamp meters are versatile tools used across various industries for non-contact measurement of AC/DC current in wires, making them ideal for troubleshooting electrical systems, motor diagnostics, and verifying load balances in commercial and residential settings. They allow technicians to safely and quickly test high current levels without interrupting the circuit


Measuring Principle:

The measuring principle of a digital clamp meter depends on its type: AC-only models use electromagnetic induction (current transformer effect) to measure current flow, while AC/DC models (Hall Effect) measure the strength of the magnetic field surrounding the conductor. Both methods allow for non-contact and safe current measurement without breaking the circuit.
